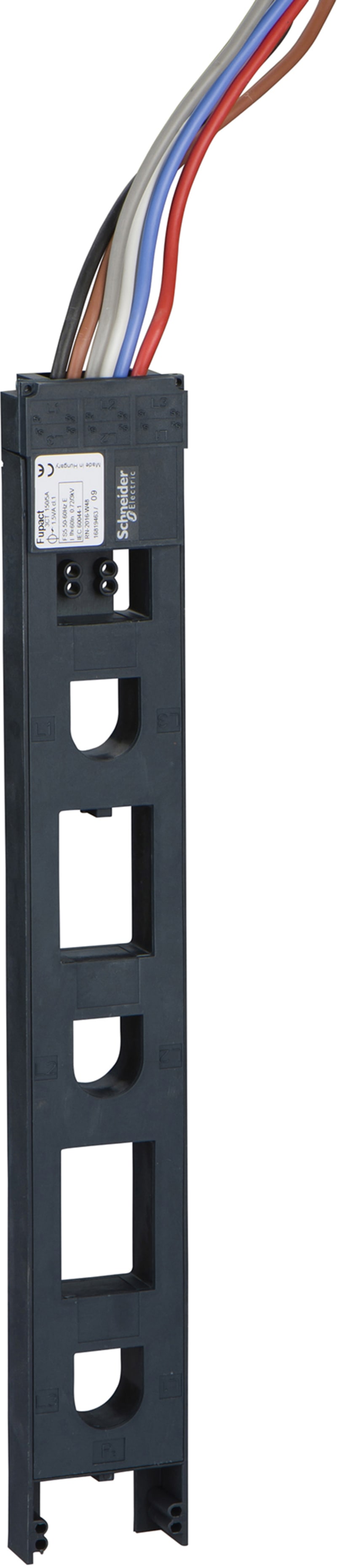

Schneider Electric Single block with 3 current transformers, FuPacT ISFL160, 3 poles, class 1, 150/5A, 1.5VA LV480881

Schneider Electric LV480881 3 CT 150/5A-kl1-2,5VA ISFL160.

Manufacturer part number (MPN)

LV480881

EAN / GTIN

3606480341397

Sales unit

pcs

Package quantity

20 pcs

Range of product

ISFL160

Range

FuPacT

Product or component type

Block of 3 current transformers

Device application

Power supply

Range compatibility

FuPacT FuPacT ISFL ISFL160 fuse-switch disconnector

Poles description

3P

Current transformer ratio

150/5 A

Power consumption in VA

1.5 VA

Accessory / separate part category

Measurement accessory

Current transformer type

Measurement class 1

Maximum safety factor

5

[Ue] rated operational voltage

800 V AC 50/60 Hz

IP degree of protection

IP20

Standards

VDE 0414; BS 7626; IEC 60044-1

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…80 °C

Height

328.5 mm

Width

49.5 mm

Depth

30 mm

Number of Units in Package 1

1

Number of Units in Package 2

20

Warranty (in months)

18

Power consumption

1.5 W

Model

3-phase current converter set

Rated primary current

150 A

Rated secondary current

5 A

Rated secondary apparent power

1.5 VA

Accuracy class

1

Overcurrent limiting factor

FS 5

Calibrated

Yes

With contact protection

Yes

Snap mounting

Yes

With copper rail

No

Number of primary inputs

3

Secondary connection

Plug-in connection

Country of origin

Germany

HS Code

8504.31
