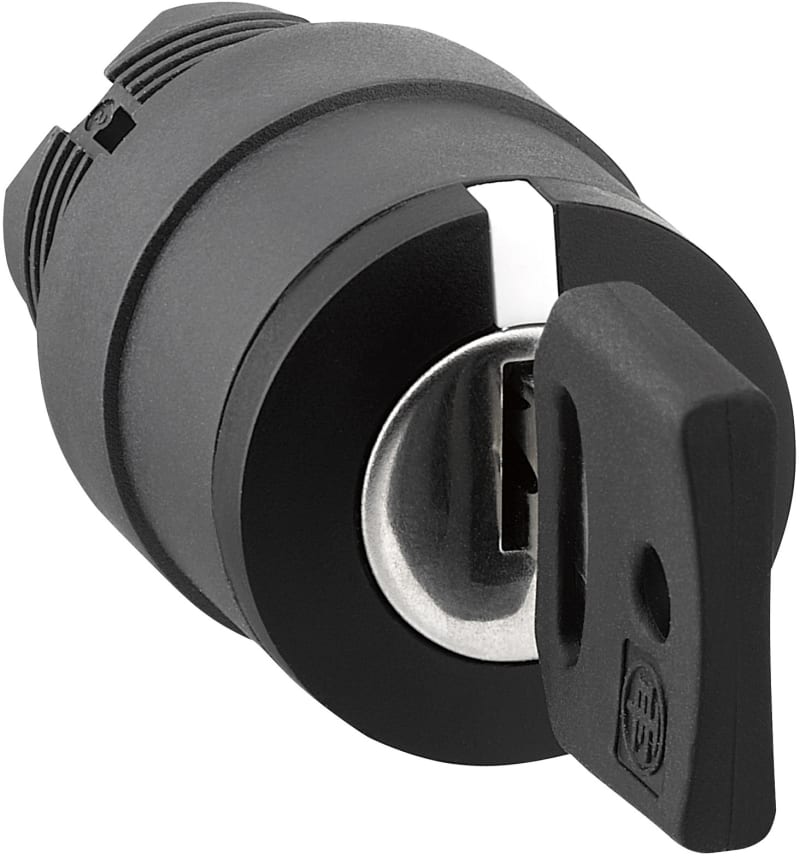

Key switch 3-Pos spring-return from R/L (ZB5AG7)

Schneider Electric ZB5AG7 Key grip 3 POSITIONS Return From H/V.

Manufacturer part number (MPN)

ZB5AG7

EAN / GTIN

3389110905854

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Head for key selector switch

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

To centre spring return

Operator profile

Black key switch

Operator position information

3 positions +/- 45°

Type of keylock

Key 455

Key withdrawal position

Center

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

72 mm

Product weight

0.057 kg

Mechanical durability

1000000 cycles

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Electrical composition code

C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C3 for <6 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-5-1; JIS C8201-5-1; IEC 60947-1; UL 508; IEC 60947-5-4; CSA C22.2 No 14; JIS C8201-1

Product certifications

DNV; CSA; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.700 cm

Package 1 Width

5.700 cm

Package 1 Length

9.200 cm

Package 1 Weight

68.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

150

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

10.589 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

3

Suitable for lighting

No

Spring-return

Yes

Colour front ring

Black

Degree of protection (IP), front side

IP66

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of control element

Key

Switching function latching

No

Degree of protection (NEMA)

13

HS Code

8538.90
