Product Description

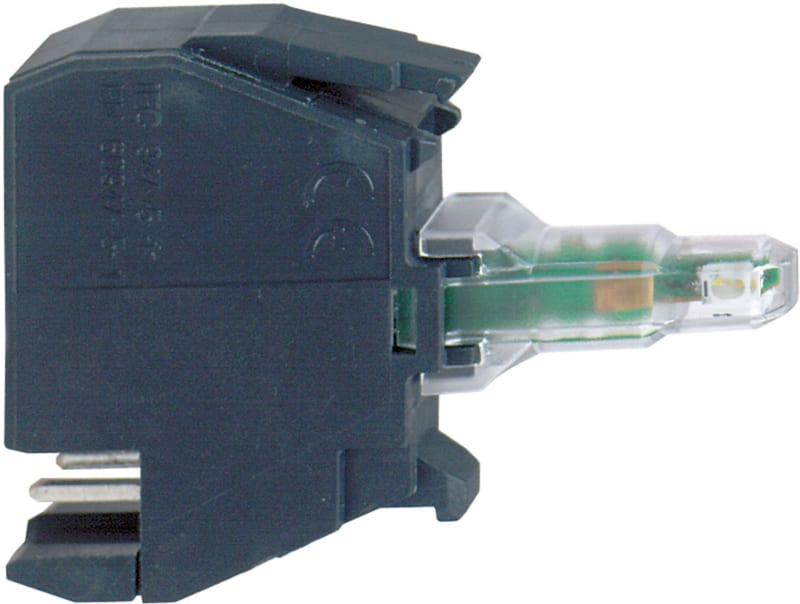

Schneider Electric ZBVM14 Signallamp holder White 220V LED Plug.
Technical Specifications
- Manufacturer part number (MPN)
- ZBVM14
- EAN / GTIN
- 3389110090284
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Voltage
- 220 V
- Range of product
- Harmony XB4; Harmony XB5
- Product or component type
- Light block
- Device short name
- ZBV
- Sale per indivisible quantity
- 5
- Connections - terminals
- Plug-in connector
- Signalling type
- Steady
- Light source
- Universal LED
- Bulb base
- Integral LED
- Light block supply
- Direct
- Light source colour
- White
- [Us] rated supply voltage
- 230...240 V AC at 50/60 Hz
- Product weight
- 0.016 kg
- Supply voltage limits
- 195…264 V AC
- Current consumption
- 19 mA
- Service life
- 100000 h at rated voltage and 25 °C
- Surge withstand
- 1 kV conforming to IEC 61000-4-5
- Mounting of block
- Front mounting
- Electrical composition code
- M1; M2; M3; M4; M5; M6; M10; MF1; P1; P2; PF1
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20 conforming to IEC 60529
- Standards
- IEC 60947-1; CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-5-4; IEC 60947-5-1; UL 508; IEC 60947-5-5; JIS C8201-1
- Resistance to fast transients
- 2 kV conforming to IEC 61000-4-4
- Resistance to electromagnetic fields
- 10 V/m conforming to IEC 61000-4-3
- Resistance to electrostatic discharge
- 6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
- Electromagnetic emission
- Class B conforming to IEC 55011
- Supply voltage
- 230...240 V
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 80
- Country of origin
- FR
- Warranty (in months)
- 18
- Transformer integrated
- No
- With integrated voltage decreasing resistor
- No
- With integrated diode
- Yes
- Colour light source
- White
- Lamp type
- LED
- Type of fastening
- Front fastening
- With light source
- Yes
- Rated voltage Ue at AC 50 Hz
- 230 V
- Rated voltage Ue at AC 60 Hz
- 230 V
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3389110090284
- SAP 1000062645
- Code 8923373
