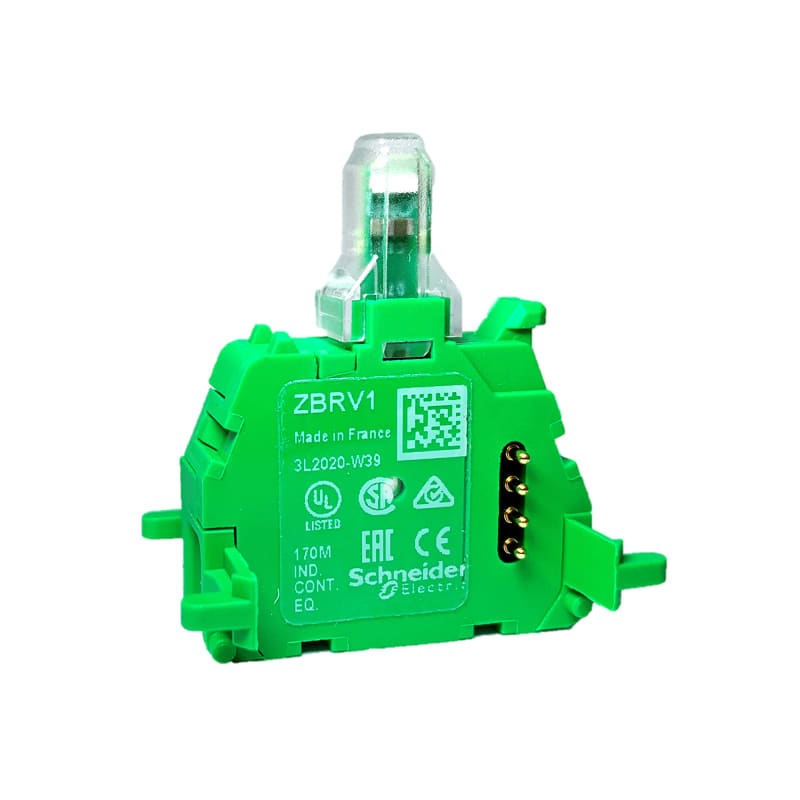

Light Module for tilbakemelding

Schneider Electric ZBRV1 Light Module with battery for ZBRT1 and ZBRT2 for visuell tilbakemelding from wireless mottaker.

Manufacturer part number (MPN)

ZBRV1

EAN / GTIN

3606482035065

Sales unit

pcs

Package quantity

75 pcs

Range of product

Harmony XB5R

Product or component type

Visual feedback

Device short name

XB5R

Light source colour

White

Product compatibility

ZBRRA - receiver (V2.2 and above); ZBRRC - receiver (V2.2 and above); ZBRRD - receiver (V2.2 and above); ZBRA1 - antenna (V3.3 and above); ZBRN1 - wireless access point (V3.32 and above); ZBRN2 - wireless access point (V3.32 and above)

Sale per indivisible quantity

1

[Us] rated supply voltage

3 V with battery

Signalling type

Blinking

Light source

Protected LED

Bulb base

Integral LED

Light block supply

Direct

Embedding depth

42 mm

CAD overall height

37.4 mm

CAD overall width

24.2 mm

CAD overall depth

39.6 mm

Product weight

0.009 kg

Standards

IEC 60947-1; IEC 60947-5-1

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…55 °C

Relative humidity

95 % at 0…55 °C without condensation

Mechanical durability

50000 cycles

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 11…500 Hz) conforming to IEC 60068-2-6; +/- 10 mm (f= 2…11 Hz) conforming to IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 3 V/m conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 3 V/m (1000...6000 MHz) conforming to IEC 61000-4-3

Product certifications

CSA; UL listed; EAC

Number of Units in Package 1

1

Number of Units in Package 2

75

Country of origin

FR

Warranty (in months)

18

Radio frequency

2700 MHz

Rolling code system

No

Range

2 m

Flush-mounted radio transmitter

No

Surface mounted radio transmitter

No

With radio coding device

Yes

Keyboard protection cover

No

HS Code

8526.92

• EAN 3606482035065
• SAP 1200580084
• Code 82943648
