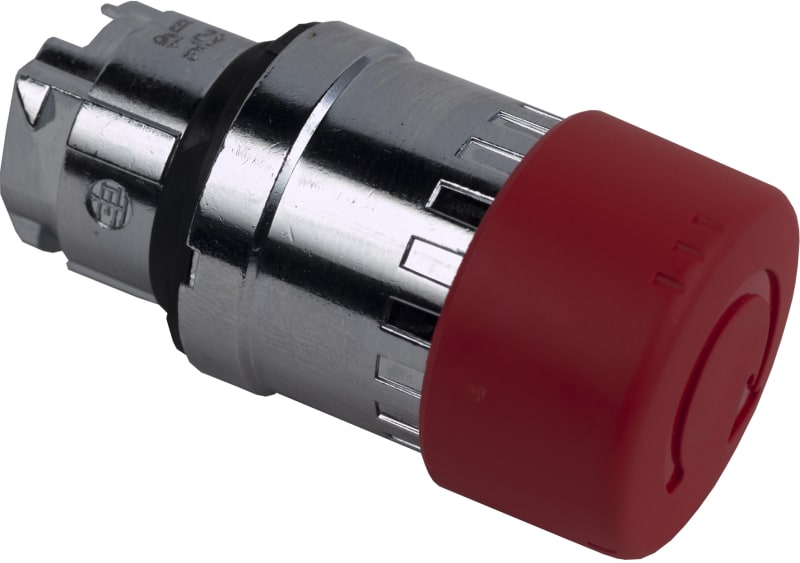

Emergency Stop Head Push/turn RED Ø30 (ZB4BS834)

Schneider Electric ZB4BS834 Emergency stop Push/turn Red Ø30mm.

Manufacturer part number (MPN)

ZB4BS834

EAN / GTIN

3389110888850

Sales unit

pcs

Package quantity

100 pcs

Diameter

30 mm

Range of product

Harmony XB4

Product or component type

Head for emergency switching off push-button

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

trigger action and mechanical latching

Reset

Turn to release

Operator profile

Red mushroom Ø 30 mm, unmarked

Head type

Standard

CAD overall width

30 mm

CAD overall height

30 mm

CAD overall depth

57 mm

Product weight

0.068 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

300000 cycles

Electrical composition code

C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; C10 for <4 contacts using single and double blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class I conforming to IEC 61140

IP degree of protection

IP66 conforming to IEC 60529; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60204-1; JIS C8201-5-1; GB 14048.5; IEC 60947-1; IEC 60947-5-4; CSA C22.2 No 14; IEC 60947-5-1; ISO 13850; IEC 60364-5-53; UL 508; IEC 60947-5-5; JIS C8201-1

Product certifications

DNV; UL listed; LROS (Lloyds register of shipping); BV; CSA

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

100

Number of Units in Package 3

800

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red

Suitable for lighting

No

Unlocking method

Turn-release

Spring-return

No

Diameter cap

30 mm

Suitable for emergency stop

Yes

Type of button

High

Colour front ring

Chrome

With lighting

No

Degree of protection (IP)

IP66

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

Yes

HS Code

8538.90

• EAN 3389110888850
• SAP 1000008495
• Code 869522
