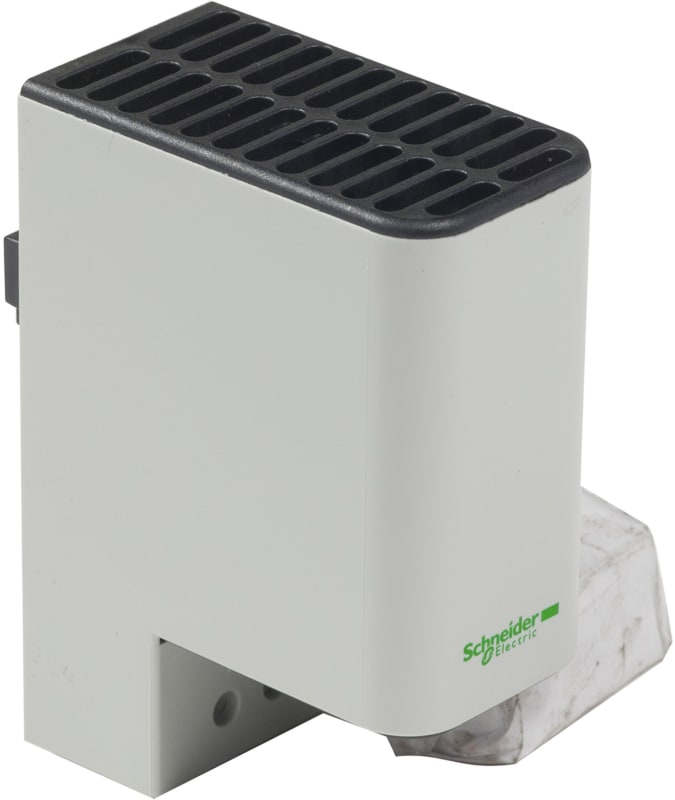

Schneider Electric ClimaSys PTC heating resistance 10W,110-250V insulate NSYCR10WU2C
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCR10WU2C Heating element 10W 110-250V AC, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCR10WU2C
- EAN / GTIN
- 3606480152252
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Voltage
- 110-250 V
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater
- Power range
- 10 W
- Input voltage
- 120...240 V AC 50/60 Hz
- Electrical connection
- 2 screw terminals 2.5 mm²
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Electrical insulation class
- Class II
- Product certifications
- VDE; UL
- Material
- Body: extruded aluminium; Cover: plastic
- Height
- External: 98 mm
- Width
- External: 38 mm
- Depth
- External : 75 mm
- Condition of use
- Electrical protection is needed; Air sealed enclosure; Heaters must be installed with a thermal controller
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 500
- Country of origin
- DE
- Warranty (in months)
- 18
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 10 W
- Operating voltage AC 50 Hz
- 110–250 V
- Operating voltage AC 60 Hz
- 110–250 V
- Continuous heating power at 10 °C
- 10 W
Standards & Compliance
- HS Code
- 8516.29
Cross References
- EAN 3606480152252
- SAP 1000089008
- Code 8837948
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 185A, standard version, 100…250V wide band AC/DC coil LC1G185KUEN
Schneider Electric
LED 24-120V AC/DC White
ZBVBG1
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 150A, standard version, 100…250V wide band AC/DC coil LC1G150KUEN
Schneider Electric
Exxact 1*FRAME Primo ANTR
WDE003101
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 1-1.6 A, thermal magnetic, screw clamp terminals GV2P06
Schneider Electric
Cover (VZ8)
Schneider Electric
Schneider Electric NSYS3D6830P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 600X800X300MM, IP66, IK10
Schneider Electric

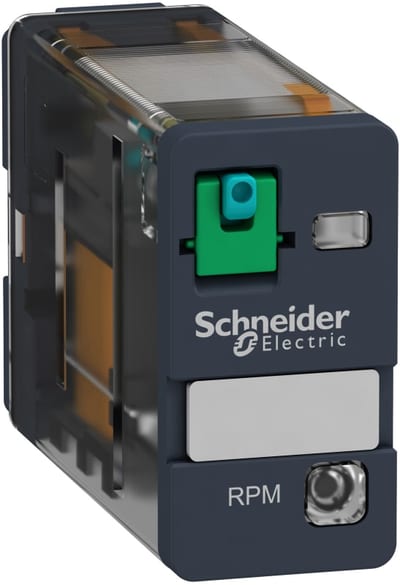

Schneider Electric Power plug-in relay, 15 A, 1 CO, with LED, 24 V DC RPM12BD
