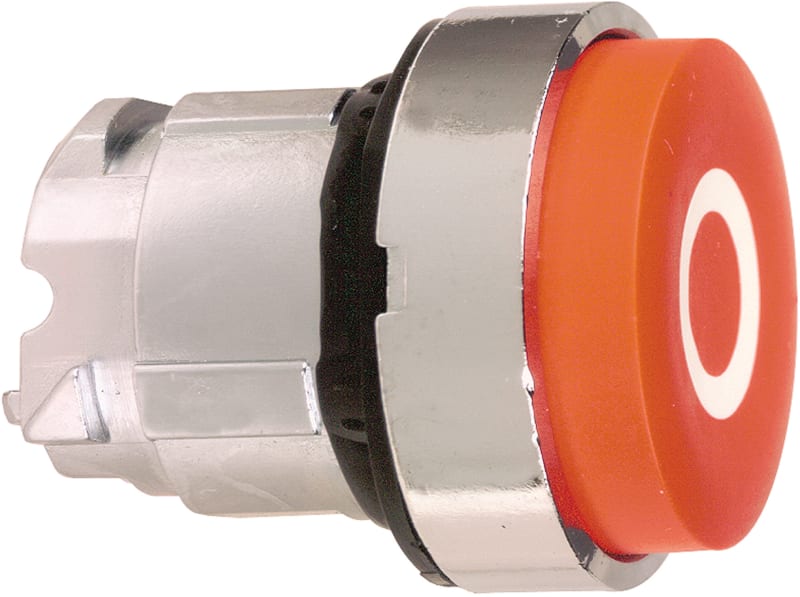

Schneider Electric Harmony ZB4BL432 Projecting Push-Button Head, Red, Marked O

Schneider Electric ZB4BL432 is a Harmony XB4 push-button head with a projecting red operator marked O (off) in white. The 22.5 mm chromium-plated metal bezel mounts through a standard cutout and returns by spring action. Rated to IP66/IP67/IP69/IP69K, IK06, with 10,000,000-cycle mechanical durability; certifications include BV, CSA, DNV, LROS and UL. Combine with a compatible XB4 contact block to complete the assembly.

Manufacturer part number (MPN)

ZB4BL432

EAN / GTIN

3389110887839

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for non-illuminated push-button

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Red projecting, O (white)

Cap/operator or lens colour

Red

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

33 mm

Mechanical durability

10000000 cycles

Electrical composition code

C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-5-5; JIS C8201-5-1; UL 508; IEC 60947-1; CSA C22.2 No 14; IEC 60947-5-4; IEC 60947-5-1; JIS C8201-1

Product certifications

BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

300

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red/white

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Labelled

Yes

Type of button

High

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90
