Lock insert, inner door 20X10
Pricing
Request a quote
We reply within 24 hours
Product Description

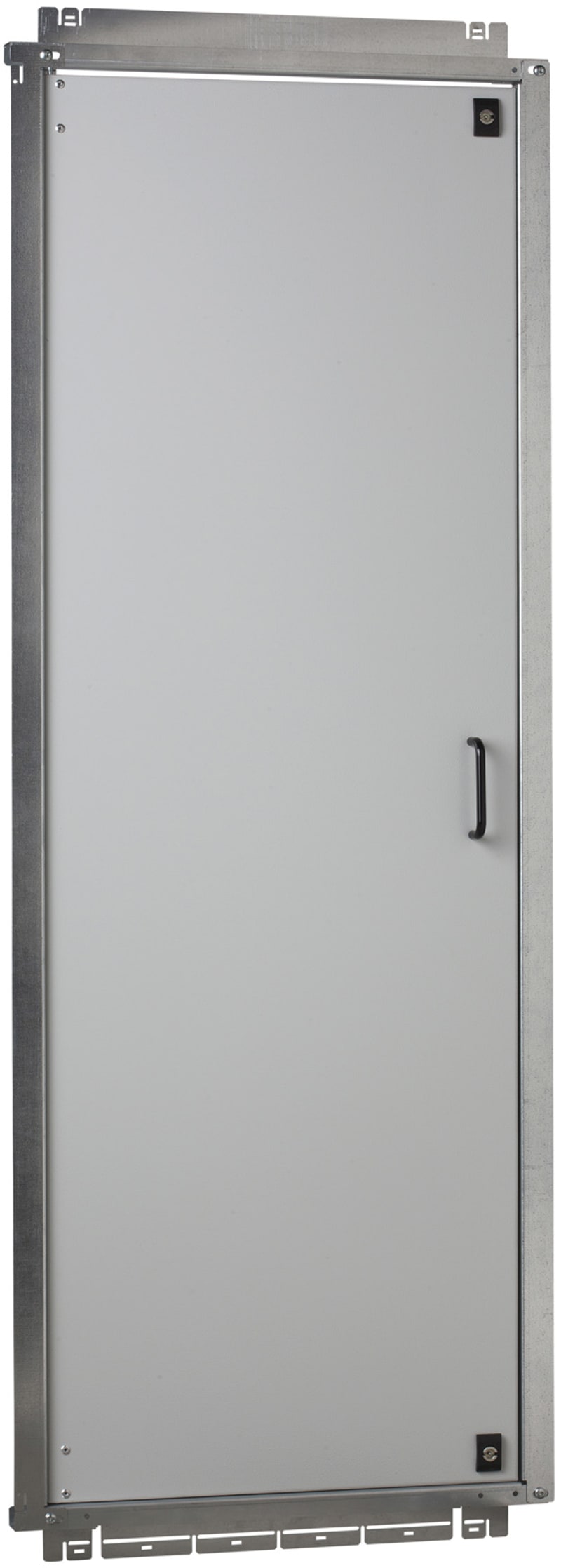

Schneider Electric NSYID2010 Spacial SF/SM - Inner door - 2000x1000 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYID2010
- EAN / GTIN
- 3606485127064
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- -
- Mounting location
- Front
- Range compatibility
- PanelSeT SFX; PanelSeT SF; PanelSeT SM
- Device composition
- 1 door; 2 lock with 3 mm double bar insert; 1 handle; fixing elements
- Quantity per set
- Set of 1
- Material
- Sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 3 mm double bar
- Number of locks
- 2
- Adjustment
- Adjustable in depth every 25 mm
- Door type
- Internal plain
- Door opening side
- Reversible
- Maximum load
- 15 kg/m²
- Height
- Nominal: 2000 mm; Real: 1865 mm
- Width
- Nominal: 1000 mm; Real: 900 mm
- Depth
- 19.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 100.000 cm
- Package 1 Length
- 195.000 cm
- Package 1 Weight
- 36.600 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 10
- Package 2 Height
- 63.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 398.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Inner door
- EMC-version
- No
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485127064
- SAP 1000089154
- Code 8838678
Product Documentation
More from Schneider Electric
Schneider Electric
Floor-Standing Cabinet 20X8X5 U.PL.
NSYSM20850
Schneider Electric
GALV.MOUNTING Plate 250X600
NSYSPMP2560
Schneider Electric
Glassdoor SFN/SM 2000X800
NSYSFND208T
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 12A, 208V AC 50/60Hz coil, snap-in terminals LC1D12ALE7
Schneider Electric
Floor-Standing Cabinet 20X16X6 U.PL.
NSYSM2016602D
Schneider Electric
Push-button flush red (ZB5FH04)
Schneider Electric
Push-button, flush, red, raised (ZB5FH4)
Schneider Electric

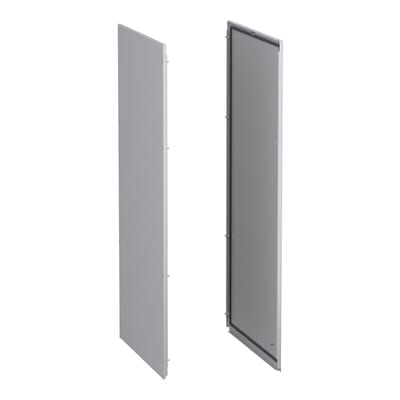

Side Plates SFN 1400X800
