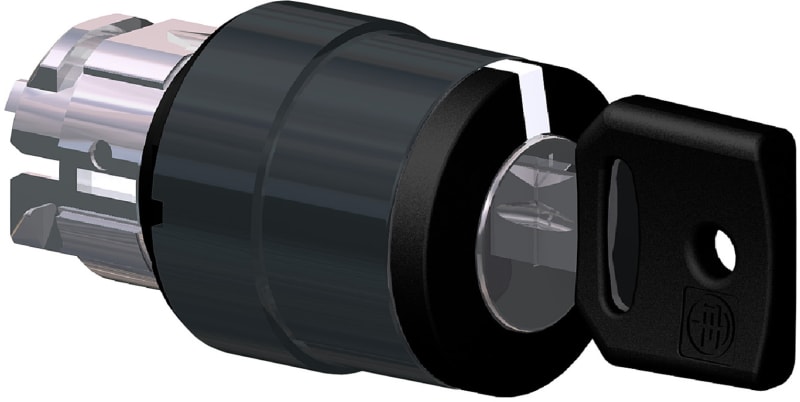

Schneider Electric Harmony XB4 Key Selector Switch Head, 3 Positions, Black Bezel

Schneider Electric ZB4BG07 is a Harmony XB4 key-operated selector switch head for 22 mm panel mounting. Three stay-put positions at plus/minus 45 degrees, key 455, black metal bezel. Round shape; IP66/IP67/IP69/IP69K when correctly mounted.

Manufacturer part number (MPN)

ZB4BG07

EAN / GTIN

3389110829815

Sales unit

pcs

Range of product

Harmony XB4

Product or component type

Head for key selector switch

Device short name

ZB4

Bezel material

Black metal

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Operator profile

Black key switch

Type of operator

Stay put

Operator position information

3 positions +/- 45°

Type of keylock

Key 455

Key withdrawal position

In any position

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

72 mm

Product weight

0.098 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

1000000 cycles

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

Standards

EN/IEC 60947-5-4; UL 508; CSA C22.2 No 14; EN/IEC 60947-1; EN/IEC 60947-5-5; GB 14048.5; EN/IEC 60947-5-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.8 cm

Package 1 Width

3.4 cm

Package 1 Length

5.4 cm

Package 1 Weight

69.0 g

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

3

Suitable for lighting

No

Spring-return

Yes

Colour front ring

Black

Degree of protection (IP), front side

IP66

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Key

Switching function latching

No

HS Code

8538.90

• EAN 3389110829815
• SAP 1000017087
• Code 8129988
