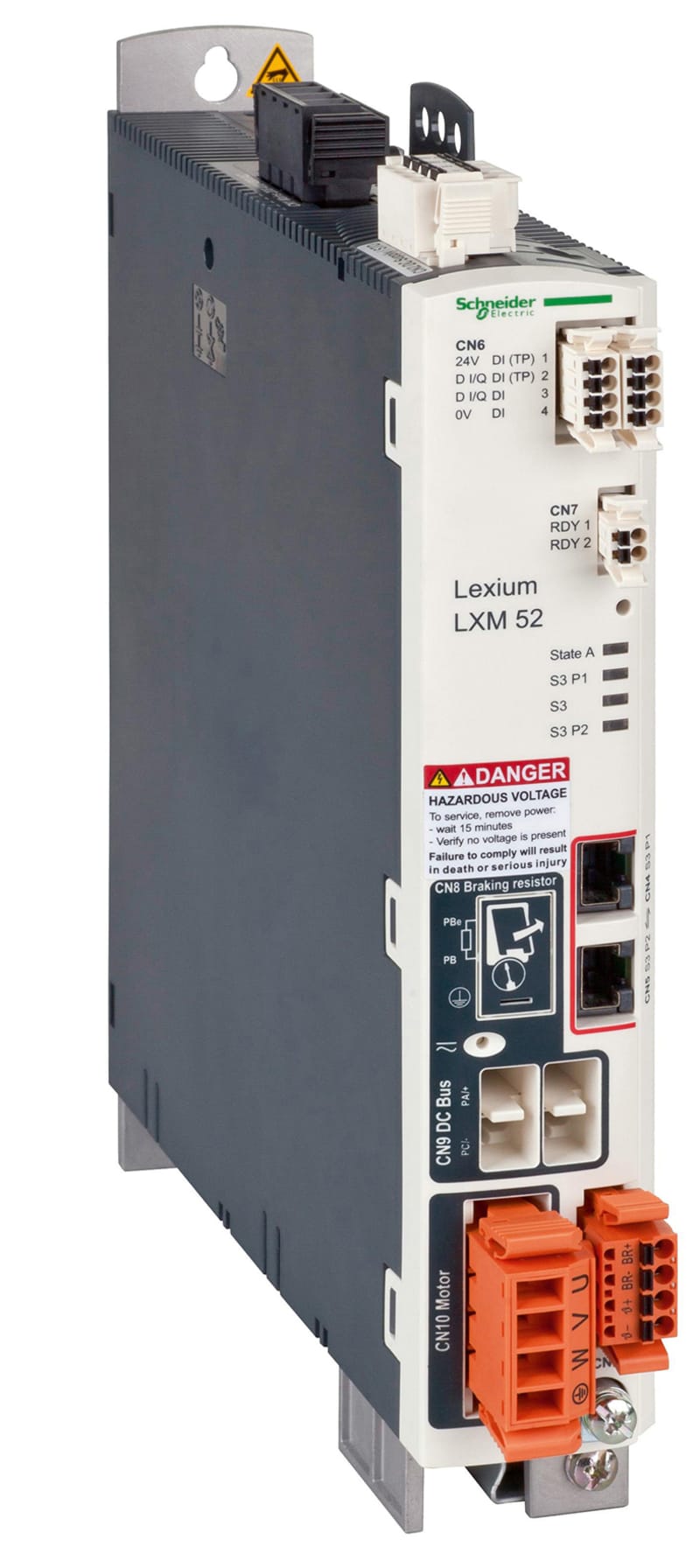

Schneider Electric LXM52 single drive 3A/12A LXM52DD12C41000

Schneider Electric LXM52DD12C41000 Pack drive 3 Motion driver 3/12A continuous/topplast 208-480V.

Manufacturer part number (MPN)

LXM52DD12C41000

EAN / GTIN

3606480517297

HS code

8504.40

Sales unit

pcs

Package quantity

3 pcs

Voltage

480 V

Range of product

PacDrive 3

Device short name

LXM 52

Product or component type

Single drive

Product compatibility

Servo motor SH3 (55 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (70 mm, 1 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (70 mm, 2 motor stacks)optimized in terms of torque and speed; Servo motor SH3 (70 mm, 3 motor stacks)optimized in terms of high torque; Servo motor SH3 (100 mm, 1 motor stacks)optimized in terms of high torque; Servo motor SH3 (100 mm, 2 motor stacks)optimized in terms of high torque; Servo motor MH3 (70 mm, 2 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (70 mm, 3 motor stacks)optimized in terms of torque and speed; Servo motor MH3 (100 mm, 1 motor stacks)optimized in terms of torque and speed; Servo motor SHS (100 mm, 1 motor stacks)optimized in terms of torque and speed

Component name

LXM52

Network number of phases

Three phase

[Us] rated supply voltage

208...480 V - 15...10 %

Supply frequency

50...60 Hz - 5...5 %

Continuous output current

3 A at 8 kHz

Output current 3s peak

12 A

Continuous power

1.6 kW

Nominal power

0.9 kW

Switching frequency

8 kHz

Overvoltage category

III

Electrical connection

Terminal, clamping capacity: 0.75...5.3 mm², 18 AWG...10 AWG (CN1); Terminal, clamping capacity: 0.75...5.3 mm², 18 AWG...10 AWG (CN10)

Tightening torque

CN1: 0.68 N.m; CN10: 0.68 N.m

Number of inputs

4 digital; 4 touch probe

Discrete input voltage

24 V DC

Number of outputs

2 digital

Discrete output voltage

24 V DC

Contact bounce time

> 1 ms for compliment of STO_A, compliment of STO_B

Communication interface

SERCOS III, integrated

Width

48 mm

Height

270 mm

Depth

217 mm

Product weight

1.8 kg

Standards

IEC 61800-5-1; UL 508C; IEC 61800-3

Product certifications

UL; CE

IP degree of protection

IP20 conforming to IEC 60721-3-3

Vibration resistance

10 m/s² conforming to IEC 60721-3-3

Shock resistance

100 m/s² conforming to IEC 60721-3-3

Pollution degree

2

Environmental characteristic

3K3 conforming to IEC 60721-3-3

Relative humidity

5…95 %

Ambient air temperature for operation

0…50 °C

Country of origin

ID

Warranty (in months)

18

HS Code

8504.40

• EAN 3606480517297
• SAP 1200179459
• Code 82116147
