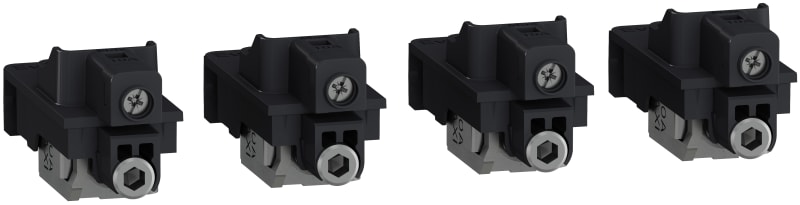

Everlinklemme NSXm 4 pcs

Schneider Electric LV426971 — EverLink connector with control wire terminal for 4P.

Manufacturer part number (MPN)

LV426971

EAN / GTIN

3606481156310

Sales unit

pcs

Package quantity

4 pcs

Range compatibility

ComPact ComPact NSXm

Product or component type

Cable connector

Accessory / separate part type

Connection accessories

Poles description

4P

Quantity per set

Set of 4

Location of connection

Downstream; Upstream

[In] rated current

16…160 A for copper; 16…100 A for aluminium

Conductor material

Steel

Connections - terminals

Screw terminal - 1 cable(s) 2.5…95 mm² - solid; Screw terminal2.5…95 mm² - stranded; Screw terminal2.5…70 mm² - fine stranded

Control wire terminal

10 A for 0.5…6 mm² (20 AWG...10 AWG), stranded or fine stranded; 10 A for 1.5…6 mm² (20 AWG...10 AWG), rigid

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.500 cm

Package 1 Width

14.000 cm

Package 1 Length

22.500 cm

Package 1 Weight

171.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

50

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

8.550 kg

Country of origin

PL

Warranty (in months)

18

Type of accessory/spare part

Connector

Accessory

Yes

Spare part

No

HS Code

8536.90

• EAN 3606481156310
• SAP 1200323283
• Code 82306366
