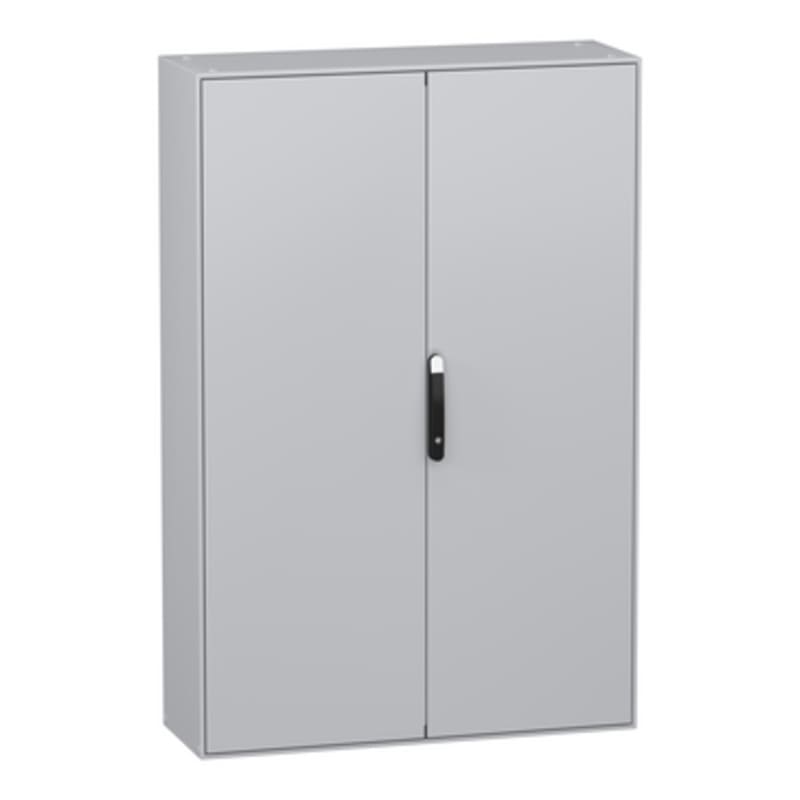

Schneider Electric NSYSM1812402DP PanelSeT SM compact enclosure with mounting plate - 1800X1200X400 mm
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYSM1812402DP PanelSeT SM compact enclosure with mounting plate - 1800X1200X400 mm is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Range: PanelSeT; Product name: PanelSeT SM; Product or component type: Compact enclosure; Application: Multi-purpose; Installation accessory type: Floor-standing.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSM1812402DP
- EAN / GTIN
- 3606485120270
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT SM
- Product or component type
- Compact enclosure
- Application
- Multi-purpose
- Installation accessory type
- Floor-standing
- Device composition
- 1 body; 2 door; 2 cable gland plate; 1 locking system with handle: door; 1 blocking system: left door; 4 mounting plate bracket; 1 mounting plate
- Removable parts
- Door by screws hinge; Mounting plate by screws mounting plate bracket; Mounting plate bracket by screws
- Enclosure nominal height
- 1800 mm
- Enclosure nominal width
- 1200 mm
- Enclosure nominal depth
- 400 mm
- Number of doors
- Front: 2 door(s)
- Door opening side
- Left (120 °); Right (120 °)
- Door type
- Plain
- Lock type
- 4 points lock, handle with 5 mm double bar insert
- Body type
- Front part forming a rigid frame with welded corners; Single piece body with welded rear panel
- Mounting plate description
- Plain
- Type of gland plate
- Standard
- cable entry
- 1 entry
- Material
- Mounting plate: galvanised steel; Body: sheet steel; Door: sheet steel; Hinge: zamak
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Accessibility for operation
- Front
- Product weight
- 149.5 kg
- Standards
- IEC 62208
- Product certifications
- UL; BV; DNV
- IK degree of protection
- IK10 conforming to IEC 62262; conforming to UL; conforming to cUL
- IP degree of protection
- IP55 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 193.000 cm
- Package 1 Width
- 125.000 cm
- Package 1 Length
- 49.000 cm
- Package 1 Weight
- 151.000 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 2
- Package 2 Height
- 193.000 cm
- Package 2 Width
- 125.000 cm
- Package 2 Length
- 98.000 cm
- Package 2 Weight
- 302.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 1200 mm
- Height
- 1800 mm
- Depth
- 400 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 4900 N
- Max. permitted load of the door(s) according to IEC 62208
- 588 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606485120270
- SAP 1000090018
- Code 8845494
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Aluminium Wall Console KV 35mm for Cable Trunking
5583014
Schneider Electric
Schneider Electric LAD9SD3 Kit for assembling star delta starters, for 3 x contactors LC1D40A-D80A, with time delay block
Schneider Electric
Screw Clip TCS-C5M 22-26 White
2191514
Schneider Electric
Key switch 2-Pos spring-return from R 1NO
XB4BG61
Schneider Electric
Front Connection Cover NS1600 vertical
LVS04851
Schneider Electric
4OF ON/OFF MTZ2/3/NW reserve
LV864922SP
Schneider Electric

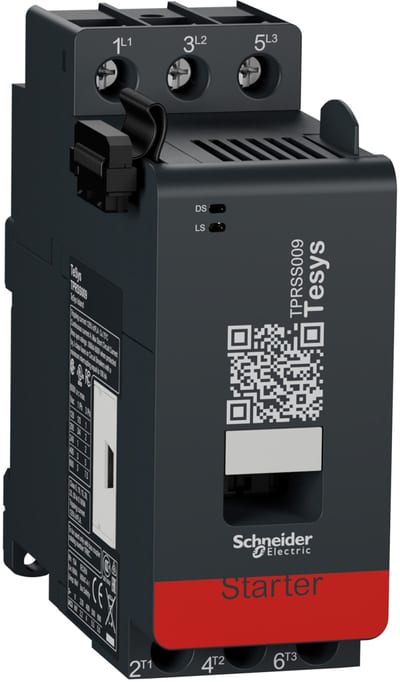

Schneider Electric Direct online SIL starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp TPRSS009
Schneider Electric

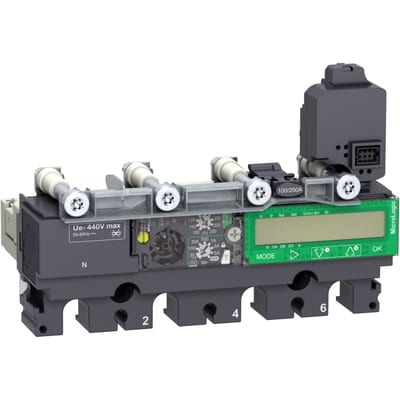

Schneider Electric Trip unit MicroLogic Vigi 7.2E ALUMINIUM, ComPacT NSX100-250, 4P, basic protections, earth leakage alarm, energy meter, 100A C1047A100
