4OF ON/OFF MTZ2/3/NW reserve
Pricing
Request a quote
We reply within 24 hours
Product Description

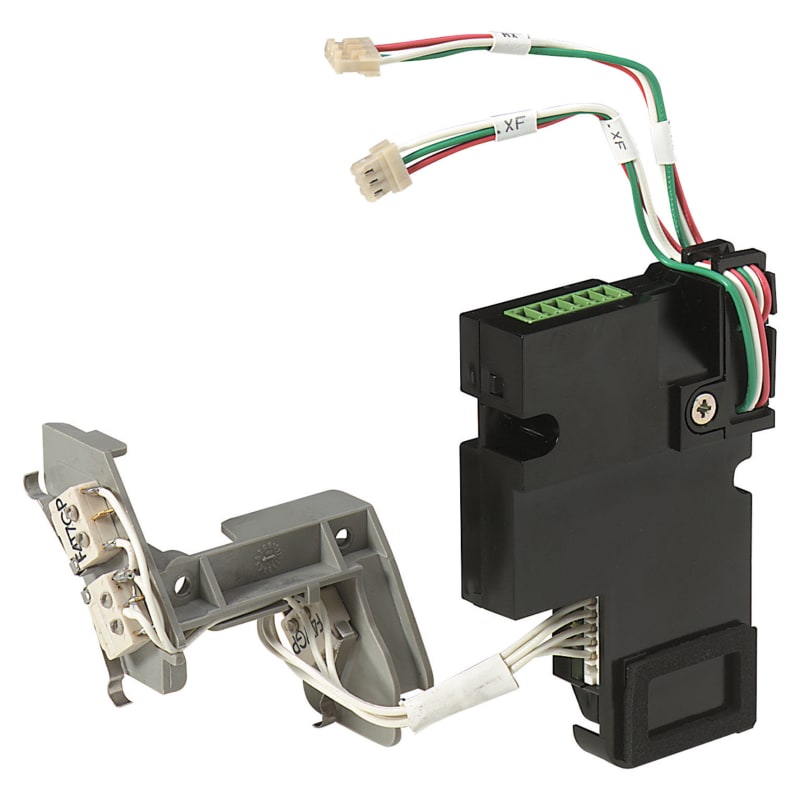

Schneider Electric LV864922SP — ON/OFF indication contact block 4 OF - 6 A/240VAC - for MTZ2/MTZ3/NW - spare par.
Technical Specifications
- Manufacturer part number (MPN)
- LV864922SP EAN / GTIN: 3606481187987 Sales unit: pcs Package quantity: 26 pcs Range: MasterPacT Device short name: 4 OF Product or component type: Auxiliary contact block Device application: Control Range compatibility: MasterPact MasterPact MTZ2; MasterPact MasterPact MTZ3 Auxiliary contacts type: Standard Signal contacts composition: 4 NO/NC mounting mode: Fixed; Drawout Breaking capacity (A): AC-12: 10 A at 240/380 V AC 50/60 Hz conforming to EN/IEC 60947-2; AC-12: 10 A at 480 V AC 50/60 Hz conforming to EN/IEC 60947-2; AC-12: 6 A at 690 V AC 50/60 Hz conforming to EN/IEC 60947-2; DC-12: 10 A at 24/48 V DC conforming to EN/IEC 60947-2; DC-12: 10 A at 125 V DC conforming to EN/IEC 60947-2; DC-12: 3 A at 250 V DC conforming to EN/IEC 60947-2; 8 A at 480 V AC 50/60 Hz conforming to UL 489; 6 A at 600 V AC 50/60 Hz conforming to UL 489; 6 A at 250 V DC conforming to UL 489 minimum load: 2 mA at 15 V Provided equipment: 1 instruction sheet Offer type: Spare part Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 5.000 cm Package 1 Width: 5.000 cm Package 1 Length: 5.000 cm Package 1 Weight: 104.800 g Unit Type of Package 2: S04 Number of Units in Package 2: 26 Package 2 Height: 30.000 cm Package 2 Width: 40.000 cm Package 2 Length: 60.000 cm Package 2 Weight: 3.425 kg Country of origin: FR Warranty (in months): 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481187987
- SAP 1200287092
- Code 82255127
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Direct online SIL starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp TPRSS009
Schneider Electric
Schneider Electric Trip unit MicroLogic Vigi 7.2E ALUMINIUM, ComPacT NSX100-250, 4P, basic protections, earth leakage alarm, energy meter, 100A C1047A100
Schneider Electric
Schneider Electric NSYSM18840P PanelSeT SM compact enclosure with mounting plate - 1800X800X400 mm
Schneider Electric
Schneider Electric OptiLine 18×45 mm end piece PC/ABS pure white
ISM14504P
Schneider Electric
Schneider Electric Trip unit TM250DC, ComPacT NSX250 DC, 3 poles, thermal magnetic protections, 250A rating C253TM250D
Schneider Electric
Schneider Electric Push button, KNX, Merten System Design, 3GANG, rockers, lotus white MTN6193-6035
Schneider Electric
Schneider Electric Trip unit MA220, ComPacT NSX250, 3 poles, magnetic protections, motor protection, 220A rating C253MA220
Schneider Electric
Schneider Electric XACA211 pendant station XAC-A pistol grip - 2 booted push buttons
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LV864922SP?
- LV864922SP can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LV864922SP.
- What is the HS code for LV864922SP?
- The customs tariff (HS) code for LV864922SP is 8538.90.
- Who manufactures LV864922SP?
- LV864922SP is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LV864922SP?
- Yes — the LV864922SP datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LV864922SP?
- The minimum order quantity is 1.
- Is LV864922SP available?
- Yes — LV864922SP is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
