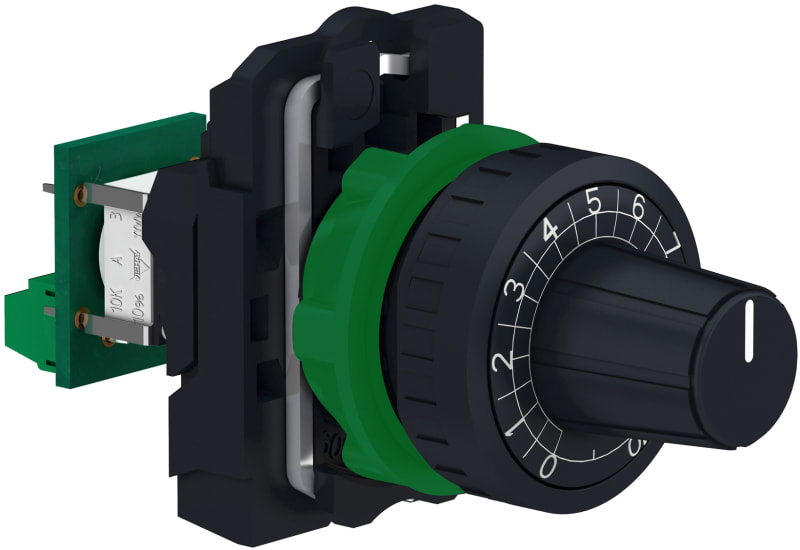

Potentiometer complete 1KOHM (XB5AD912R1K)

Schneider Electric XB5AD912R1K — Complete potentiometer, plastic, Ø22, 1K.

Manufacturer part number (MPN)

XB5AD912R1K

EAN / GTIN

3606480985058

Sales unit

pcs

Package quantity

40 pcs

Range of product

Harmony XB5

Product or component type

Potentiometer

Device short name

XB5

Head type

Standard

Device presentation

Complete product

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Product compatibility

Ø 6 mm shaft

Sale per indivisible quantity

1

CAD overall width

30 mm

CAD overall height

42 mm

CAD overall depth

82 mm

Product weight

0.048 kg

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK03 conforming to IEC 50102

Standards

UL 508; CSA C22.2 No 14; IEC 60947-1

Product certifications

BV; UL listed; CSA

Shape of signaling unit head

Round

Operator profile

knurled knob, with (white)

[Us] rated supply voltage

<= 30 V AC; <= 42 V DC

Rated power in W

1 W at 70 °C

Precision of internal conversion resistor

+-10%

Potentiometer characteristic

Linear

Mechanical durability

50000 cycles

Ohmic value

1000 Ohm

Material

Cermet

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Main group

Potentiometer

Group of product

Potentiometer knurled knob

Colour of marking

White

Enclosure Type

UL type 4X/13

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.200 cm

Package 1 Width

5.000 cm

Package 1 Length

8.400 cm

Package 1 Weight

57.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

40

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

2.607 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Power consumption

1 W

Resistance

1000 Ohm

Degree of protection (IP)

IP66

Number of revolutions

0–10

HS Code

8533.40
