SWM CGP 445X130M/1 Holes FL21
Pricing
Request a quote
We reply within 24 hours
Product Description

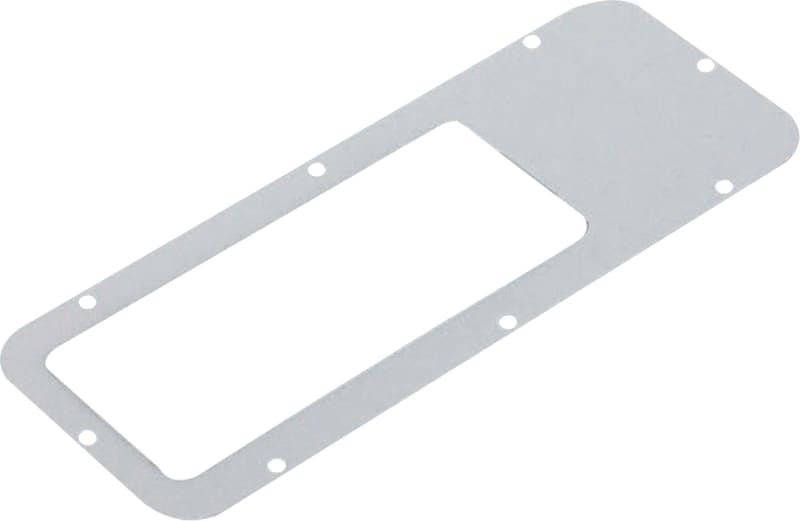

Schneider Electric NSYTLEFL — with 1 FL21 cutouts for S3D encl. RAL7035. L445xW130.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTLEFL
- EAN / GTIN
- 3606480168376
- Sales unit
- pcs
- Range
- PanelSeT
- Product or component type
- Cable gland plate
- Accessory / separate part category
- Cable management accessory
- Application
- Multi-purpose
- Range compatibility
- PanelSeT S3D; PanelSeT PanelSeT CRNG
- Mounting location
- Enclosure bottom
- Cable gland type
- With FL cut-out
- Device composition
- fixing elements; 1 plate; 1 separate gasket
- Quantity per set
- Set of 1
- Material
- Plate: steel; Seal: polyethylene (PE) foam
- Colour
- Plate: grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Height
- 445 mm; 5 mm
- Width
- 445 mm
- Depth
- 130 mm
- Product weight
- 0.566 kg
- thickness
- 1.5 mm
- Number of cut-out
- 1 cut-out
- Accessory / separate part destination
- For FL21 membranes
- Cut-out dimensions
- 194 x 62.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.500 cm
- Package 1 Width
- 13.500 cm
- Package 1 Length
- 45.000 cm
- Package 1 Weight
- 569.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 10
- Package 2 Height
- 20.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 6.304 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 200
- Package 3 Height
- 114.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 139.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Cable screw gland
- Surface protection
- Untreated
- Pre-stamping
- No
- Type
- Straight
- Thread type
- None
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480168376
- SAP 1000470683
- Code 8787717
Product Documentation
