ROT LIGHT 130mm IP66 120VAC LED
Pricing
Request a quote
We reply within 24 hours
Product Description

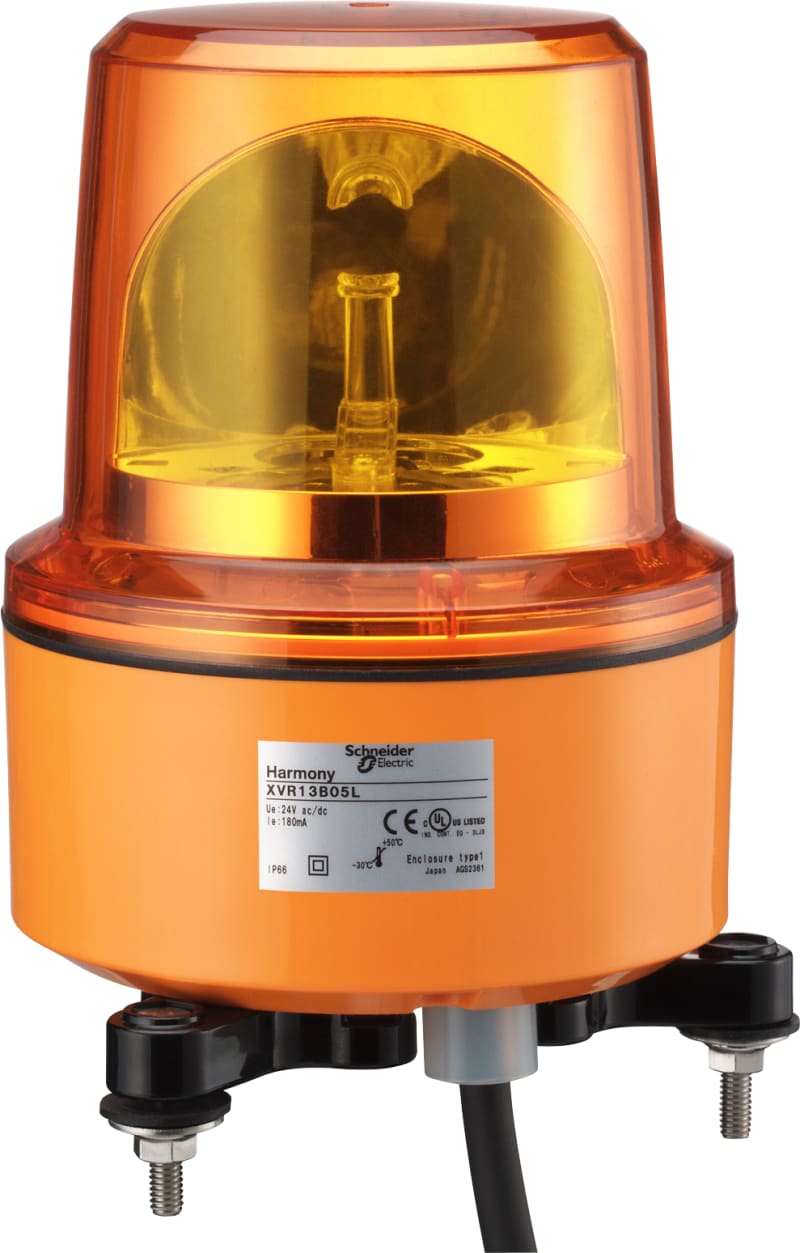

Schneider Electric XVR13G05L Rotary light 130mm IP66 120VAC LED.
Technical Specifications
- Manufacturer part number (MPN)
- XVR13G05L
- EAN / GTIN
- 3389119045315
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 120 V AC
- IP rating
- IP66
- Range of product
- Harmony XVR
- Product or component type
- Prewired rotating mirror beacon
- Sound signalling
- Without
- Device short name
- XVR
- Mounting diameter
- 130 mm
- IP degree of protection
- IP66 conforming to IEC 60529; IP67 conforming to IEC 60529
- [Us] rated supply voltage
- 120 V AC
- Light source
- High luminosity LED, orange
- Material
- ABS (acrylonitrile butadiene-styrene): body part; PC: globe
- CAD overall width
- 130 mm
- CAD overall depth
- 130 mm
- Product weight
- 0.99 kg
- Marking
- CE
- Product mounting
- By 3 M6 screws
- [Uimp] rated impulse withstand voltage
- 4 kV
- Current consumption
- 42 mA
- Flashing frequency
- 2.7 Hz
- Clamping connection capacity
- 1.25 mm²
- AWG gauge
- 18 AWG
- Cable length
- 400 mm
- Standards
- IEC 60947-1; IEC 60947-5-1
- Protective treatment
- TC
- Ambient air temperature for storage
- -35…70 °C
- Ambient air temperature for operation
- -30…50 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- Country of origin
- ID
- Warranty (in months)
- 18
- Nominal voltage
- 120 V
- Type of current
- AC
- Electricity consumption
- 0.042 A
- Power
- 5 W
- Degree of protection (IP)
- IP67
- Colour of lamp hood
- Orange
- Lamp type
- LED
- Optics
- Mirror
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3389119045315
- SAP 1000707743
- Code 8665970
Product Documentation
