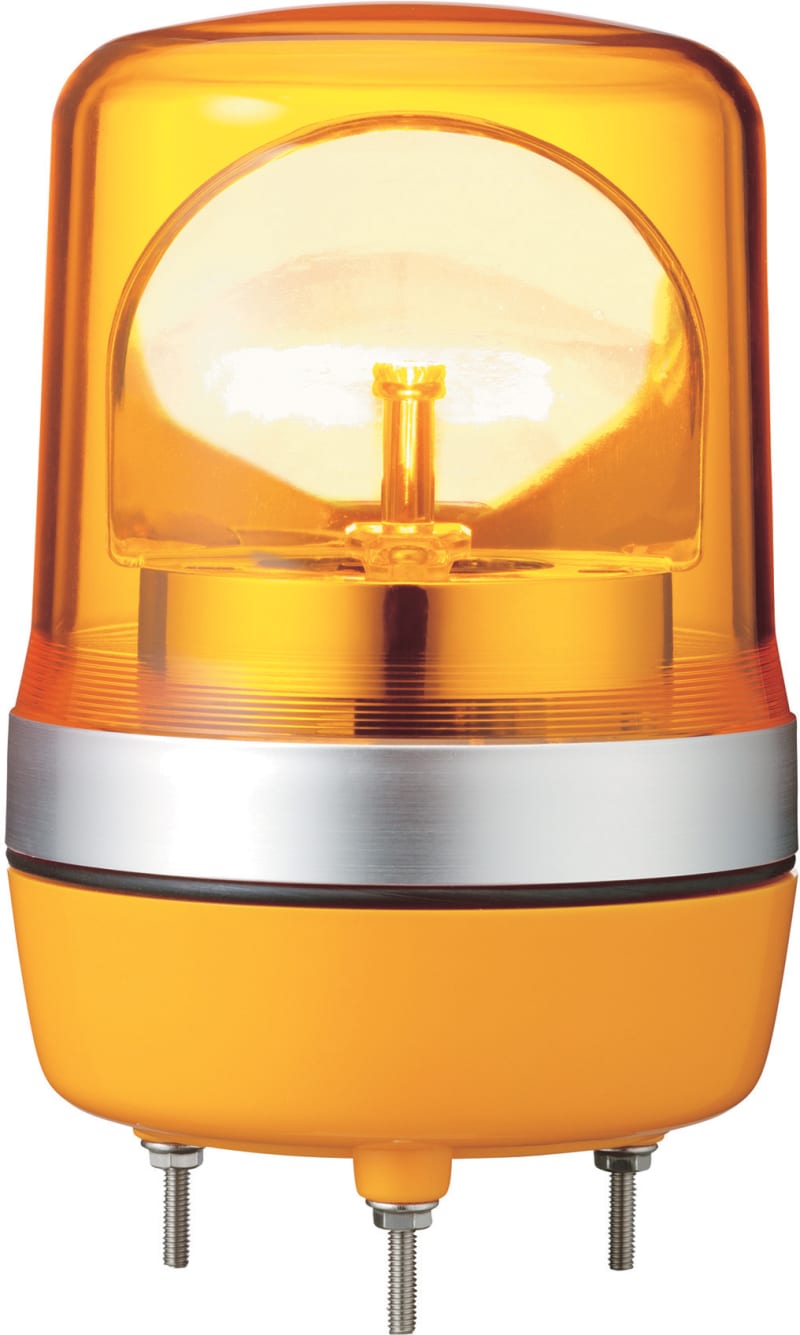

Schneider Electric 106mm Rotating Mirror Orange 24VAC-DC XVR10B05
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XVR10B05 Rotary light 106mm 24V orange LED.
Technical Specifications
- Manufacturer part number (MPN)
- XVR10B05
- EAN / GTIN
- 3606480033087
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 24 V
- Range of product
- Harmony XVR
- Product or component type
- Prewired rotating mirror beacon
- Sound signalling
- Without
- Device short name
- XVR
- Mounting diameter
- 106 mm
- IP degree of protection
- IP55 (with accessory) conforming to IEC 60529; IP23 conforming to IEC 60529
- [Us] rated supply voltage
- 24 V AC/DC
- Light source
- High luminosity LED, orange
- Material
- ABS (acrylonitrile butadiene-styrene): body part; PMMA (polymethyl methacrylate): globe
- CAD overall width
- 106 mm
- CAD overall depth
- 106 mm
- Product weight
- 0.5 kg
- Marking
- CE
- Product mounting
- By 3 M4 screws
- Supply voltage limits
- 19…30 V DC; 21.6…26.4 V AC
- [Uimp] rated impulse withstand voltage
- 0.8 kV
- Current consumption
- 125 mA
- Flashing frequency
- 2.3 Hz
- Clamping connection capacity
- 0.83 mm²
- AWG gauge
- 18 AWG
- Cable length
- 400 mm
- Standards
- IEC 61000-6-2; IEC 61000-6-4
- Product certifications
- UL
- Protective treatment
- TC
- Ambient air temperature for storage
- -35…70 °C
- Ambient air temperature for operation
- -10…50 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Country of origin
- ID
- Warranty (in months)
- 18
- Nominal voltage
- 24 V
- Type of current
- AC/DC
- Electricity consumption
- 0.125 A
- Power
- 3.2 W
- Degree of protection (IP)
- IP55
- Colour of lamp hood
- Orange
- Lamp type
- LED
- Optics
- Mirror
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480033087
- SAP 1000253166
- Code 81133792
Product Documentation
