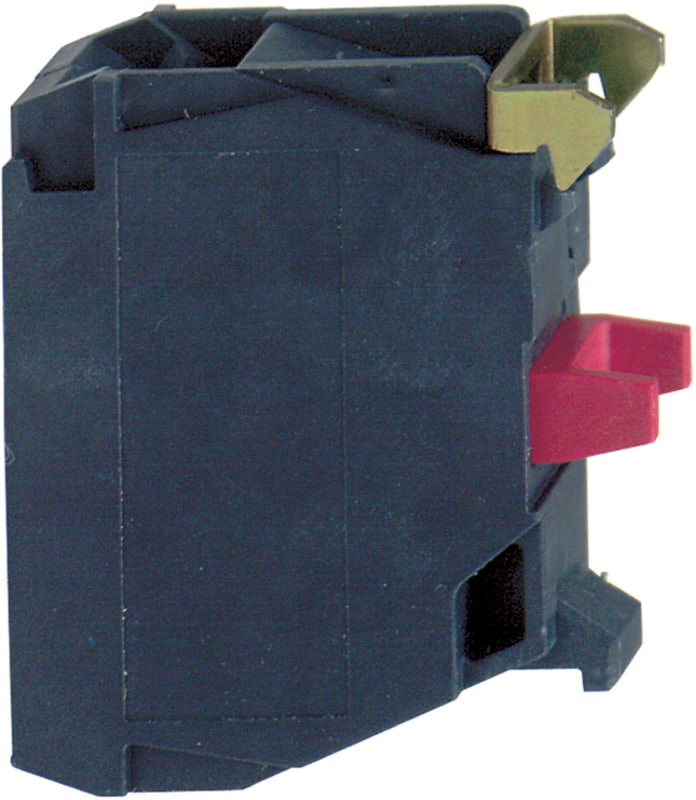

Schneider Electric Single contact block, silver alloy, screw clamp terminal, 1 NC ZBE102

Schneider Electric ZBE102 Contact Element 1NC.

Manufacturer part number (MPN)

ZBE102

EAN / GTIN

3389110089486

Sales unit

pcs

Package quantity

5 pcs

Contact configuration

1 NC

Range of product

Harmony XB4; Harmony XB5

Product or component type

Contact block

Device short name

ZBE

Sale per indivisible quantity

5

IP degree of protection

IP20 conforming to IEC 60529

Contact operation

Slow-break

Contact block type

Single

Contacts usage

Standard contacts

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Product weight

0.011 kg

Contacts type and composition

1 NC

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1.5 mm (NC changing electrical state); 4.3 mm (total travel)

Operating force

2 N NC changing electrical state

Mechanical durability

10000000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Mounting of block

Front mounting

Electrical composition code

C1 (quantity <= 9); C2 (quantity <= 7); C3 (quantity <= 6); C4 (quantity <= 4); C5 (quantity <= 5); C6 (quantity <= 3); C7 (quantity <= 4); C8 (quantity <= 2); C9 (quantity <= 3); C12 (quantity <= 6); M1 (quantity <= 6); M2 (quantity <= 4); M3 (quantity <= 4); M5 (quantity <= 2); M6 (quantity <= 2); M7 (quantity <= 6); M8 (quantity <= 4); M9 (quantity <= 2); SF1 (quantity <= 3); SF2 (quantity <= 2); MF1 (quantity <= 2); MF2 (quantity <= 2); C10 (quantity <= 2); M4 (quantity <= 2); C13 (quantity <= 1)

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Standards

IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-1; UL 508; IEC 60947-5-4; JIS C8201-1

Product certifications

CSA; GOST; BV; DNV; LROS (Lloyds register of shipping); CCC; UL

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

800

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50

• EAN 3389110089486
• SAP 1000003989
• Code 826834
