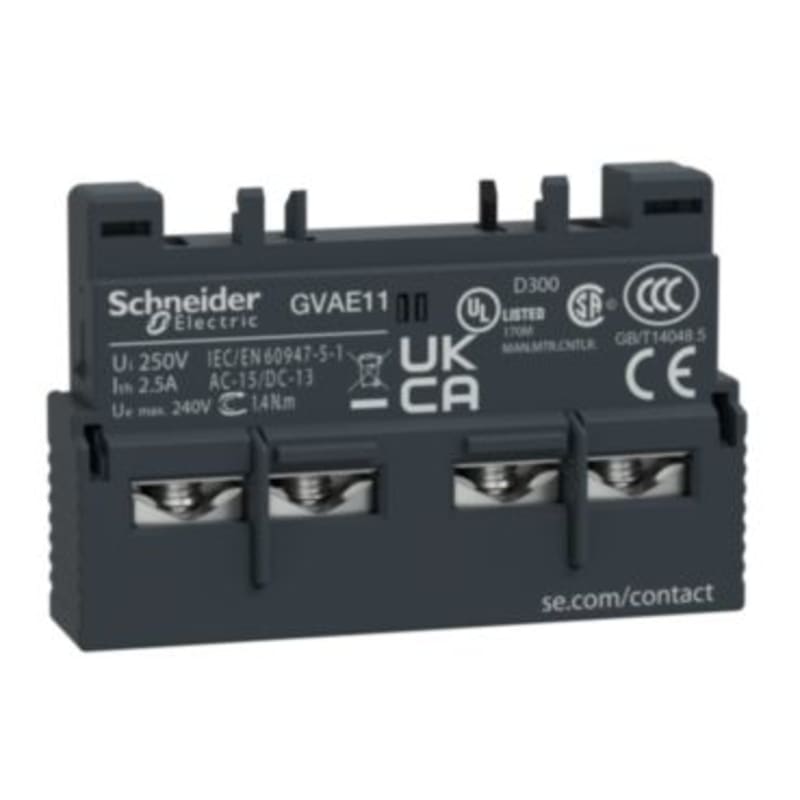

Schneider Electric TeSys GV2 & GV3 - auxiliary contact - 1 NO + 1 NC GVAE11

Schneider Electric GVAE11 Auxiliary block 1NO+1NC GV2 Front.

Manufacturer part number (MPN)

GVAE11 EAN / GTIN: 3389110343434 Sales unit: pcs Package quantity: 10 pcs Contact configuration: 1 NO + 1 NC Range: TeSys; TeSys Deca Device short name: GVAE Product or component type: Auxiliary contact block Product compatibility: GV2P; GV2L; GV2ME; GV2LE; GV2RT; GV2LM; GV3P; GV3L Mounting location: Front side Pole contact composition: 1 NO + 1 NC Quantity per set: Set of 10 [Ui] rated insulation voltage: 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14; 250 V conforming to IEC 60947-1 [Ue] rated operational voltage: 24...240 V AC; 24...60 V DC [Ith] conventional free air thermal current: 2.5 A Mechanical durability: 100000 cycles minimum switching current: 5 mA minimum switching voltage: 17 V Protection type: GG fuse 10 A; GB2CB06 circuit breaker 10 A maximum Rated operational power in VA: 120 VA at 110…120 V AC-15 - electrical durability: 100000 cycles; 120 VA at 230…240 V AC-15 - electrical durability: 100000 cycles; 48 VA at 24 V AC-15 - electrical durability: 100000 cycles; 60 VA at 48 V AC-15 - electrical durability: 100000 cycles Rated operational power in W: 15 W at 48 V DC-13 - electrical durability: 100000 cycles; 24 W at 24 V DC-13 - electrical durability: 100000 cycles; 9 W at 60 V DC-13 - electrical durability: 100000 cycles Tightening torque: 1.7 N.m screw clamp terminals Height: 11 mm Width: 45 mm Depth: 29 mm Product weight: 0.02 kg Colour: Dark grey Environmental characteristic: Normal environment Standards: EN/IEC 60947-5-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-1:Clause 30.2; IEC/EN 60335-2-40:Annex JJ Product certifications: CB Scheme; CE; UKCA; CCC; cULus; EAC Number of Units in Package 1: 1 Number of Units in Package 2: 10 Number of Units in Package 3: 260 Country of origin: CZ Warranty (in months): 18

HS Code

8538.90

• EAN 3389110343434
• SAP 1000042632
• Code 8763408
