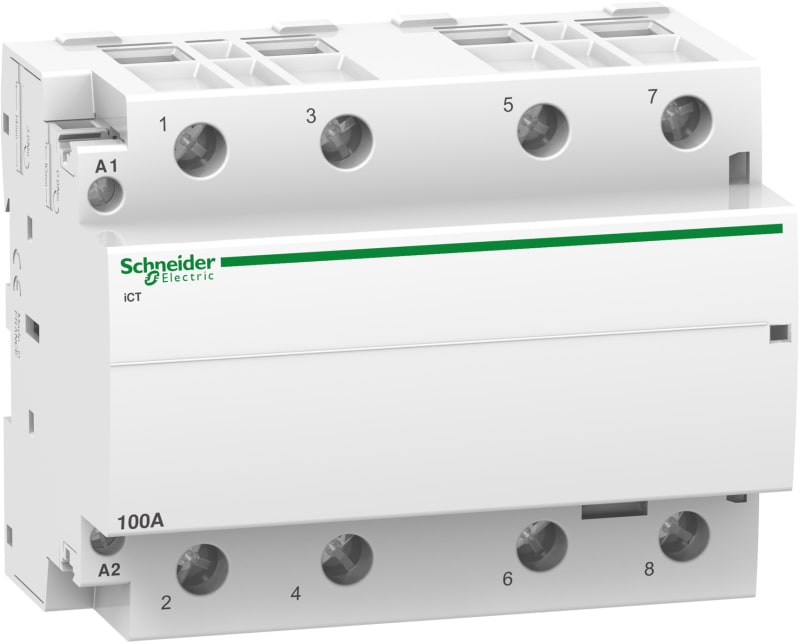

Schneider Electric iCT 100A 4NO 220...240V 50Hz contactor A9C20884
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9C20884 Contactor iCT 100A 4NO 230VAC.
Technical Specifications
- Manufacturer part number (MPN)
- A9C20884
- EAN / GTIN
- 3606480375200
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Voltage
- 230 V AC
- Contact configuration
- 4 NO
- range of product
- Acti9
- Product name
- Acti9 iCT
- Product or component type
- Contactor
- Device short name
- iCT
- Device application
- Heating-low inductive load
- Poles
- 4P
- [Ie] rated operational current
- 100 A AC-7A
- Pole contact composition
- 4 NO
- Network type
- AC
- Utilisation category
- AC-1 conforming to EN 60947-4-1; AC-7A conforming to EN 61095; AC-7A conforming to IEC 61095; AC-7A conforming to UTE C 61-481; AC-1 conforming to IEC 60947-4-1
- Control type
- Remote control
- [Uc] control circuit voltage
- 220...240 V AC 50 Hz
- Network frequency
- 50 Hz
- [Ue] rated operational voltage
- 400 V AC 50 Hz
- Maximum power
- AC-7A: 4.2 W at 400 V AC 50 Hz
- [Ui] rated insulation voltage
- 500 V AC 50 Hz
- [Uimp] rated impulse withstand voltage
- 4 kV
- Control signal type
- Maintained
- Switching frequency
- 100 switching operations/day
- Local signalling
- Action indicator
- Hold-in power consumption in VA
- 13 VA
- Inrush power in VA
- 106 VA
- mounting mode
- Clip-on
- Mounting support
- 35 mm symmetrical DIN rail
- 9 mm pitches
- 12
- Height
- 85 mm
- Width
- 108 mm
- Depth
- 60 mm
- Colour
- White
- Electrical durability
- 30000 cycles EN 61095 400 V 16 A AC 50 Hz AC-7A; 30000 cycles UTE C 61-481 400 V 6 A AC 50 Hz AC-7A; 30000 cycles IEC 61095 400 V AC 50 Hz AC-7A
- Connections - terminals
- Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid; Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid; Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible; Power circuit: tunnel type terminals1 cable(s) 6…35 mm² solid or flexible
- Tightening torque
- Power circuit: 3.5 N.m; Control circuit: 0.8 N.m A1 / A2
- Product compatibility
- IACTp; IACTs; IATEt; IACTc
- Compatibility code
- ICT
- Market segment
- Small commercial; Residential
- Standards
- EN 61095; IEC 61095; UTE C 61-481
- Noise level
- 30 dB
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 2
- Tropicalisation
- 2 conforming to EN 60947-4-1
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -5…60 °C
- Ambient air temperature for storage
- -40…70 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480375200
- SAP 1000325919
- Code 8839348
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric LV429305 DIN rail adaptor, ComPact NSX 100/160/250
Schneider Electric
Schneider Electric NSYS3D3215P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 300X200X150MM, IP66, IK10
Schneider Electric
Adapter for cylinder lock
NSYLADP
Schneider Electric
Schneider Electric TTA-GH1 Rib Holder with Clip for TTA-G Brackets
5590456
Schneider Electric
Earthing Clamp Brass 1
3010004
Schneider Electric
Exxact S-Washer Lexcom STRAIGHT White
WDE002434
Schneider Electric
Schneider Electric XB4BS9445 Emergency stop switching off, metal, red mushroom, Ø40, Ø22, trigger latching key release, 1 NO + 1 NC
Schneider Electric

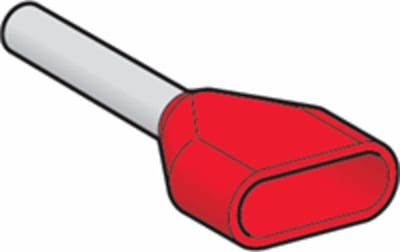

Schneider Electric insulated double cable end medium size 1 mm² red AZ5DE010
