Schneider Electric NSYS3D3215P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 300X200X150MM, IP66, IK10
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYS3D3215P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 300X200X150MM, IP66, IK10 is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Range: PanelSeT; Product name: PanelSeT S3D; Application: Multi-purpose; Enclosure nominal height: 300 mm; Enclosure nominal width: 200 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D3215P
- EAN / GTIN
- 3606480159794
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 300 mm
- Enclosure nominal width
- 200 mm
- Enclosure nominal depth
- 150 mm
- Door type
- Plain
- Mounting plate description
- Plain
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 mounting plate; 1 door with lock; 1 cable gland plate
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws; Mounting plate by fixing element
- Material
- Enclosure: steel; Mounting plate: galvanised steel
- Surface finish
- Enclosure: epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- UL; BV; GL; DNV; cUL
- Product weight
- 3.58 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.500 cm
- Package 1 Width
- 21.000 cm
- Package 1 Length
- 31.500 cm
- Package 1 Weight
- 3.602 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 56
- Package 2 Height
- 99.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 213.700 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 200 mm
- Height
- 300 mm
- Depth
- 150 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159794
- SAP 1000089572
- Code 8914785
Product Documentation
More from Schneider Electric
Schneider Electric
Adapter for cylinder lock
NSYLADP
Schneider Electric
Schneider Electric TTA-GH1 Rib Holder with Clip for TTA-G Brackets
5590456
Schneider Electric
Earthing Clamp Brass 1
3010004
Schneider Electric
Exxact S-Washer Lexcom STRAIGHT White
WDE002434
Schneider Electric
Schneider Electric XB4BS9445 Emergency stop switching off, metal, red mushroom, Ø40, Ø22, trigger latching key release, 1 NO + 1 NC
Schneider Electric
Schneider Electric insulated double cable end medium size 1 mm² red AZ5DE010
Schneider Electric
Schneider Electric TeSys Vario - emergency stop switch disconnector - 80 A - on door VCF4
Schneider Electric

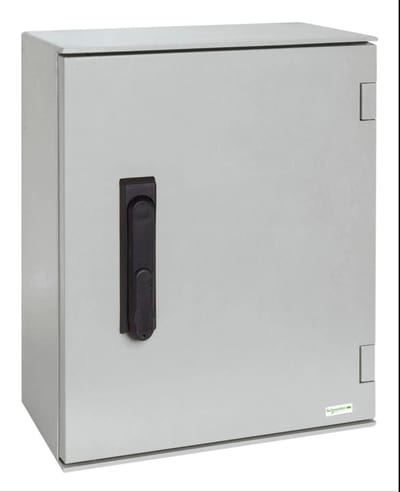

Schneider Electric NSYPLM64VG wall-mounting enclosure polyester monobloc IP66 H647XW436XD250MM 3POINTS lock
