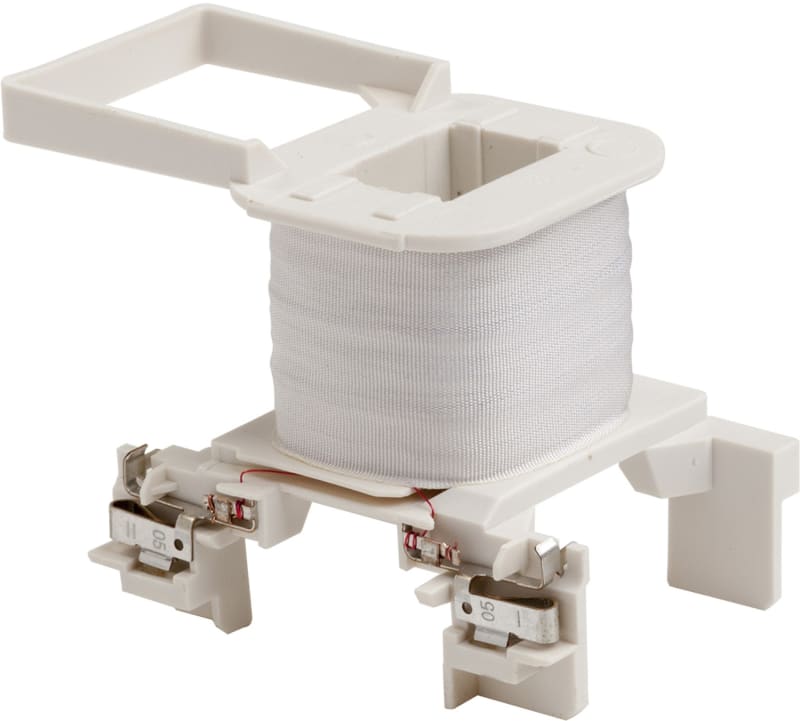

Coil D40A-D65A 220V 50/60Hz

Schneider Electric LXD3M7 Coil D40A-D65A 220V 50/60Hz.

Manufacturer part number (MPN)

LXD3M7

EAN / GTIN

3389119410410

Sales unit

pcs

Package quantity

30 pcs

Voltage

220 V

Frequency

50/60 Hz

Range

TeSys

Product or component type

Contactor coil

Device short name

LXD3

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

220 V AC 50/60 Hz

Average resistance

182 Ohm at 20 °C

Inductance of closed circuit

10 H

Product compatibility

LC1D40A...D65A; LC1DT80A; LC1DT60A

Mechanical durability

6 Mcycles

Maximum operating rate

3600 cyc/h 60 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)

Inrush power in VA

160 VA 60 Hz cos phi 0.75 (at 20 °C); 160 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in VA

15 VA 60 Hz cos phi 0.3 (at 20 °C); 15 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

4…5 W at 50/60 Hz

Ambient air temperature for operation

-5…60 °C

Product weight

0.07 kg

Country of origin

FR

Warranty (in months)

18

Rated control supply voltage AC 50 Hz

220 V

Rated control supply voltage AC 60 Hz

220 V

Voltage type for actuating

AC

HS Code

8504.50
