S3D1200X600X400 with Glassdoor
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D12640T S3D1200X600X400 With GLASS DOOR.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D12640T
- EAN / GTIN
- 3606480159893
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 1200 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 400 mm
- Door type
- Glazed
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel; Door: steel and security glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- cUL; UL; DNV; BV; GL
- Product weight
- 37 kg
- Electromagnetic compatibility
- Electromagnetic field immunity test
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 45.500 cm
- Package 1 Width
- 62.000 cm
- Package 1 Length
- 122.500 cm
- Package 1 Weight
- 38.400 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 6
- Package 2 Height
- 199.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 122.500 cm
- Package 2 Weight
- 244.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 1200 mm
- Depth
- 400 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159893
- SAP 1000317855
- Code 81015718
Product Documentation
More from Schneider Electric
Schneider Electric
Flexible 40A 0,5M 3L+3L+N W
KBB40DF4405W
Schneider Electric
Bottom plate IP55 PrismaSeT P B400 D600
LVS08684
Schneider Electric
Schneider Electric Control unit MicroLogic 6.0P, ComPacT NS630B to NS1600 withdrawable manually operated, selective and earth-fault protections C6PWM
Schneider Electric
Extra Plinth H100 B850-IP30-PRISMASET G
LVS08806
Schneider Electric

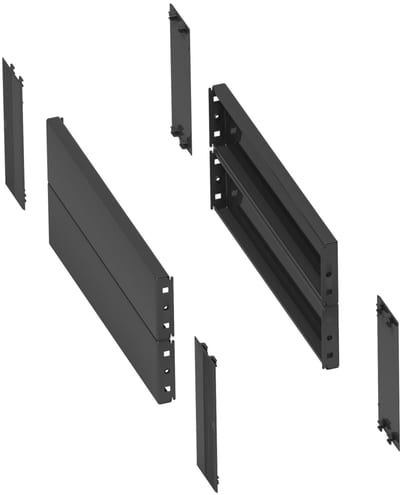

4 Plinth sides 200X600
NSYSPS6200
Schneider Electric

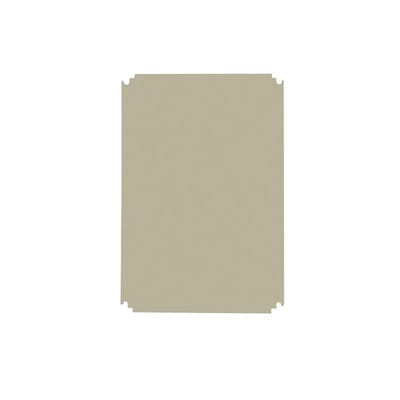

Polyester mounting plate 400X300
NSYMPP43
Schneider Electric

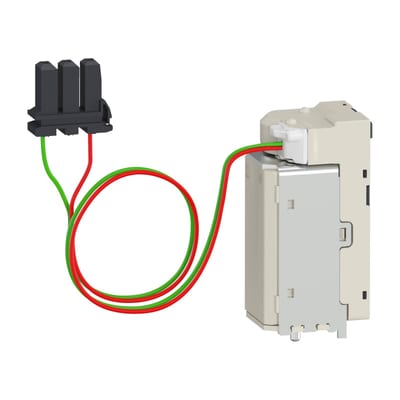

Schneider Electric XF or MX voltage release, standard, Masterpact MTZ1/2/3, 380/480 VAC 50/60 Hz, spare part LV833664SP
Schneider Electric

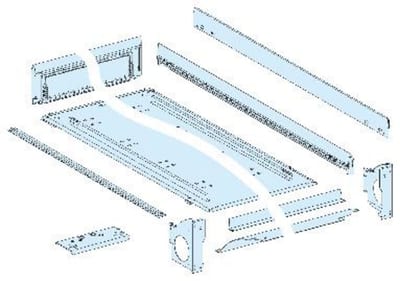

Schneider Electric Extension enclosure, PrismaSeT G, floor standing, without side plates, 27M, W600MM, H1580MM, IP30 LVS08212
