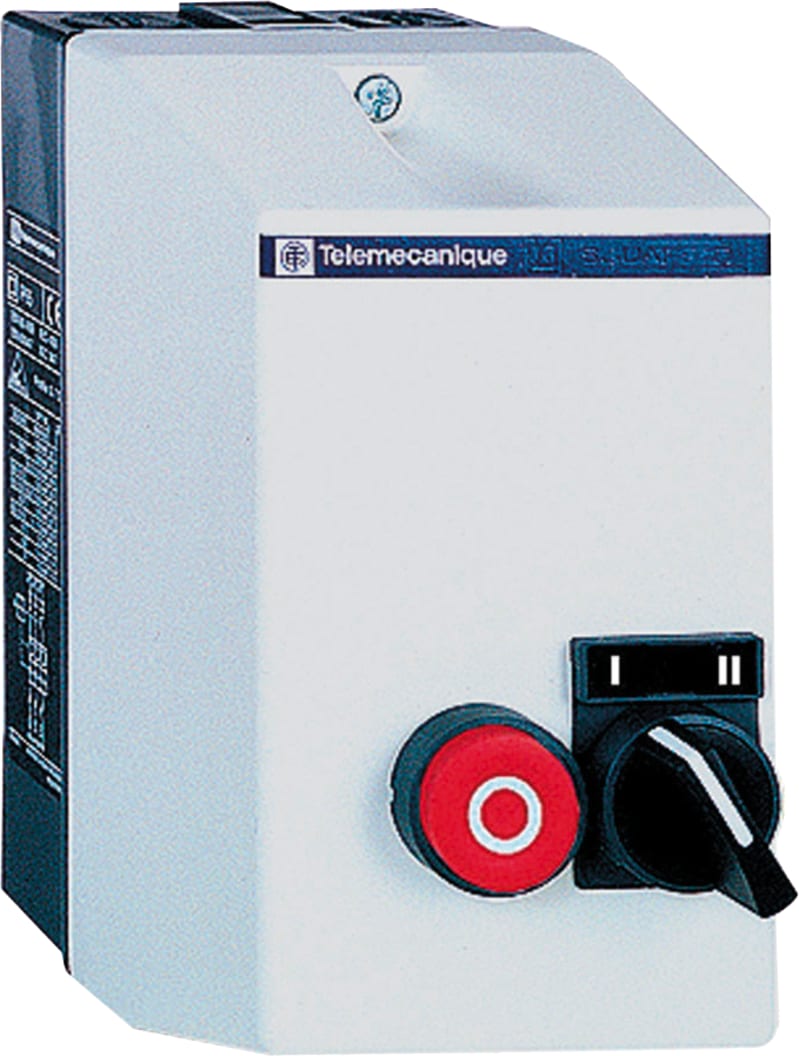

Schneider Electric TeSys LE - enclosed DOL reversing starter - 9 A - 230 V AC coil LE2D09P7
Part numberLE2D09P7EAN / GTIN3389110632231HS code8537.10
Drives & Controllers
Motor Starters
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LE2D09P7 Reversing.v. Enclosed 9A 230VAC.
Technical Specifications
- Manufacturer part number (MPN)
- LE2D09P7
- EAN / GTIN
- 3389110632231
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Voltage
- 230 V AC
- Range
- TeSys
- Product name
- TeSys LE
- Device short name
- LE2D
- Product or component type
- Enclosed DOL reversing starter
- Device application
- Standard
- Utilisation category
- AC-3
- Device composition
- Thermal overload relay ordered separately; Reversing contactor
- Motor power kW
- 4 kW at 380/400 V AC 50/60 Hz; 4 kW at 415 V AC 50/60 Hz; 4 kW at 440 V AC 50/60 Hz; 2.2 kW at 220/230 V AC 50/60 Hz; 5.5 kW at 500 V AC 50/60 Hz; 5.5 kW at 660/690 V AC 50/60 Hz
- [Ith] Conventional free air thermal current
- 9 A
- [Uc] control circuit voltage
- 230 V AC 50/60 Hz
- Control type
- Push-button stop/reset red O; Selector switch 2 positions start I-II
- Cable entry number
- 2 ISO20 top; 2 ISO25 top; 2 ISO20 bottom; 2 ISO25 bottom
- Width
- 101 mm
- Height
- 201 mm
- Depth
- 160 mm
- Product weight
- 2.1 kg
- Material
- Polycarbonate
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 60529
- Standards
- IEC 60947-4-1
- Ambient air temperature for operation
- -5…40 °C
- Environmental characteristic
- Standard environment
- Product certifications
- UKCA
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Country of origin
- FR
- Warranty (in months)
- 18
- With transformer
- No
- Rated operation power at AC-3, 400 V
- 4 kW
- Number of command positions
- 2
- Suitable for emergency stop
- No
- Rated operation current Ie
- 9 A
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- No
- Degree of protection (IP)
- IP65
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- With short-circuit release
- No
- With fuse
- No
- Type of electrical connection of main circuit
- Screw connection
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- AC
- Type of motor starter
- Reversing starter
- Rated operation power at AC-3, 230 V, 3-phase
- 2.2 kW
- Rated power, 460 V, 60 Hz, 3-phase
- 4 kW
- Rated power, 575 V, 60 Hz, 3-phase
- 5.5 kW
- Rated operation current at AC-3, 400 V
- 9 A
- Ambient temperature, upper operating limit
- 40 °C
- Temperature compensated overload protection
- No
