Mounting Plate 1000X800
Pricing
Request a quote
We reply within 24 hours
Product Description

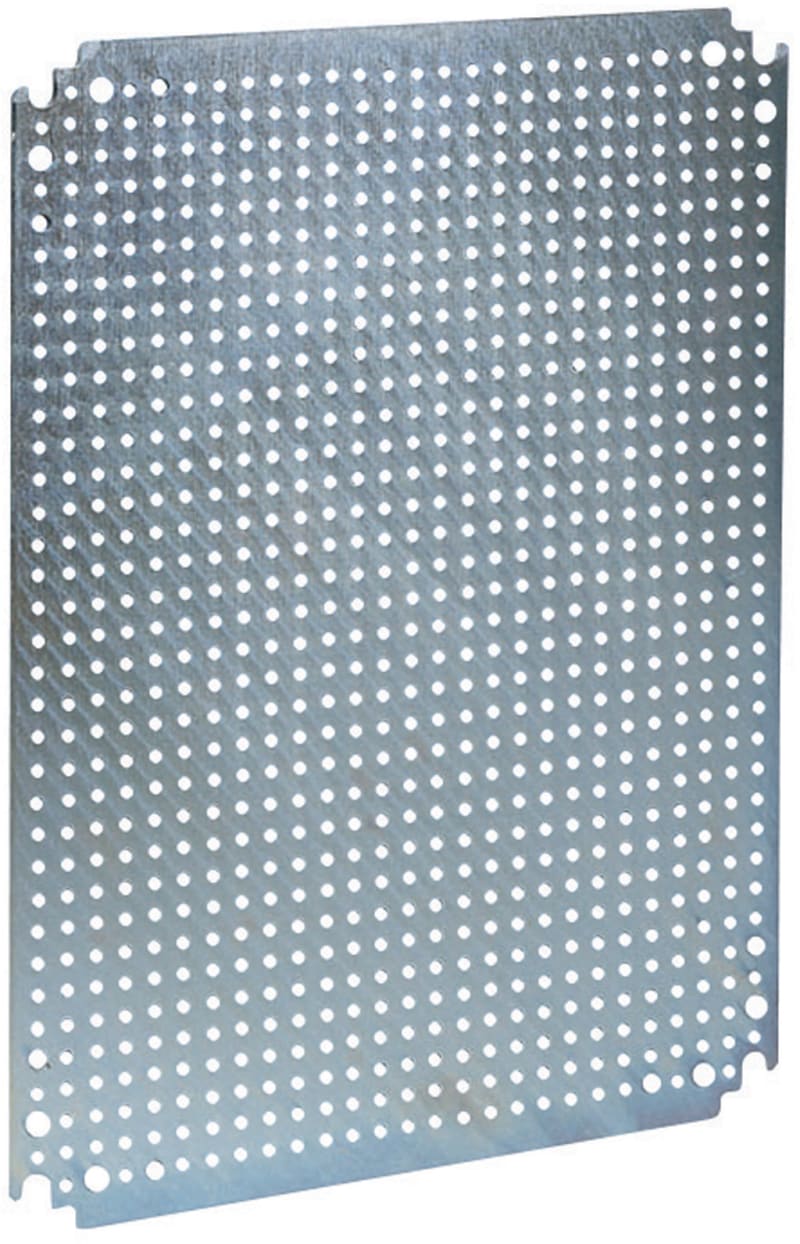

Schneider Electric NSYMF108 MOUNTING PLATE 1000X800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMF108
- EAN / GTIN
- 3606480183003
- Sales unit
- pcs
- Dimensions
- 1000×800 mm
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 800 mm W: 1000 mm ; - H: 1000 mm W: 800 mm
- Mounting location
- Step slide; Direct fixing on backstuds
- Mounting plate description
- Microperforated
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM PLM
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- Screwed on backstuds - screw type M8; By fixing element
- Permanent permissible load
- 150 kg
- Height
- 965 mm
- Width
- 750 mm
- Depth
- 125 mm
- thickness
- 2.5 mm
- Product weight
- 12.88 kg
- Variant particularity
- Installation in enclosures with inverted dimensions
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- Yes
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480183003
- SAP 1000470387
- Code 8113471
Product Documentation
