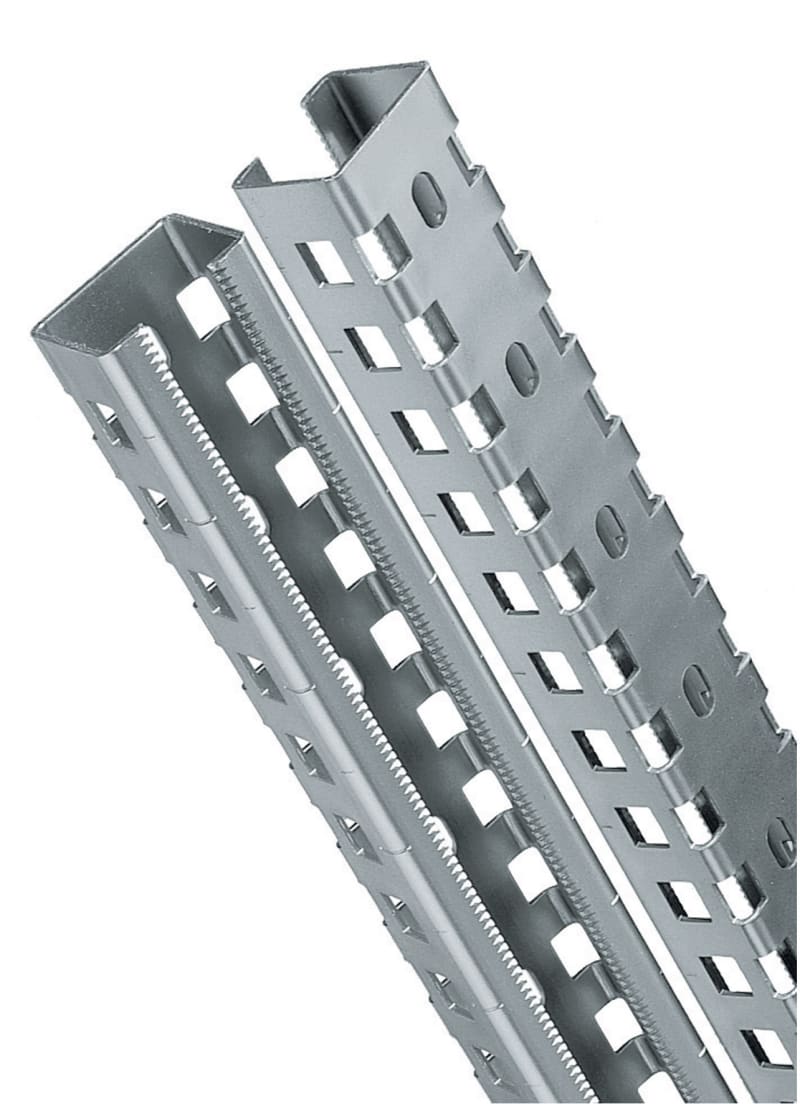

Schneider Electric Vertical uprights height 1500MM. zinc-coated steel. Supply: 2 standard uprights. NSYTVR15
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTVR15 VERTICAL PROFILE 1500MM.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTVR15
- EAN / GTIN
- 3606480185076
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Technical upright
- device application
- Multi-purpose
- enclosure nominal dimensions
- - H: 1500 mm
- Mounting support
- Step slide; Direct fixing on the rear inserts
- Range compatibility
- PanelSeT PLA
- Device composition
- 2 upright
- Material
- Steel
- Surface finish
- Zinc coated
- Fixing mode
- Bosses inserts - screw type M8 - rear of enclosure location
- Adjustment
- Adjustable in depth every 25 mm with caged nuts; Adjustable in height every 2.5 mm with quarter-turn nuts
- Height
- Nominal: 1500 mm; Real: 1375 mm
- Width
- 45 mm
- Depth
- 34 mm
- thickness
- 2 mm
- Cut-out dimensions
- 11 x 13 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 6.000 cm
- Package 1 Length
- 138.000 cm
- Package 1 Weight
- 4.134 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 120
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 500.000 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- Model
- Mounting rail
- Suitable for enclosure building height
- 1500 mm
- Colour
- Grey
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606480185076
- SAP 1000317672
- Code 8823163
