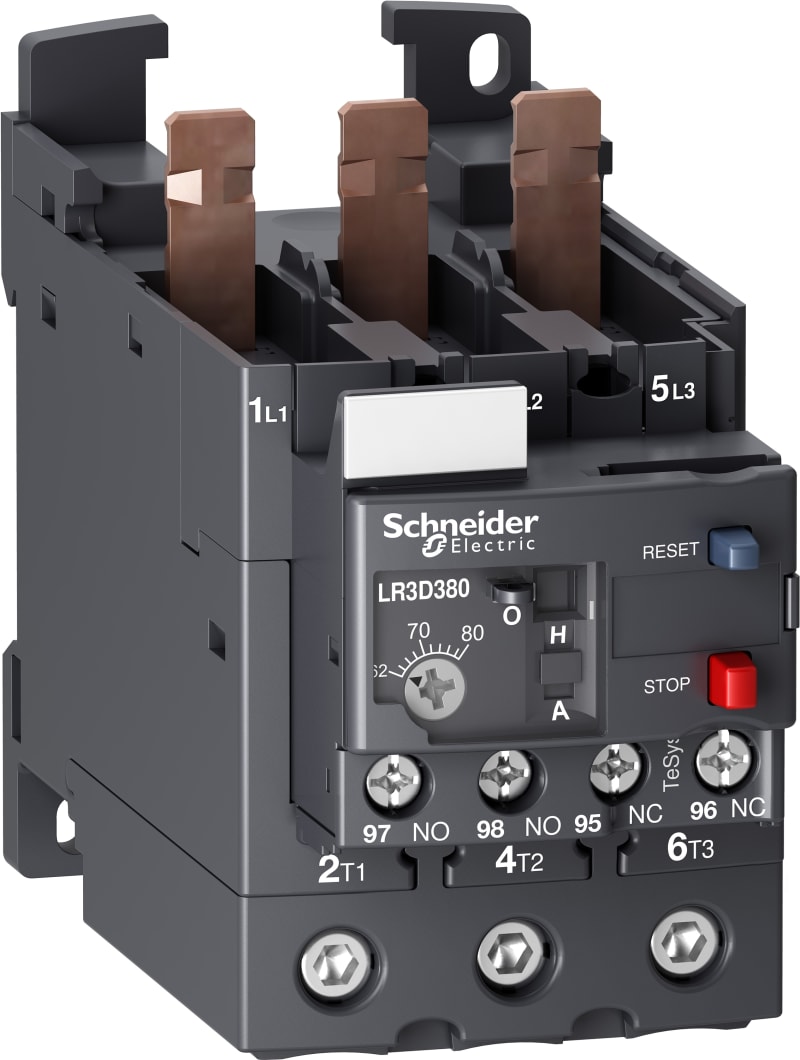

Thermal Relay 62-80A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LR3D380 62-80A CL10A non-differential thermal overload relay, Everlink/screw.
Technical Specifications
- Manufacturer part number (MPN)
- LR3D380
- EAN / GTIN
- 3606481312013
- HS code
- 8536.90
- Sales unit
- pcs
- Setting range
- 62-80 A
- Range
- TeSys; TeSys Deca
- Product name
- TeSys LRD; TeSys Deca
- Product or component type
- Non differential thermal overload relay
- Device short name
- LR3D
- Relay application
- Motor protection
- Product compatibility
- LC1D80A
- Network type
- AC; DC
- Thermal overload class
- Class 10A conforming to IEC 60947-4-1
- Thermal protection adjustment range
- 62…80 A
- [Ui] rated insulation voltage
- Power circuit: 690 V conforming to IEC 60947-4-1; Power circuit: 600 V conforming to UL 60947-4-1; Power circuit: 600 V conforming to CSA C22.2 No 14
- Network frequency
- 0...400 Hz
- Mounting support
- Plate, with terminal block LAD96560 on top; Rail, with terminal block LAD96560 on top; Direct mounting under contactor
- Tripping threshold
- 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ith] conventional free air thermal current
- 5 A for signalling circuit
- Per
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481312013
- SAP 1200219935
- Code 82141427
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Touch panel screen, Spacelogic KNX, 4 inch, 21-30 VDC, secure, black, Supply KNX 3 mA MTN6215-0410S
Schneider Electric
Jumper link 4 pole for 4mm² - red
NSYTRAL44
Schneider Electric
Schneider Electric solid state relay - panel mounting - input 3.5-32V DC, output 1-150 V DC, 12A SSP1D412BD
Schneider Electric
Sign Ø60 for ZBZ16XX Blank
ZBY9140M
Schneider Electric

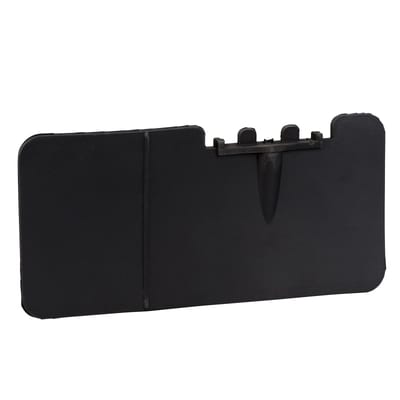

3 Faseskillere baksidetilkopli
33648
Schneider Electric

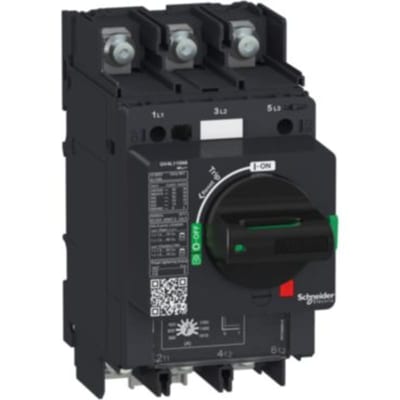

Schneider Electric TeSys GV4 - magnetic circuit breaker - 115A 3P - with compression lug GV4L115N6
Schneider Electric

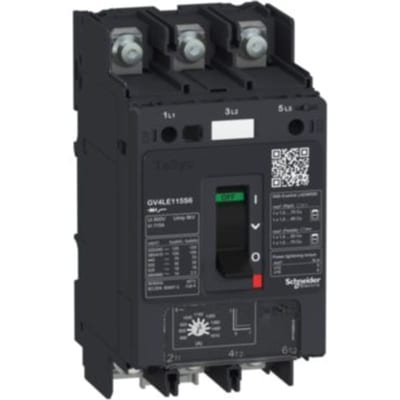

Schneider Electric TeSys GV4 - magnetic circuit breaker - 115A 3P - with compression lug GV4LE115N6
Schneider Electric

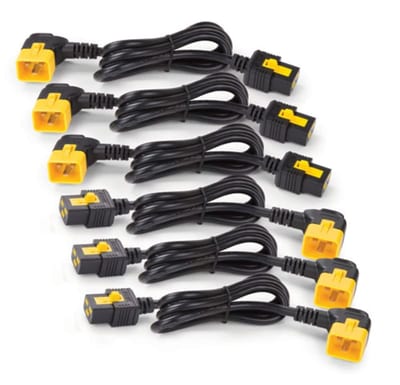

Schneider Electric Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.8M AP8716R
