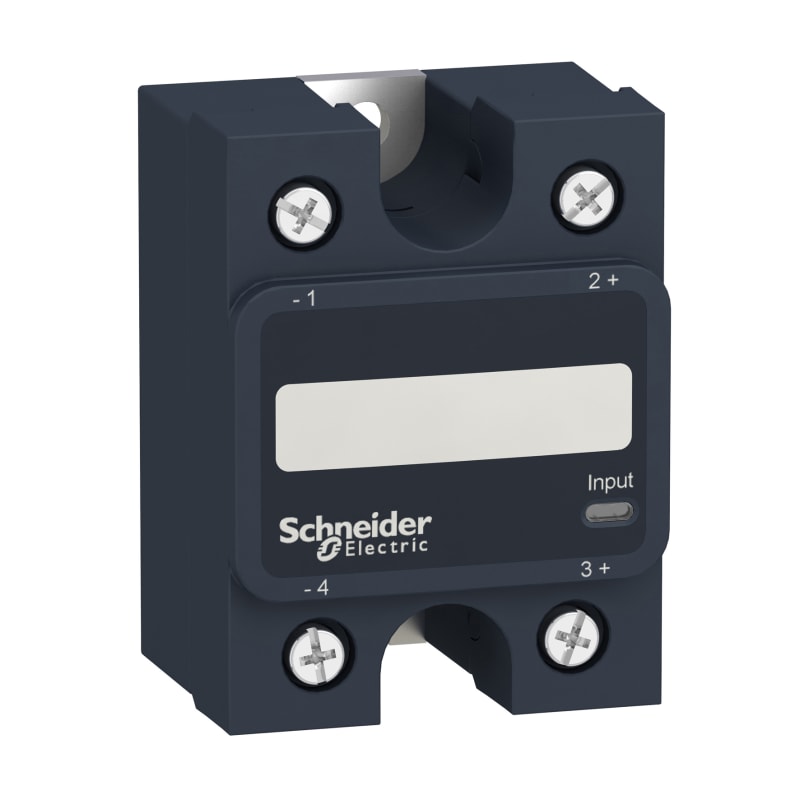

Schneider Electric solid state relay - panel mounting - input 3.5-32V DC, output 1-150 V DC, 12A SSP1D412BD

Schneider Electric SSP1D412BD 1p SSR - in 3,5-32DC, out 1-150DC, 12A.

Manufacturer part number (MPN)

SSP1D412BD EAN / GTIN: 3606485441818 HS code: 8536.90 Sales unit: pcs Package quantity: 30 pcs Range of product: Harmony Solid State Relays Product or component type: Panel mount relay Device short name: SSP1 Mounting support: Panel Number of phases: 1 phase [In] rated current: 12 A Solid state output type: DC switching; Mosfet output Output switching mode: DC switching test button: Without test button [Uc] control circuit voltage: 3.5...32 V DC minimum switching voltage: 3.5 V DC turn-on Maximum switching voltage: 1 V DC turn-off Response time: 0.1 ms (turn-on); 0.1 ms (turn-off) Input current: 10…15 mA Output voltage: 1...150 V DC Load current: 0.001…12 A Surge current: 31 A for 10 ms Co-ordination type: Type 1 - 10 A miniature circuit breaker (MCB) - curve B; Type 2 - 6 A miniature circuit breaker (MCB) - curve B Maximum leakage current: 0.3 mA off-state Maximum voltage drop: <2.8 V on-state Insulation resistance: 1000 MOhm at 500 V DC Maximum capacitance: 50 pF for input/output Dielectric strength: 2.5 kV AC for input/output; 2.5 kV AC for input or output to case [Uimp] rated impulse withstand voltage: 2.5 kV output to case Tightening torque: 1.5...1.7 N.m for input; 2...2.2 N.m for output Connections - terminals: Screw terminals: 0.2...3.3 mm², (24 AWG...12 AWG) with cable end for input; Screw terminals: 0.5...5.26 mm², (20 AWG...10 AWG) with cable end for output; Screw terminals: 0.2...3.3 mm², (24 AWG...12 AWG) without cable end for input; Screw terminals: 0.5...8.26 mm², (20 AWG...8 AWG) without cable end for output; Forked type tag connectors: 9.2 x 4 mm for input; Ring lugs: 9.2 x 4 mm for input; Forked type tag connectors: 11.7 x 4.5 mm for output; Ring lugs: 11.7 x 4.5 mm for output Thermal resistance: 0.71 °C/W junction to case LED indicator: LED, green for input IP degree of protection: IP20 Safety reliability data: B10d = 1731395; MTTFd = 1875.9 years Product weight: 89.2 g Device presentation: Complete product Ambient air temperature for operation: -40…80 °C Ambient air temperature for storage: -40…125 °C Pollution degree: 2 Overvoltage category: III Product certifications: CE; UL; CSA; EAC Marking: CSA; UL; CE; EAC Standards: IEC 62314; UL 508; CSA C22.2 No 14-13; IEC 60950-1 Number of Units in Package 1: 1 Number of Units in Package 2: 30 Country of origin: MX Warranty (in months): 18
