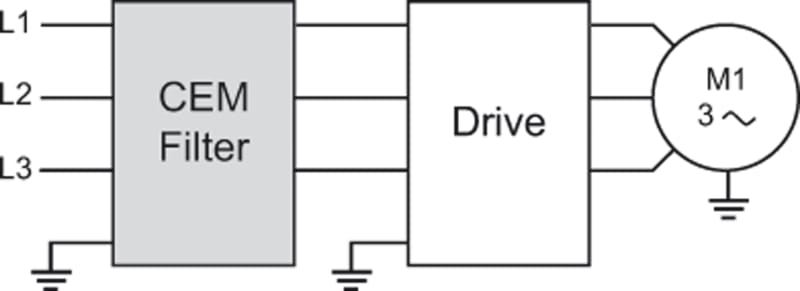

EMC Additional Filter IP20 70A

Schneider Electric VW3A4705 EMC additional filter IP20 70A. Compatible with ATV630 + motor : 15 kW 200.240 V, 30 kW 380.480 V.

Manufacturer part number (MPN)

VW3A4705

EAN / GTIN

3606480736544

Sales unit

pcs

IP rating

IP20

Range of product

Altivar

Product or component type

EMC input filter

Range compatibility

Altivar Process ATV900; Altivar Process ATV600

Product compatibility

Variable speed drive ATV630 wall mount, motor: 30 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 15 kW, 200...240 V; Variable speed drive ATV650 wall mount, motor: 30 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 30 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 15 kW, 200...240 V; Variable speed drive ATV950 wall mount, motor: 30 kW, 380...480 V

Product specific application

Radio interference input filter

[In] rated current

70 A

Thermal losses

10 W

Network number of phases

Three phase

Electrical connection

Terminal 50 mm² 1/0 AWG

Maximum motor cable length

150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V; 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V; 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V; 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V; 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V; 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 380...480 V

maximum earth leakage current

13.9 mA at 400 V 50 Hz TN; 13.9 mA at 400 V 50 Hz TT

power supply voltage

200…240 V; 380…480 V

Tolerance

10 %

Mechanical robustness

Shocks class 3M4 conforming to IEC 60721-3-3; Vibrations class 3M4 conforming to IEC 60721-3-3

Width

100 mm

Height

328 mm

Depth

175 mm

Product weight

6.1 kg

IP degree of protection

IP20mounting side by side; IP21with kit VW3A47905

Relative humidity

5…95 % without condensation conforming to IEC 61800-5-1

Ambient air temperature for operation

-10…50 °C (without current derating); 50…60 °C (with current derating 1.5 % per °C)

Ambient air temperature for storage

-40…70 °C

Operating altitude

0...1000 m without current derating; 1000...4000 m with current derating 1 % per 100 m

Standards

IEC 61800-3

Number of Units in Package 1

1

Number of Units in Package 2

4

Country of origin

CN

Warranty (in months)

18

Type of accessory/spare part

Filter

Accessory

Yes

Spare part

No

HS Code

8548.90

• EAN 3606480736544
• SAP 1000659409
• Code 8659095
