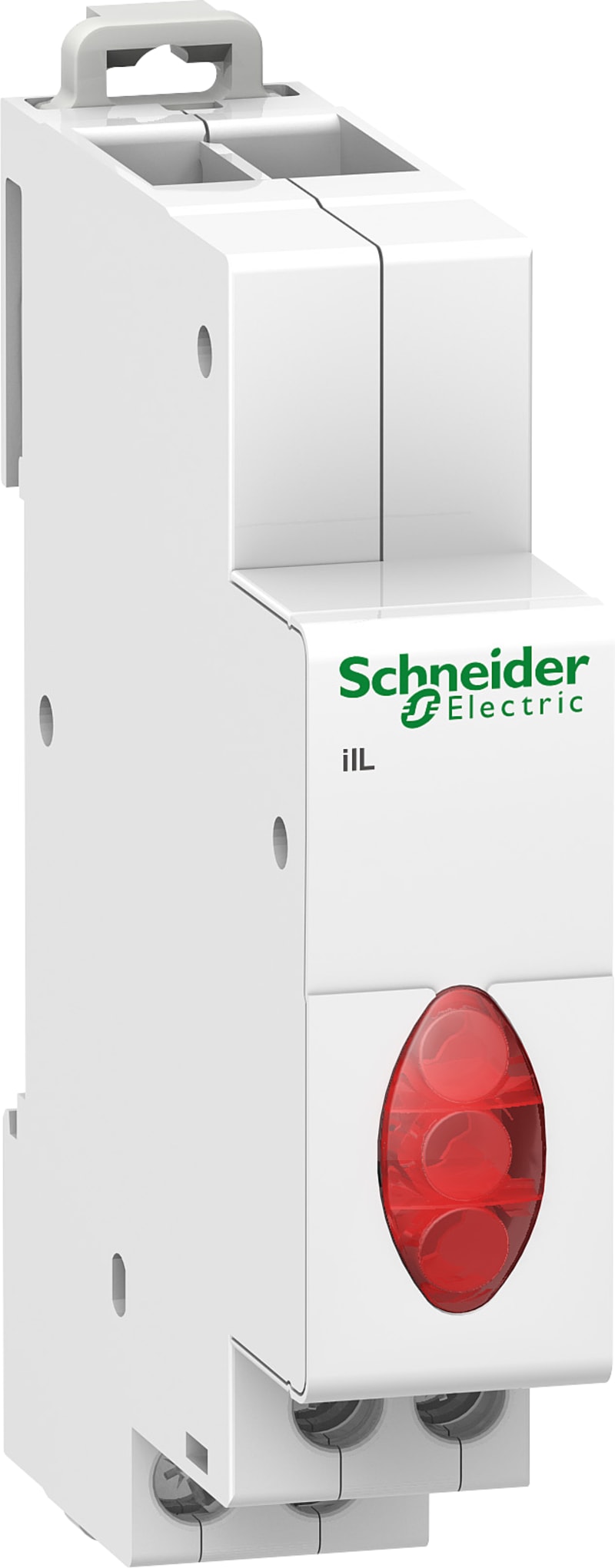

Schneider Electric ACTI9 iIL Three-phase voltage indicator light - Red - 230-400 Vac A9E18327
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9E18327 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Indicator lamp iIL 3-phase red 230/400V.
Technical Specifications
- Manufacturer part number (MPN)
- A9E18327
- EAN / GTIN
- 3606480088391
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Voltage
- 230/400 V
- range of product
- Acti9
- Product name
- Acti9 iIL
- Product or component type
- Modular pilot light
- Device short name
- iIL
- [Us] rated supply voltage
- 230...400 V AC at 50/60 Hz
- indicator light
- 3 LEDs red, service life 100000 h of constant lighting efficiency (consumption 0.9 W)
- mounting mode
- Fixed
- Mounting support
- Symmetrical DIN rail
- Comb busbar and distribution block compatibility
- Upside: ProDis
- 9 mm pitches
- 2
- Height
- 82 mm
- Width
- 18 mm
- Depth
- 69.5 mm
- Colour
- White (RAL 9003)
- Auxiliary connection terminal
- Tunnel type terminal 1 cable(s) rigid 0.5 mm²; Tunnel type terminal 2 cable(s) rigid 2.5 mm²; Tunnel type terminal 1 cable(s) flexible 0.5 mm²; Tunnel type terminal 2 cable(s) flexible 2.5 mm²; Tunnel type terminal 2 cable(s) flexible with ferrule 2.5 mm²
- Wire stripping length
- 9 mm
- Tightening torque
- 1 N.m
- Standards
- IEC 73; IEC 1000-4
- IP degree of protection
- IP2; IPxx B
- Pollution degree
- 3
- Tropicalisation
- 2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -35…70 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Number of Units in Package 3
- 108
- Warranty (in months)
- 18
- Colour calotte
- Red
- Lamp type
- LED
- Max. lamp power
- 0.5 W
- Rated voltage
- 400 V
- Voltage type
- AC
- Width in number of modular spacings
- 1
- Built-in depth
- 69.5 mm
- Degree of protection (IP)
- IP20
- Country of origin
- Belgium
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480088391
- SAP 1000343263
- Code 8378964
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Harmony, Solid state relay, 20 A, DIN rail mount, zero voltage switching, input 4...32 V DC, output 48...600 V AC SSD1A320BDC3
Schneider Electric
Schneider Electric PanelSeT SM vertical adaptation profiles - 1200 mm NSYSMVR12
Schneider Electric
Schneider Electric Solid state relay, 2 A, zero voltage switching, input 3…12 V DC, output 24...280 V AC SSL1A12JD
Schneider Electric
Easy UPS 3S 10KVA 400V 3-3
E3SUPS10KH
Schneider Electric
Schneider Electric Active arc fault detection RCBO, ACTI9 Active ICV40N ARC, 1P+N, 6A, C curve, 30MA, type A-SI, 6000A A9TDFC606
Schneider Electric
NG125L/D 16-2 Modular Power Switch
18840
Schneider Electric
Divisible current transformer HP025 250/5A
METSECT5HP025
Schneider Electric

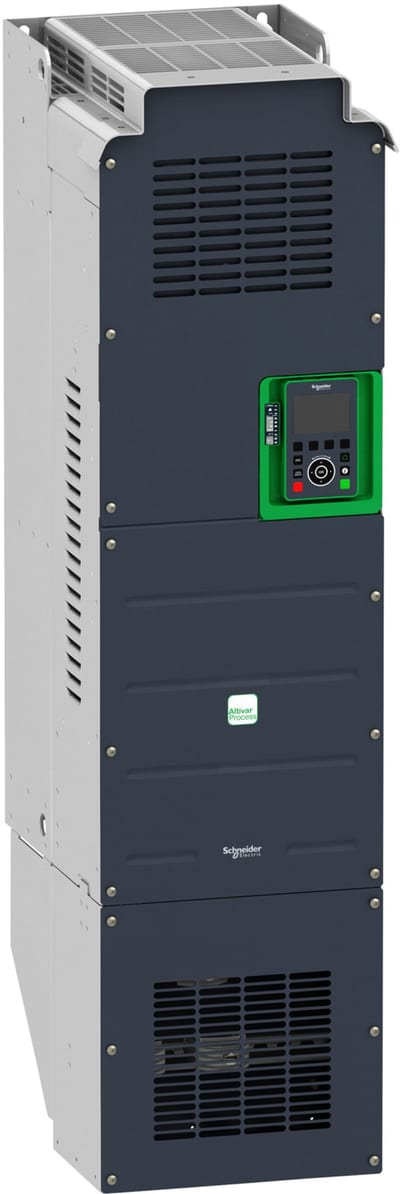

Schneider Electric variable speed drive, ATV930, 110kW, 400/480V, w/o braking unit, IP00 ATV930C11N4C
