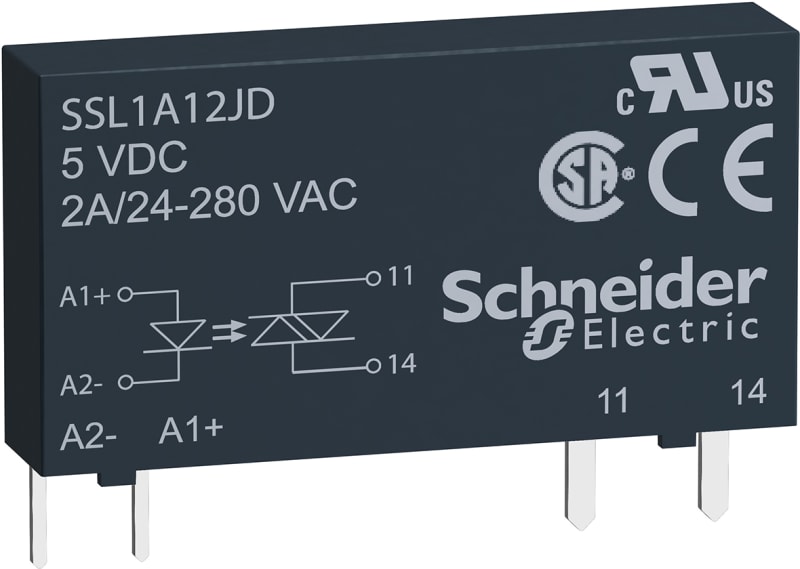

Schneider Electric Solid state relay, 2 A, zero voltage switching, input 3…12 V DC, output 24...280 V AC SSL1A12JD

Schneider Electric SSL1A12JD 1 Phase SSR 280VAC 2A 12VD.

Manufacturer part number (MPN)

SSL1A12JD EAN / GTIN: 3606480579707 Sales unit: pcs Package quantity: 10 pcs Rated current: 2 A Range of product: Harmony Solid State Relays Device short name: SSL Network number of phases: 1 phase [Uc] control circuit voltage: 3...12 V Output switching mode: Zero voltage switching Short-circuit current: 5000 A Associated fuse rating: 2.5 A at 250 V coordination type 1 Ui rated insulation voltage: 280 V Insulation resistance: > 100 MOhm at 500 V DC Electromagnetic compatibility: Electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2; Conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6; Electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4; Surge immunity test - test level: 1 kV criteria B (line to line) conforming to IEC 61000-4-5; Surge immunity test - test level: 2 kV criteria B (line to earth) conforming to IEC 61000-4-5; Surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5; Radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1; Conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage: 4.0 kV for input to case conforming to IEC 62314; 4.0 kV for input/output circuit conforming to IEC 62314; 4.0 kV for input/output circuit conforming to UL 508; 4.0 kV output to case; 4.0 kV output to case conforming to IEC 62314; 4.0 kV for input to case conforming to UL 508; 4.0 kV output to case conforming to UL 508 Mounting support: Socket [In] rated current: 2 A Output voltage: 24...280 V AC Capacitance unbalance: 2.5 pF input/output minimum switching voltage: 3 V DC turn-on Maximum switching voltage: 1 V DC turn-off Input current: 15 mA Input impedance: 400 Ohm Solid state output type: Random voltage switching; SCR output Load current: 0.07…2 A Transient Overvoltage: 600 V Surge current: 84 A for 16.6 ms; 80 A for 20 ms Maximum voltage drop: <1.5 V on-state Maximum I²t for fusing: 33 A².s for 10 ms at 50 Hz; 29 A².s for 8.3 ms at 60 Hz Maximum leakage current: 4 mA off-state DV/dt: 500 V/µs off-state at maximum voltage Response time: 0.5 cycle (turn-on); 0.5 cycle (turn-off) Overvoltage category: III Width: 5 mm Height: 28 mm Depth: 15 mm Product weight: 0.0041 kg Device presentation: Complete product Flame retardance: V0 conforming to UL 94 Dielectric strength: 2500 V for input/output Pollution degree: 2 Standards: IEC/EN 60947-4-3; IEC/EN 62314; UL 508; C22.2 No. 14 Product certifications: cURus; CSA; EAC; CE; UKCA Marking: CE IP degree of protection: IP00 Ambient air temperature for operation: -20…80 °C Ambient air temperature for storage: -20…85 °C Number of Units in Package 1: 1 Number of Units in Package 2: 12 Number of Units in Package 3: 1080 Country of origin: MX Warranty (in months): 18 Degree of protection (IP): IP00 Voltage type for actuating: AC/DC Rated operation current Ie at AC-1: 2 A Rated operation current Ie at AC-3: 2 A Rated operation current Ie at AC-51: 2 A Rated operation current Ie at AC-53a: 2 A Rated operation current Ie at AC-53b: 2 A Number of phases: 1 Suitable for distribution board: Yes Switching at zero-crossing: Yes

HS Code

8536.49

• EAN 3606480579707
• SAP 1000665040
• Code 8672768
