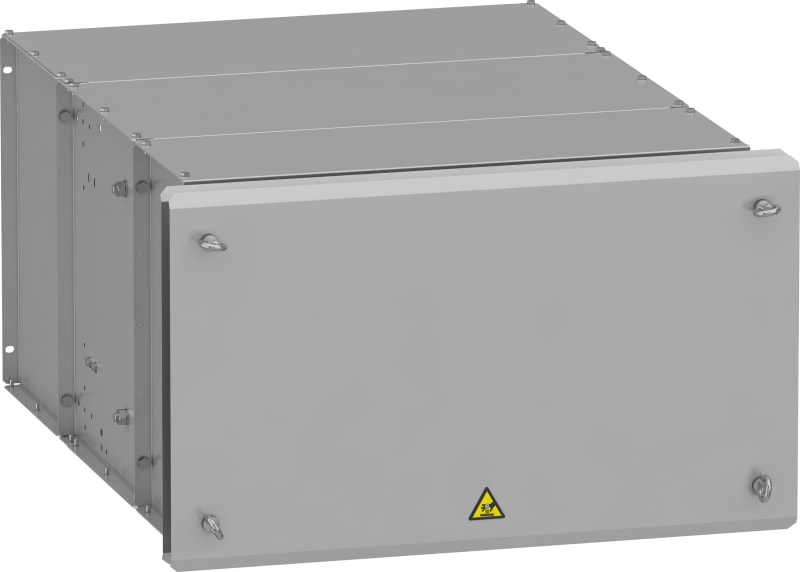

Schneider Electric braking resistor - 10 ohms - 19 kW - IP23 VW3A7754
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7754 Braking resistor 10 ohms 19kW IP23.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7754
- EAN / GTIN
- 3606480802461
- Sales unit
- pcs
- Power
- 19 kW
- Resistance
- 10 Ω
- Range compatibility
- Altivar Machine ATV340; Altivar Process ATV900
- Product or component type
- Braking resistor
- Ohmic value
- 10 Ohm
- [Ue] rated operational voltage
- 24 V DC; 250 V AC
- Product compatibility
- Variable speed drive ATV930 wall mount 37 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 45 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 90 kW 380...480 V severe cycle; Variable speed drive ATV950 wall mount 37 kW 380...480 V severe cycle; Variable speed drive ATV950 wall mount 45 kW 380...480 V severe cycle; Variable speed drive ATV950 wall mount 90 kW 380...480 V severe cycle; Variable speed drive ATV340 30 kW 380...480 V severe cycle; Variable speed drive ATV340 37 kW 380...480 V severe cycle; Variable speed drive ATV340 75 kW 380...480 V severe cycle 2 per drive; Variable speed drive ATV930 45 kW 500...690 V severe cycle; Variable speed drive ATV930 55 kW 500...690 V severe cycle; Variable speed drive ATV930 60 hp 600 V severe cycle; Variable speed drive ATV930 75 hp 600 V severe cycle
- Duty cycle
- Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle ; Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
- Average power available
- 19 kW at 50 °C
- Electrical connection
- terminal, connection capacity: <= 2.5 mm² / 12 AWG for temperature control switch; M12 bar wire for drive
- Protection type
- Thermal protection via drive or temperature control switch at 120 °C
- Width
- 540 mm
- Height
- 1035 mm
- Depth
- 860 mm
- Product weight
- 71 kg
- IP degree of protection
- IP23
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Number of Units in Package 1
- 1
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
