Top plate IP30 PrismaSeT P B300 D400
Pricing
Request a quote
We reply within 24 hours
Product Description

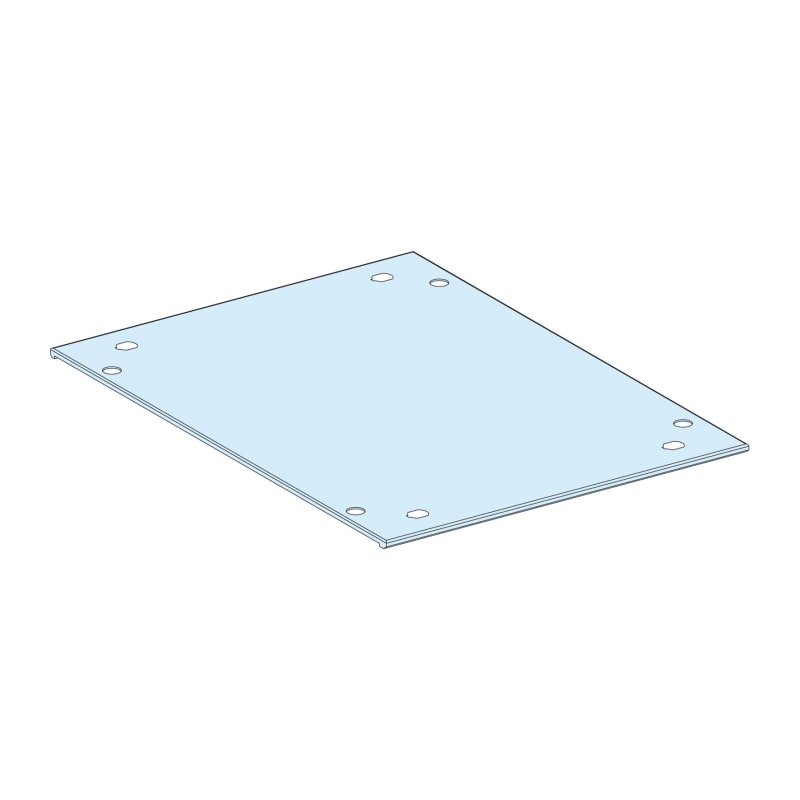

Schneider Electric LVS08433 Top plate IP30 PrismaSeT P-width 300mm depth 400mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08433
- EAN / GTIN
- 3606481877253
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Roof
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure
- installation description
- Cubicle duct - width 300 mm, depth 400 mm
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Special colour options
- Yes
- Width
- 300 mm
- Depth
- 400 mm
- Product weight
- 1.36 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP30 for enclosure
- IK degree of protection
- IK08
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Warranty (in months)
- 18
- RAL-number
- 9003
- With cable entry
- No
- Suitable for enclosure building width
- 300 mm
- Suitable for enclosure building depth
- 400 mm
- With de-aeration
- No
- Suitable for outdoor set-up
- No
- Surface finishing
- Powder coating
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- No
- Suitable for outdoor installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481877253
- SAP 1200547564
- Code 82879163
Product Documentation
More from Schneider Electric
Schneider Electric
Innmuringsboks 1 outlet Unika
83924
Schneider Electric
Universal Connection NSX100-250/INS250 G/P
LVS04061
Schneider Electric
Sign in plastic with text (ZBYP2303)
Schneider Electric
Schneider Electric power relay plug-in - Harmony RPF - 2 CO - 24 V AC - 30 A RPF2BB7
Schneider Electric
LED lamp 8mm 12V RED (XVLA224)
Schneider Electric

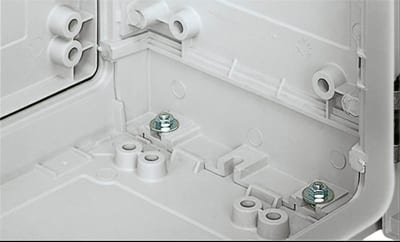

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 500X500X420 IP44 NSYPLAZT554G
Schneider Electric

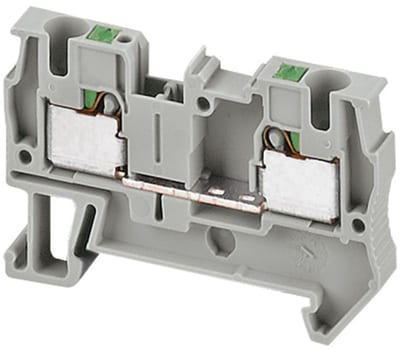

Schneider Electric NSYTRP42 Linergy TR Push-In Feed-Through Terminal Block 4 mm² Grey 2-Position
