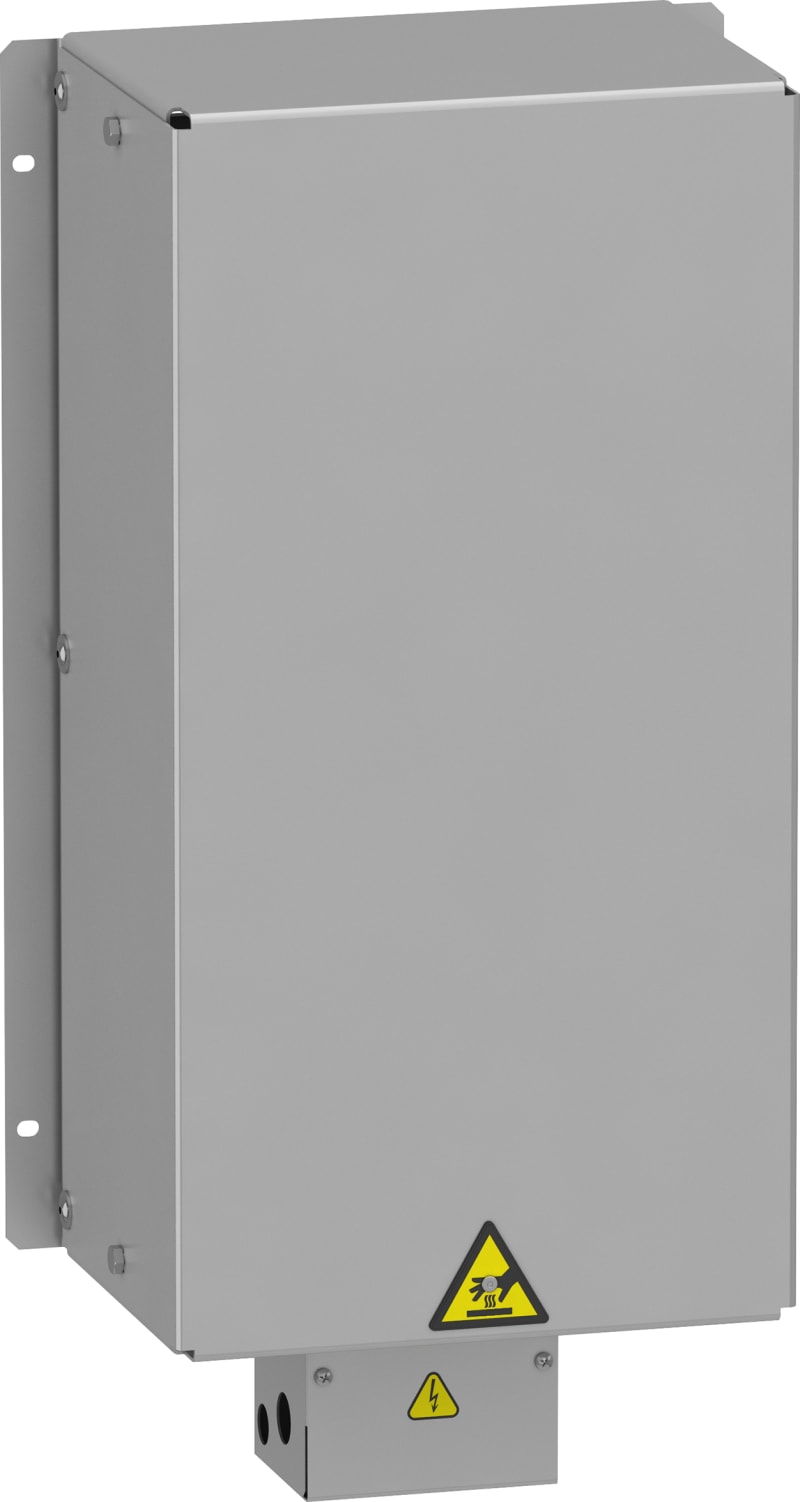

Schneider Electric braking resistor - 100 ohms - 1.7 kW - IP20 VW3A7750

Schneider Electric VW3A7750 Braking resistor 100 ohms 1,4kW IP20.

Manufacturer part number (MPN)

VW3A7750

EAN / GTIN

3606480802423

Sales unit

pcs

Power

1.4 kW

Resistance

100 Ω

Range compatibility

Altivar Machine ATV340; Altivar Process ATV900

Product or component type

Braking resistor

Ohmic value

100 Ohm

[Ue] rated operational voltage

24 V DC; 250 V AC

Product compatibility

Variable speed drive ATV930 wall mount 0.75 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 1.5 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 2.2 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 3 kW 380...480 V severe cycle; Variable speed drive ATV930 wall mount 4 kW 380...480 V severe cycle; Variable speed drive ATV950 wall mount 0.75 kW 380...480 V severe cycle; Variable speed drive ATV950 wall mount 1.5 kW 380...480 V severe cycle; Variable speed drive ATV950 wall mount 2.2 kW 380...480 V severe cycle; Variable speed drive ATV950 wall mount 3 kW 380...480 V severe cycle; Variable speed drive ATV950 wall mount 4 kW 380...480 V severe cycle; Variable speed drive ATV340 0.75 kW 380...480 V severe cycle; Variable speed drive ATV340 1.5 kW 380...480 V severe cycle; Variable speed drive ATV340 2.2 kW 380...480 V severe cycle; Variable speed drive ATV340 3 kW 380...480 V severe cycle; Variable speed drive ATV930 2.2 kW 500...690 V severe cycle; Variable speed drive ATV930 3 kW 500...690 V severe cycle; Variable speed drive ATV930 4 kW 500...690 V severe cycle; Variable speed drive ATV930 5.5 kW 500...690 V severe cycle; Variable speed drive ATV930 3 hp 600 V severe cycle; Variable speed drive ATV930 5 hp 600 V severe cycle; Variable speed drive ATV930 7.5 hp 600 V severe cycle

Duty cycle

Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle ; Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle

Average power available

1.7 kW at 50 °C

Electrical connection

terminal, connection capacity: <= 10 mm² / 8 AWG for drive; terminal, connection capacity: <= 2.5 mm² / 12 AWG for temperature control switch

Protection type

Thermal protection via drive or temperature control switch at 120 °C

Width

290 mm

Height

570 mm

Depth

180 mm

Product weight

5 kg

IP degree of protection

IP20

Ambient air temperature for storage

-25…70 °C

Ambient air temperature for operation

0…50 °C

Number of Units in Package 1

1

Number of Units in Package 2

4

Country of origin

DE

Warranty (in months)

18

Type of accessory/spare part

Breaking resistance

Accessory

Yes

Spare part

No

HS Code

8533.29
