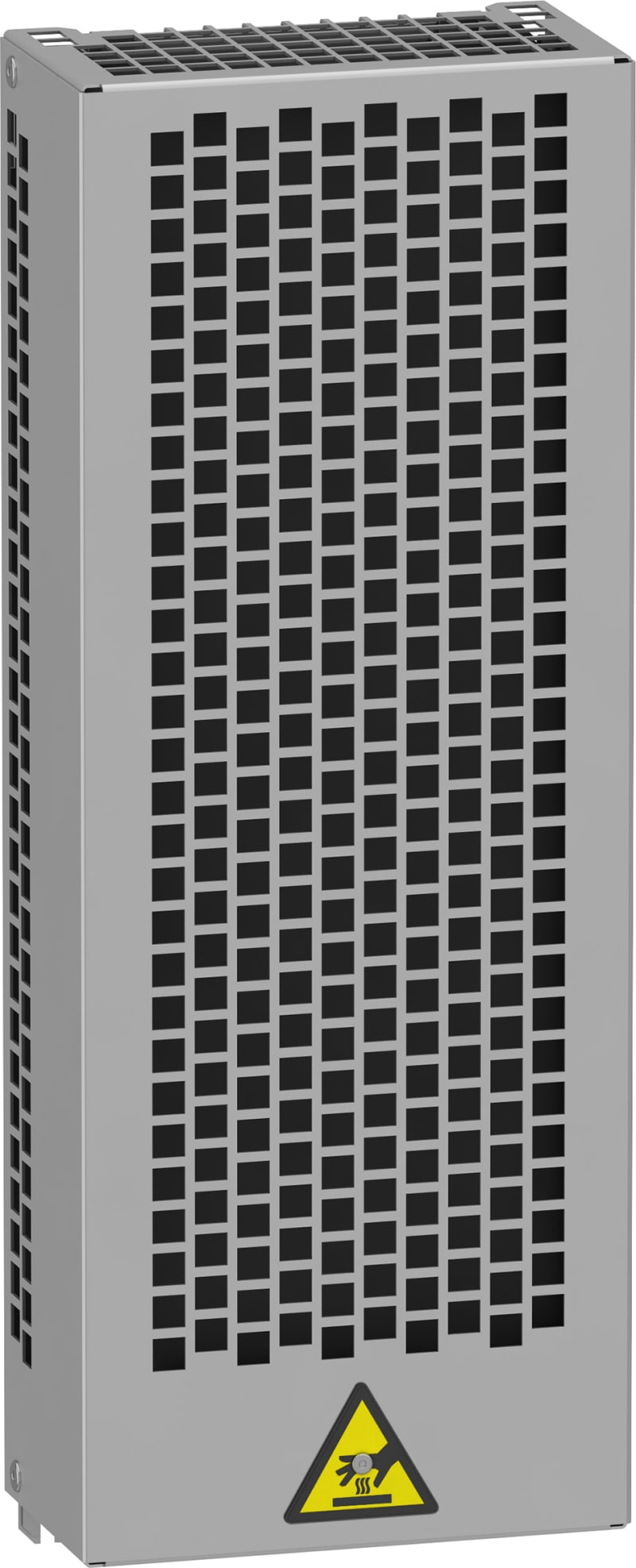

Schneider Electric braking resistor - 60 ohms - 0.5 kW - IP20 VW3A7741
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7741 Braking resistor 60 ohms 0,5kW IP20.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7741
- EAN / GTIN
- 3606480802348
- Sales unit
- pcs
- Power
- 0.5 kW
- Resistance
- 60 Ω
- Range compatibility
- Altivar Process ATV900; Altivar Machine ATV340
- Product or component type
- Braking resistor
- Ohmic value
- 60 Ohm
- Product compatibility
- Variable speed drive ATV930 wall mount 5.5 kW 380...480 V medium cycle; Variable speed drive ATV930 wall mount 7.5 kW 380...480 V medium cycle; Variable speed drive ATV950 wall mount 5.5 kW 380...480 V medium cycle; Variable speed drive ATV950 wall mount 7.5 kW 380...480 V medium cycle; Variable speed drive ATV930 wall mount 1.5 kW 200...240 V severe cycle; Variable speed drive ATV340 4 kW 380...480 V medium cycle; Variable speed drive ATV340 5.5 kW 380...480 V medium cycle; Variable speed drive ATV930 7.5 kW 500...690 V medium cycle; Variable speed drive ATV930 11 kW 500...690 V medium cycle; Variable speed drive ATV930 10 hp 600 V medium cycle; Variable speed drive ATV930 15 hp 600 V medium cycle
- Duty cycle
- Severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle ; Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle ; Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle ; Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
- Average power available
- 0.5 kW at 50 °C
- Electrical connection
- terminal, connection capacity: <= 10 mm² / 8 AWG for drive
- Protection type
- Thermal protection via drive
- Width
- 175 mm
- Height
- 465 mm
- Depth
- 100 mm
- Product weight
- 3.8 kg
- IP degree of protection
- IP20
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 3606480802348
- SAP 1200020040
- Code 81392214
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PratiKa socket - screw - angled - 32A - 3P + N + E - 380...415 V AC - wall PKF32W735
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 12A, 24V DC coil, snap-in terminals LC1D12ABD
Schneider Electric
Schneider Electric Illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC, push in XB4BW31B55
Schneider Electric
Soft starter 11kW 25A 110-480V
ATS01N125FT
Schneider Electric

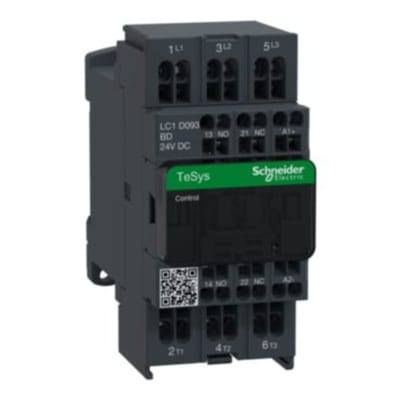

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 9A, 24V DC coil, spring terminals LC1D093BD
Schneider Electric

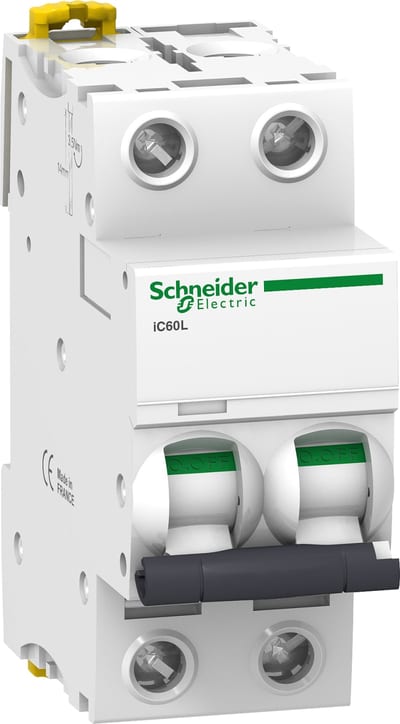

Schneider Electric A9F93263 ACTI9 IC60L Miniature Circuit Breaker 2P 63 A, Curve B
