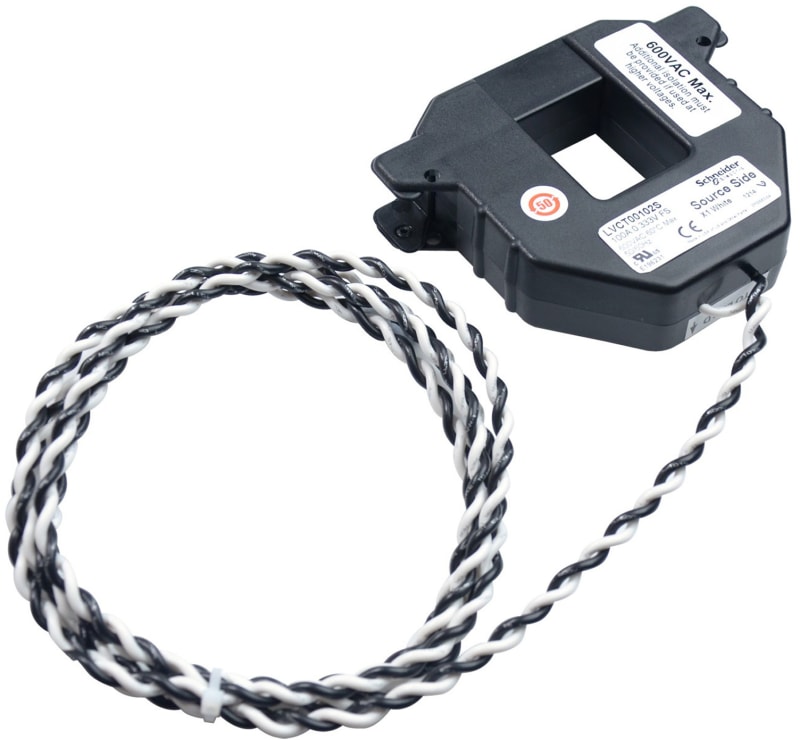

Schneider Electric LVCT 100 A - 0.333 V output - split core CT - 31 mm x 100 mm LVCT00102S
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVCT00102S LVCT 100 A – 0,333 V output – with split core – 31 mm x 100 mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVCT00102S
- EAN / GTIN
- 3606480299612
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Rated current
- 100 A
- Range
- PowerLogic
- Device short name
- LVCT
- Product or component type
- Current transformer
- output voltage
- 0.333 V
- Electrical connection
- Cable: 1.8 m (18 AWG) 600 V
- Product destination
- BCPM; BCPMSC; Enercept; IEM3000; EM3500; EM4200; EM4900
- Accessory / separate part category
- Measurement accessory
- Current transformer type
- Split core balance
- [In] rated current
- 100 A
- Network frequency
- 50/60 Hz
- Range compatibility
- PowerLogic PowerLogic BCPM BCPMA multi-circuit energy meter; PowerLogic PowerLogic BCPM BCPMB multi-circuit energy meter; PowerLogic PowerLogic BCPM BCPME multi-circuit energy meter; PowerLogic PowerLogic BCPMSC BCPMSCA multi-circuit energy meter; PowerLogic PowerLogic BCPMSC BCPMSCB multi-circuit energy meter; PowerLogic PowerLogic BCPMSC BCPMSCE multi-circuit energy meter; PowerLogic PowerLogic EM3500 EM3502 energy meter; PowerLogic PowerLogic EM3500 EM3550 energy meter; PowerLogic PowerLogic EM3500 EM3555 energy meter; PowerLogic PowerLogic EM3500 EM3560 energy meter; PowerLogic PowerLogic EM3500 EM3561 energy meter; PowerLogic PowerLogic EM4200 EM4235 energy meter; PowerLogic PowerLogic EM4200 EM4236 energy meter; PowerLogic PowerLogic EM4900 EM4904 multi-circuit energy meter; PowerLogic PowerLogic EM4900 EM4908 multi-circuit energy meter; PowerLogic PowerLogic EM4900 EM4914 multi-circuit energy meter; PowerLogic PowerLogic EM4900 EM4928 multi-circuit energy meter; Acti 9 Acti9 iEM3000 iEM3455 energy meter; Acti 9 Acti9 iEM3000 iEM3465 energy meter
- Measurement accuracy
- 1 % 10...100 %
- Relative humidity
- 95 %
- Ambient air temperature for operation
- -15…60 °C
- Ambient air temperature for storage
- -40…70 °C
- Standards
- UL 61010
- Width
- Internal: 31 mm; External: 121 mm
- Depth
- 30 mm
- Height
- Internal: 30 mm; External: 100 mm
- Product weight
- 0.34 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 7
- Country of origin
- US
- Warranty (in months)
- 18
- Model
- Cable rebuilding current converter
- Rated primary current
- 100 A
- Accuracy class
- 1
- Calibrated
- No
- With contact protection
- No
- Height opening
- 31 mm
- Width opening
- 100 mm
- Snap mounting
- No
- With copper rail
- No
- Number of primary inputs
- 1
- Secondary connection
- Cable
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 3606480299612
- SAP 1200108131
- Code 81976134
