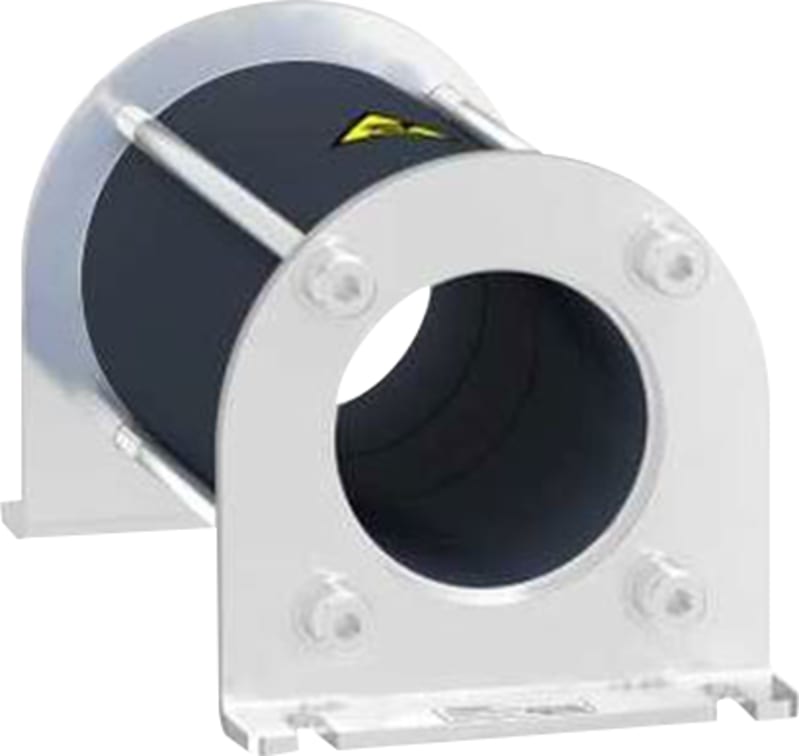

Commenmodefilter t/ 0,75-11kW (VW3A5501)

Schneider Electric VW3A5501 Common mode filter m/ 4 cores D1.

Manufacturer part number (MPN)

VW3A5501

EAN / GTIN

3606485435763

Sales unit

pcs

Product or component type

Common mode output filter

Range compatibility

Altivar Process ATV900; Altivar Process ATV600

Value of inductance

146.4 µH

Product compatibility

Variable speed drive ATV630 wall mount, 0.75…11 kW, 380...480 V; Variable speed drive ATV650 wall mount, 0.75…11 kW, 380...480 V; Variable speed drive ATV930 wall mount, 0.75…11 kW, 380...480 V; Variable speed drive ATV950 wall mount, 0.75…11 kW, 380...480 V; Variable speed drive ATV630 wall mount, 0.75…5.5 kW, 200...240 V; Variable speed drive ATV930 wall mount, 0.75…5.5 kW, 200...240 V

Maximum motor cable length

150 m(unshielded cable) motor: 0.75…11 kW 380...480 V, with 1 filter; 150 m(shielded cable) motor: 0.75…4 kW 380...480 V, with 1 filter; 300 m(shielded cable) motor: 5.5…11 kW 380...480 V, with 2 filter; 500 m(unshielded cable) motor: 0.75…4 kW 380...480 V, with 2 filter; 500 m(unshielded cable) motor: 5.5…11 kW 380...480 V, with 1 filter + VW3A5501; 500 m(shielded cable) motor: 0.75…4 kW 380...480 V, with 2 filter; 1000 m(unshielded cable) motor: 0.75…5.5 kW 380...480 V, with 1 filter + VW3A5501; 150 m(unshielded cable) motor: 0.75…5.5 kW 200...240 V, with 1 filter; 150 m(shielded cable) motor: 0.75…4 kW 200...240 V, with 1 filter; 300 m(shielded cable) motor: 5.5 kW 200...240 V, with 2 filter; 500 m(unshielded cable) motor: 0.75…4 kW 200...240 V, with 2 filter; 500 m(unshielded cable) motor: 5.5 kW 200...240 V, with 1 filter + VW3A5502; 500 m(shielded cable) motor: 0.75…4 kW 200...240 V, with 2 filter; 1000 m(unshielded cable) motor: 0.75…4 kW 200...240 V, with 1 filter + VW3A5501

Saturation current

1.1 A

internal diameter

37.1 mm for 3-phase cable inside; 37.1 mm for PE cable outside

Electrical insulation class

Class I

Mechanical robustness

Shocks class 3M4 conforming to IEC 60721-3-3; Vibrations class 3M4 conforming to IEC 60721-3-3

Switching frequency

<= 10 kHz

Maximum output frequency

100 Hz

Height

119.2 mm

Width

66 mm

Depth

66 mm

Product weight

0.44 kg

Relative humidity

5…95 % without condensation

Ambient air temperature for operation

-15…60 °C

Ambient air temperature for storage

-40…70 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.000 cm

Package 1 Width

22.000 cm

Package 1 Length

11.500 cm

Package 1 Weight

648.000 g

Unit Type of Package 2

P06

Number of Units in Package 2

75

Package 2 Height

75.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

59.656 kg

Warranty (in months)

18

Suitable as sinus filter

No

Suitable as du/dt-filter

No

Suitable as radio interference suppression filter

No

Suitable as audio frequency blockage

No

Number of poles, primary side

3

Rated clock frequency

10 kHz

Max. rated operation voltage Ue

480 V

Country of origin

Thailand

HS Code

8548.00

• EAN 3606485435763
• SAP 1000743676
• Code 8421311
