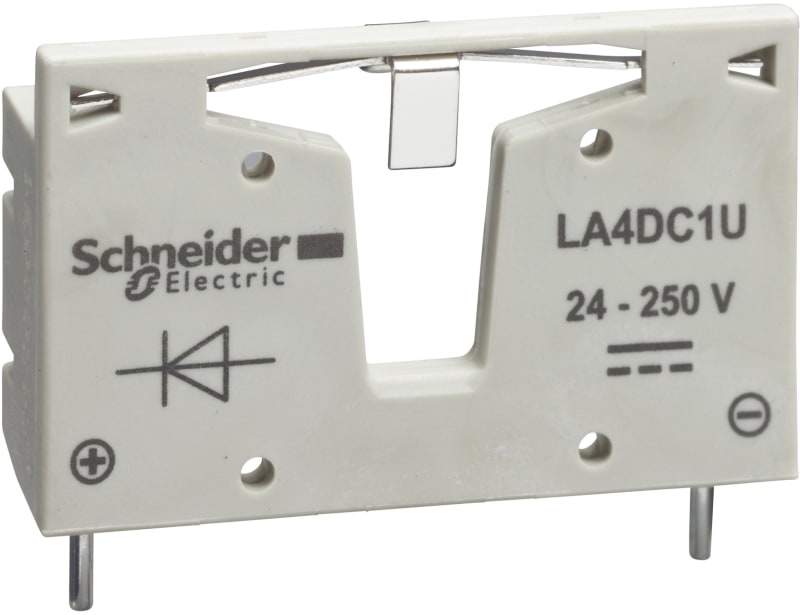

Schneider Electric TeSys D - suppressor module - diodes - 12...250 V DC LA4DC1U
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LA4DC1U Dempediode,24/250V,For D09-D95.
Technical Specifications
- Manufacturer part number (MPN)
- LA4DC1U
- EAN / GTIN
- 3389110233162
- Sales unit
- pcs
- Range
- TeSys
- Device short name
- LA4D
- Product or component type
- Suppressor module
- Product compatibility
- 3P LP1D09...LP1D32
- mounting mode
- By screws
- Suppressor technology
- Flywheel diode
- [Uc] control circuit voltage
- 24...250 V DC
- Maximum peak voltage
- 1 Uc
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…80 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.100 cm
- Package 1 Width
- 2.800 cm
- Package 1 Length
- 4.200 cm
- Package 1 Weight
- 14.000 g
- Unit Type of Package 2
- S01
- Number of Units in Package 2
- 78
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 15.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 1.308 kg
- Country of origin
- BG
- Warranty (in months)
- 18
- Function
- Diode
- Rated control supply voltage DC
- 12–250 V
- Voltage type (operating voltage)
- DC
- With LED indication
- No
- Operating voltage DC
- 12–250 V
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3389110233162
- SAP 1000073871
- Code 8742103
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 48V DC low consumption coil, snap-in terminals LC1D18AEL
Schneider Electric
Schneider Electric Speed monitoring 2 HTL encoder expansion module with spring term XPSMCMEN0200HTG
Schneider Electric
Key switch 3-Pos momentary
ZB4BG8
Schneider Electric
Upper+lower frame SFN 800X600
NSYSFNC86
Schneider Electric
Coil connection 1-DIRECTION FOR LULC15
LU9BN11L
Schneider Electric
Illuminated Push Button yellow LED (ZB5AW383)
Schneider Electric

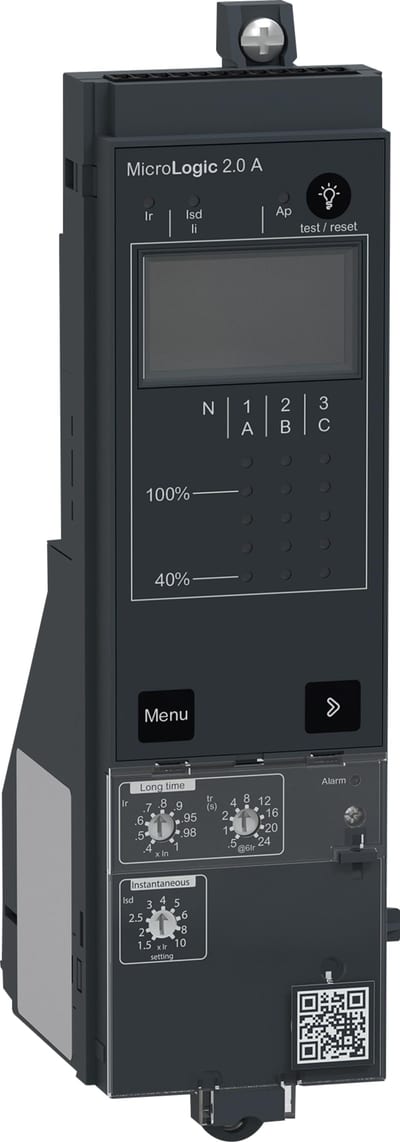

Schneider Electric Control unit MicroLogic 2.0A, ComPacT NS630B to NS3200 fixed and manually operated, basic protections C2AFM
Schneider Electric

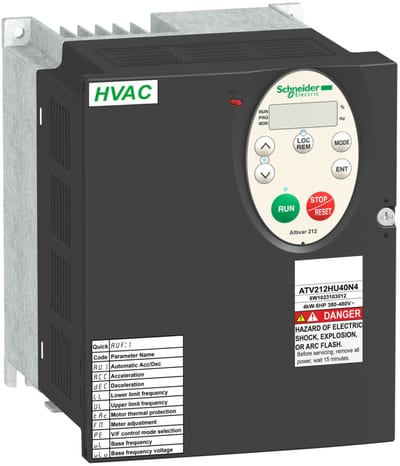

Schneider Electric variable speed drive ATV212 - 3kW - 480V - 3PH - EMC - IP21 ATV212HU30N4
