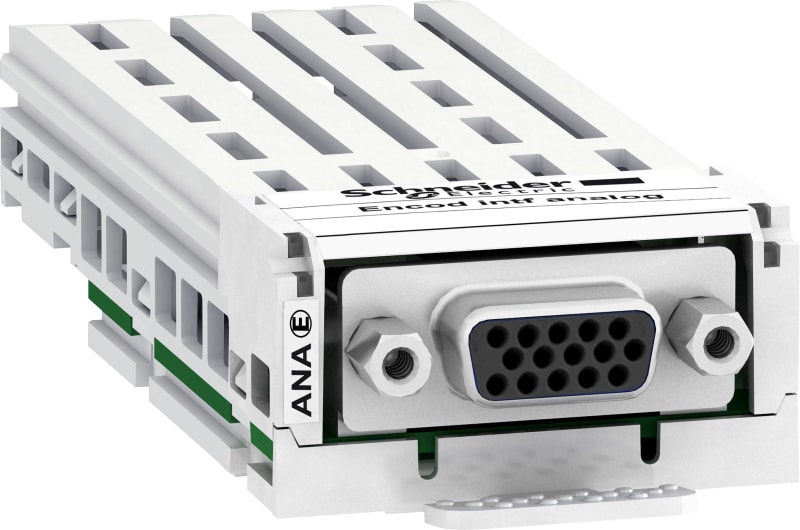

Schneider Electric analog encoder interface module VW3A3422

Schneider Electric VW3A3422 Analog encoder module.

Manufacturer part number (MPN)

VW3A3422

EAN / GTIN

3606485441269

Sales unit

pcs

Package quantity

16 pcs

Range of product

Altivar

Product or component type

Analog encoder interface module

Range compatibility

Altivar Machine ATV340; Altivar Process ATV900; Altivar Process Modular

Encoder type

SinCos Hiperface; 1 Vpp

[Us] rated supply voltage

5 V DC (voltage limits: 4.75…5.25 V); 12 V DC (voltage limits: 11.4…12.6 V); 24 V DC (voltage limits: 22.8…25.2 V)

Maximum supply current

0.25 A at 5 V DC; 0.1 A at 12 V DC; 0.05 A at 24 V DC

Protection type

Overload protection; Short-circuit protection

Maximum cable distance between devices

100 m

Maximum operating frequency

100 kHz

Input signal

Data+, Data-, Its, RefSin, Cos, RefCos, Temp+, Temp-

Output signal

Data+, Data-

Connector type

1 female high density SUB-D 15

Product weight

0.15 kg

Number of Units in Package 1

1

Number of Units in Package 2

16

Country of origin

ID

Warranty (in months)

18

Type of accessory/spare part

Encoder input module

Accessory

Yes

Spare part

No

HS Code

8517.62

• EAN 3606485441269
• SAP 1200020025
• Code 81392601
