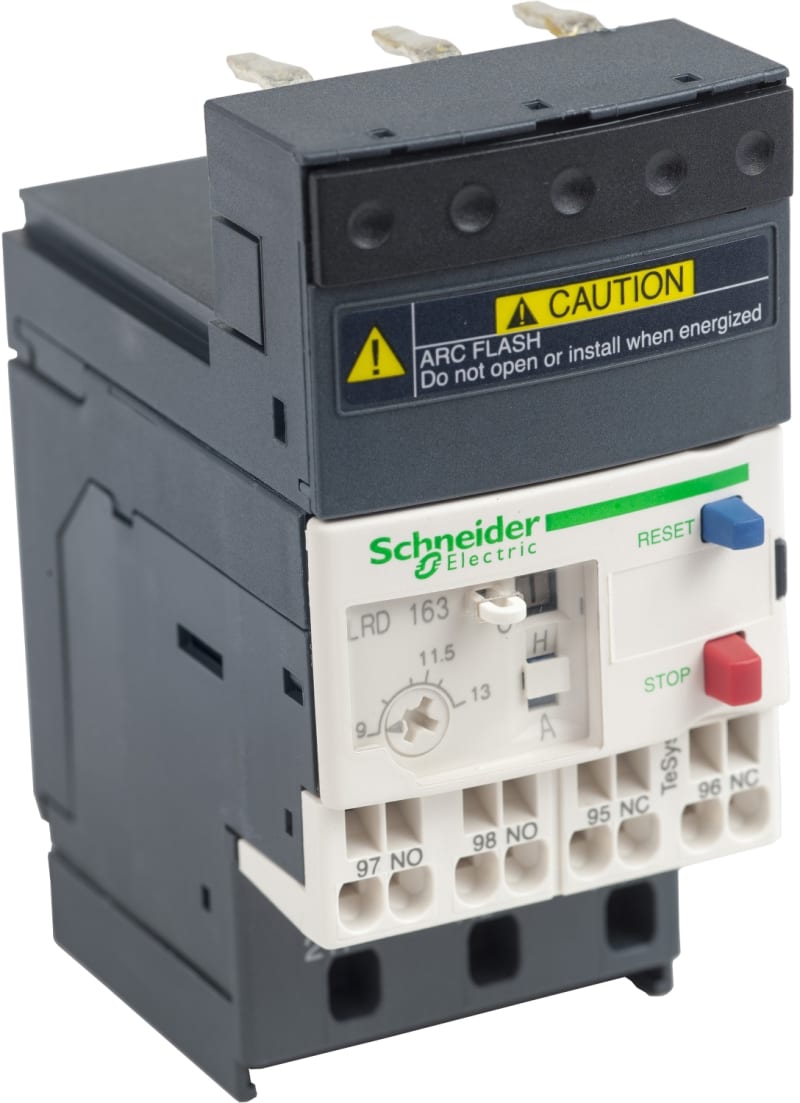

Schneider Electric Thermal overload relay,TeSys Deca,9-13A,1NO+1NC,class 10A,spring terminal LRD163

Schneider Electric LRD163 — TeSys thermal overload relay. Bimetallic thermal overload relay for motor protection. Thermal relay 9-13A Spring.

Manufacturer part number (MPN)

LRD163

EAN / GTIN

3389110822380

HS code

8536.90

Sales unit

pcs

Package quantity

23 pcs

Setting range

9-13 A

Range

TeSys; TeSys Deca

Product name

TeSys LRD; TeSys Deca

Product or component type

Differential thermal overload relay

Device short name

LRD

Relay application

Motor protection

Product compatibility

LC1D18; LC1D12; LC1D32; LC1D25; LC1D38

Network type

DC; AC

Thermal overload class

Class 10A conforming to IEC 60947-4-1

Thermal protection adjustment range

9…13 A

[Ui] rated insulation voltage

Power circuit: 600 V conforming to CSA; Power circuit: 600 V conforming to UL; Power circuit: 690 V conforming to IEC 60947-4-1

Network frequency

0...400 Hz

Mounting support

Plate, with specific accessories; Rail, with specific accessories; Under contactor

Tripping threshold

1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Auxiliary contact composition

1 NO + 1 NC

[Ith] conventional free air thermal current

5 A for signalling circuit

Permissible current

3 A at 120 V AC-15 for signalling circuit; 0.22 A at 125 V DC-13 for signalling circuit

[Ue] rated operational voltage

690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Associated fuse rating

4 A gG for signalling circuit; 4 A BS for signalling circuit

[Uimp] rated impulse withstand voltage

6 kV

Phase failure sensitivity

Tripping current 130 % of Ir on two phase, the last one at 0

Control type

Red push-button: stop; Blue push-button: reset

Temperature compensation

-20…60 °C

Connections - terminals

Control circuit: spring terminals 1 cable(s) 1…2.5 mm² solid without cable end; Control circuit: spring terminals 1 cable(s) 1…2.5 mm² flexible without cable end; Power circuit: spring terminals 1 cable(s) 1.5…4 mm² flexible without cable end; Power circuit: spring terminals 1 cable(s) 1.5…4 mm² flexible with cable end

Height

93 mm

Width

45 mm

Depth

72 mm

Product weight

0.14 kg

Climatic withstand

conforming to IACS E10

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20…60 °C without derating conforming to IEC 60947-4-1

Ambient air temperature for storage

-60…70 °C

Flame retardance

V1 conforming to UL 94

Mechanical robustness

Vibrations: 6 Gn conforming to IEC 60068-2-6; Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Dielectric strength

1.89 kV at 50 Hz conforming to IEC 60947-1

Standards

EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1; CSA C22.2 No 60947-4-1; CSA C22.2 No 60947-5-1; GB/T 14048.4; GB/T 14048.5; EN 50495

Product certifications

IEC; UL; CSA; CCC; EAC; BV; RINA; DNV-GL; LROS (Lloyds register of shipping); ATEX INERIS; UKCA

Warranty (in months)

18
