Product Description

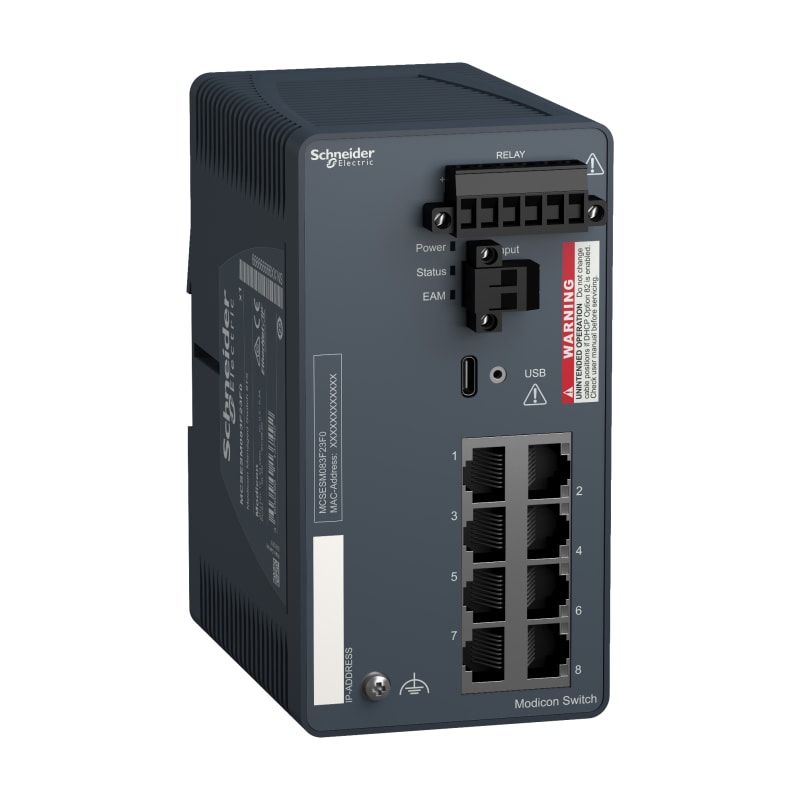

Schneider Electric MCSESM083F23F0 Modicon Ethernet Managed Switch 8TX.
Technical Specifications
- Manufacturer part number (MPN)
- MCSESM083F23F0
- EAN / GTIN
- 3606481463296
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range of product
- Modicon Networking
- Product or component type
- Ethernet TCP/IP managed switch
- Communication port protocol
- Ethernet TCP/IP; SSH; HTTP; HTTPS; SNMP; SFTP; SCP; LLDP; Telnet; SNTP; Modbus TCP; OPC UA; IEC 61850 MMS Server
- Port Ethernet
- 10/100BASE-TX - 8 port(s) copper cable
- Maximum number of switches in cascade
- Unlimited
- Cybersecurity
- Port hardening; IP-based port security; MAC-based port security; Port-based access control; Role-based access control; RADIUS assignment; HTTPS; DoS prevention; VLAN-based ACL; Audit trail; SNMP logging; Pre-login banner; TACACS+
- Integrated connection type
- Shielded RJ45 copper cable
- Transmission support medium
- Twisted shielded pairs cable CAT 5E for copper cable
- Maximum cable distance between devices
- 100 m copper cable
- Ethernet service
- Configuration via web server; VLAN; Multicast filtering; Data stream control; IGMP Snooping; SNMP-Traps and SYSLOG
- Communication service
- TFTP; Quality of Service (QoS); Port monitoring; Port mirroring; Address conflict detection
- Diagnostics run time
- Signal contact; Self test; MAC notification; RSPAN; SFLOW
- Maximum number of switches in a ring
- 50
- Redundancy
- HiPER ring; RSTP; Link aggregation; Link backup; Redundant network coupling; MRP; Redundant coupling protocol; MSTP
- Supply voltage
- 12...24 V
- Supply voltage limits
- 9.6…32 V DC SELV
- Power consumption in W
- 6 W
- Electrical connection
- Removable connector 6 ways power supply
- Mounting support
- 35 mm symmetrical DIN rail
- Marking
- CE; CULus; RCM
- Function available
- Security status; Alarms (Traps); System information; Report
- Local signalling
- 1 dual colour LED (green/yellow) for P1 P2 power supplies; 1 dual colour LED (green/red) for device status; 1 dual colour LED (green/yellow) for memory key status; 1 dual colour LED (green/yellow) for channel diagnostic
- Alarm output
- 1 voltfree contact 1 A
- Alarm function
- Power supply fault; Data link status; Switch fault; Temperature threshold; Redundancy ring fault; Incorrect configuration; External memory removed
- Ethernet cabling system
- TF switches
- Width
- 73 mm
- Height
- 142.8 mm
- Depth
- 117.6 mm
- Product weight
- 0.42 kg
- Ambient air temperature for operation
- 0…60 °C
- Relative humidity
- 1…95 % non-condensing
- IP degree of protection
- IP30
- Directives
- 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
- Standards
- UL 61010-2-201; EN/IEC 61131-2; IEC 61850-3; IEC 62443-4-2; EN 50121-4
- Product certifications
- CE; UL; RCM; DNV; ATEX; EAC; UKCA; CSA C22-2 No 213; UKEX; FCC part 15 class A; CCC Ex
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 32
- Country of origin
- DE
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481463296
- SAP 1200722611
- Code 83857064
