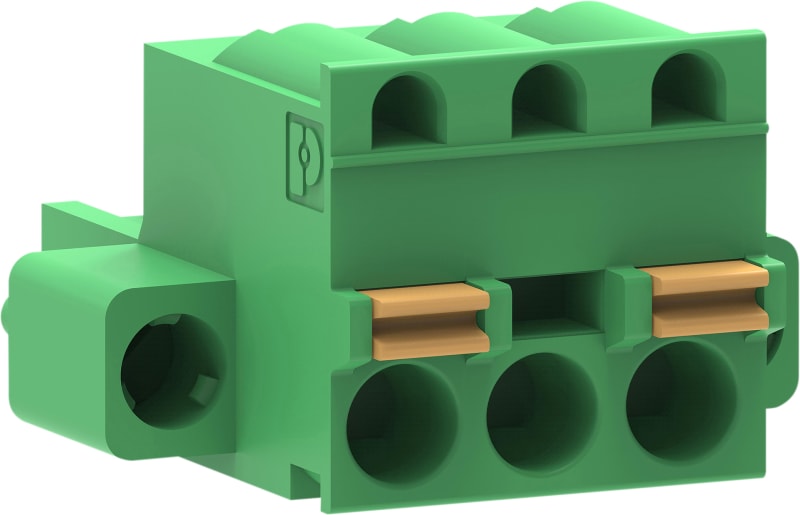

Schneider Electric Spring terminal connector for contactor coil, TeSys Giga, 3-pin, push-in, <=600 V 50/60 Hz, 10 A LA9G81

Push-in spring terminal connector for the control coil of TeSys Giga contactors, supplied as a set of one. Three pins, rated operational voltage [Ue] up to 600 V at 50/60 Hz and rated operational current [Ie] 10 A, with a 3 kV one-minute power frequency withstand. Push-in control terminals take 0.2...2.5 mm² solid or stranded conductor without a ferrule, 0.25...2.5 mm² flexible conductor with a ferrule, or two conductors of 0.5...1.0 mm² with ferrules. Dimensions 26 x 26 x 15 mm (W x D x H), weight 0.05 kg, IP20 to IEC 60529, overvoltage category III, pollution degree 3 to IEC 60947-1, ambient air temperature -25...60 °C in operation. Conforms to EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1 and GB/T 14048.5. HS code 8536.90. Schneider reference: SAP 1200587632, code 82974666.

Manufacturer part number (MPN)

LA9G81

EAN / GTIN

3606481916044

HS code

8536.90

Sales unit

pcs

Package quantity

50 pcs

Range

TeSys

Device short name

LA9G

Product or component type

Connector

[Ue] rated operational voltage

<= 600 V 50/60 Hz

[Ie] rated operational current

10 A

Rated short-duration power frequency withstand voltage

3 kV 1 minute

Pin number

3

Quantity per set

Set of 1

Connections - terminals

Control circuit: push-in 1 0.2…2.5 mm² - cable stiffness: solid stranded without cable end; Control circuit: push-in 1 0.25…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: push-in 2 0.5…1.0 mm² with cable end

Height

15 mm

Width

26 mm

Depth

26 mm

Product weight

0.05 kg

Overvoltage category

III

Pollution degree

3 conforming to IEC 60947-1

Operating altitude

3000 m without derating; 5000 m with derating factor

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-60…80 °C

Standards

EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1; GB/T 14048.5

IP degree of protection

IP20 conforming to IEC 60529

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481916044
• SAP 1200587632
• Code 82974666
