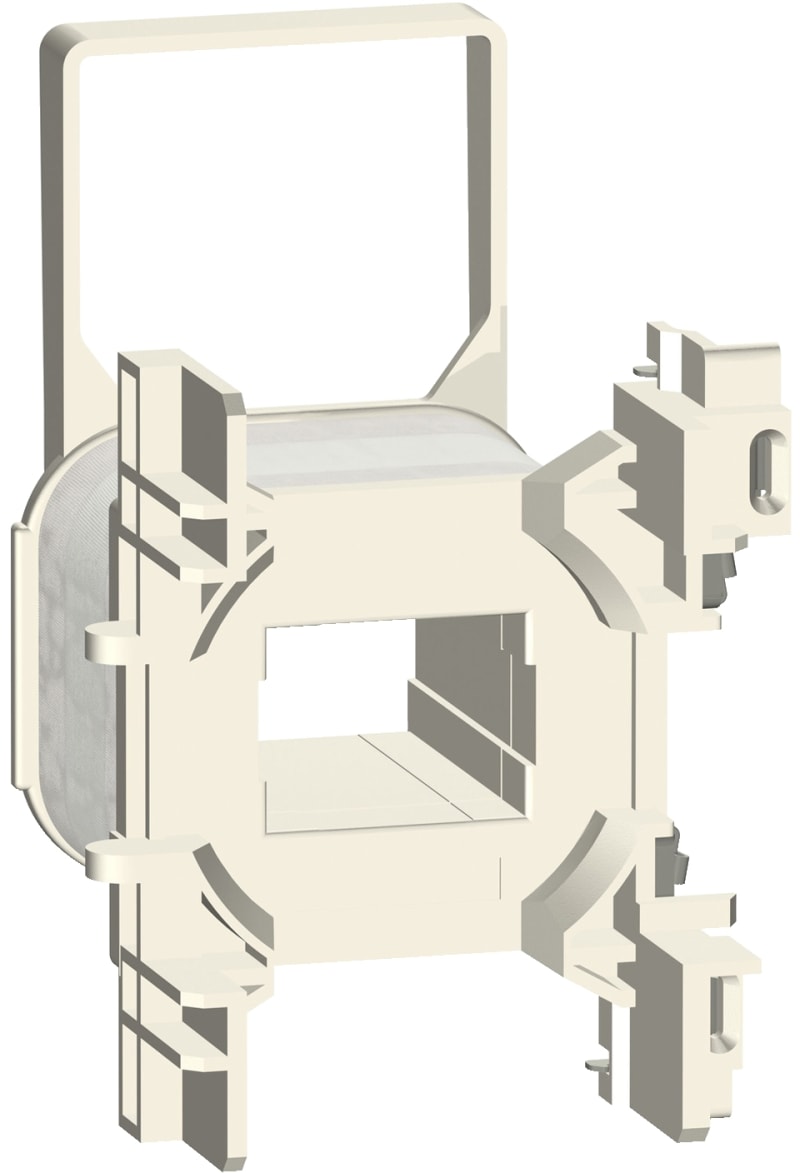

Coil D40A-D65A 110V 50/60Hz

Schneider Electric LXD3F7 Coil D40A-D65A 110V 50/60Hz.

Manufacturer part number (MPN)

LXD3F7

EAN / GTIN

3389119410359

Sales unit

pcs

Voltage

110 V

Frequency

50/60 Hz

Range

TeSys

Product or component type

Contactor coil

Device short name

LXD3

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

110 V AC 50/60 Hz

Average resistance

42.28 Ohm at 20 °C

Inductance of closed circuit

2.5 H

Product compatibility

LC1D40A...D65A; LC1DT60A; LC1DT80A

Mechanical durability

6 Mcycles

Maximum operating rate

3600 cyc/h 60 °C

Coil technology

Without built-in suppressor module

Control circuit voltage limits

Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)

Inrush power in VA

160 VA 60 Hz cos phi 0.75 (at 20 °C); 160 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in VA

15 VA 60 Hz cos phi 0.3 (at 20 °C); 15 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

4…5 W at 50/60 Hz

Ambient air temperature for operation

-5…60 °C

Product weight

0.07 kg

Number of Units in Package 1

1

Number of Units in Package 2

30

Country of origin

FR

Warranty (in months)

18

Rated control supply voltage AC 50 Hz

110 V

Rated control supply voltage AC 60 Hz

110 V

Voltage type for actuating

AC

HS Code

8504.50
