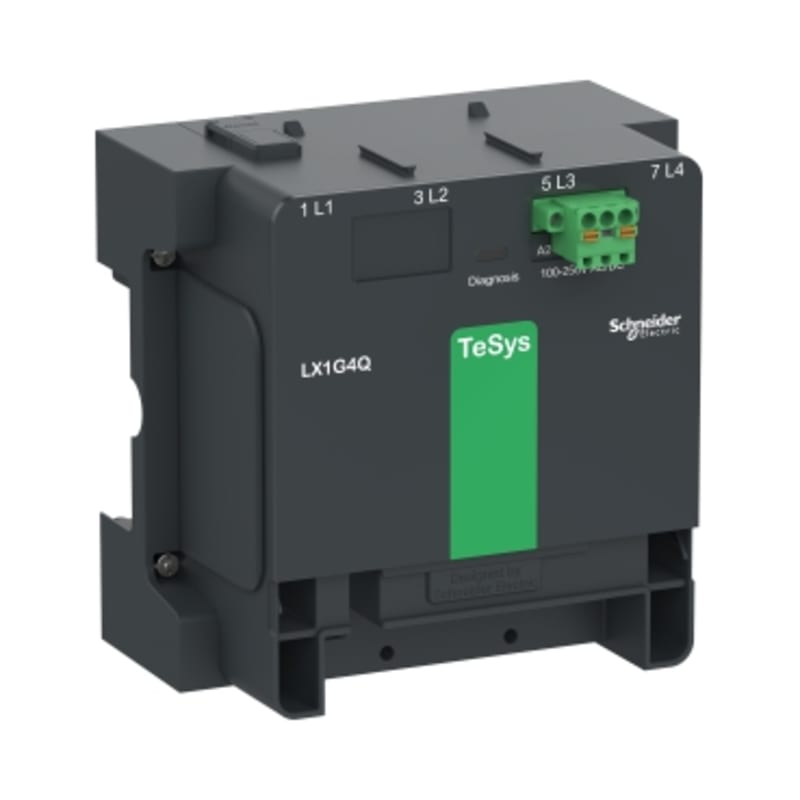

Coil 48-130V Std 4P G115-225

Schneider Electric LX1G4QEHEN Coil 48-130V AC / DC for 4-pole TeSys G115 / 225, standard.

Manufacturer part number (MPN)

LX1G4QEHEN

EAN / GTIN

3606481946485

Sales unit

pcs

Package quantity

2 pcs

Number of poles

4P

Range

TeSys

Product or component type

Contactor coil

Device short name

LX1G

Poles description

4P

Range compatibility

TeSys G LX1G contactor coil

Product compatibility

LC1G115...225

[Uc] control circuit voltage

48...130 V AC/DC 50/60 Hz

Operating time

20...35 ms opening; 40...55 ms closing

Mechanical durability

5 Mcycles

Maximum operating rate

600 cyc/mn 60 °C

Coil technology

Built-in bidirectional peak limiting

Control circuit voltage limits

Operational: 0.8...1.1 Uc (at 60 °C); Drop-out: 0...0.45 Uc (at 60 °C)

Connections - terminals

Control circuit: push-in termination 1 cable(s) 0.2…2.5 mm² solid stranded without cable end sleeve 26 AWG...12 AWG; Control circuit: push-in termination 1 cable(s) 0.25…2.5 mm² flexible with cable end sleeve 24 AWG...14 AWG; Control circuit: push-in termination 2 cable(s) 0.5…1.0 mm² rigid or stranded with cable end sleeve 20 AWG...18 AWG

Inrush power in VA

630 VA at 120 V AC, 60 Hz

Inrush power in W

445.0 W DC

Hold-in power consumption in VA

15.6 VA at 120 V AC, 60 Hz

Hold-in power consumption in W

4.4 W for DC network

IP degree of protection

IP20 conforming to IEC 60529

Operating altitude

3000 m without derating; 5000 m with derating factor

Electromagnetic compatibility

EMC immunity conforming to IEC 60947-4-1; Emission tests criteria A conforming to IEC 60947-4-1; Immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3; Voltage dips and interruptions immunity test conforming to SEMI F47

Standards

EN/IEC 60947-4-1; UL 60947-4-1A; CSA C22.2 No 60947-4-1

Pollution degree

3 conforming to IEC 60947-1

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-60…80 °C

Permissible ambient air temperature around the device

-40…70 °C at Uc

Height

144.5 mm

Width

140.7 mm

Depth

94.0 mm

Quantity per set

1

Warranty (in months)

18

Voltage type for actuating

AC/DC

Country of origin

China

HS Code

8505.90

• EAN 3606481946485
• SAP 1200587799
• Code 82974735
