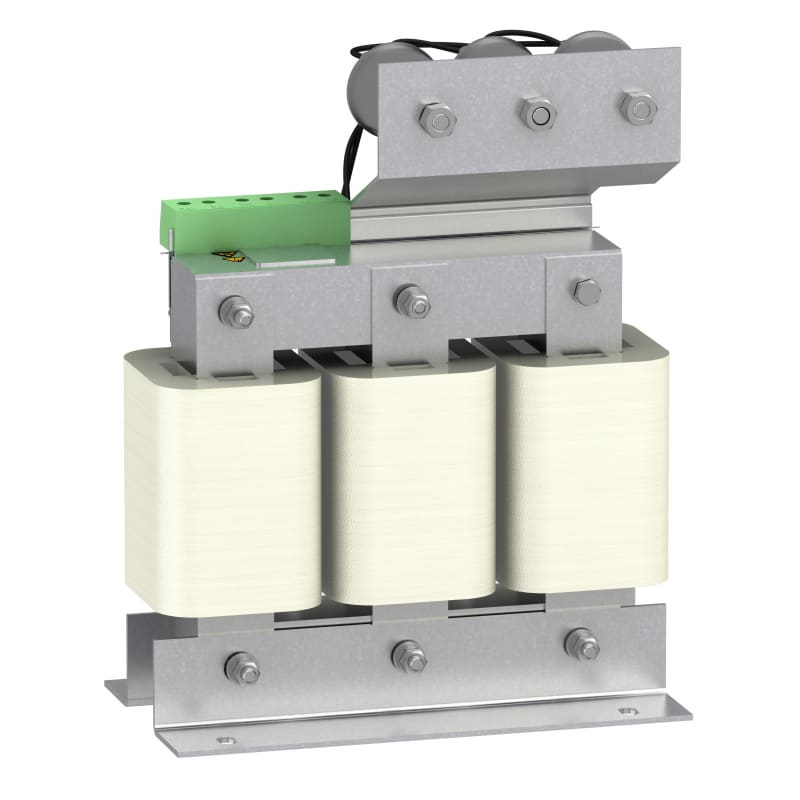

Sinusfilter 13A 690V 2,2-7,5kW IP00

Schneider Electric VW3A5215 Sinusfilter 13A 690V 2,2-7,5kW IP00.

Manufacturer part number (MPN)

VW3A5215

EAN / GTIN

3606480659805

Sales unit

pcs

Voltage

690 V

IP rating

IP00

Rated current

13 A

Product or component type

Sinus filter

Range compatibility

Altivar Process ATV600; Altivar Process ATV900

Product specific application

Output filter

[In] rated current

13 A

Thermal losses

170 W, 115 °C

Product compatibility

ATV630 variable speed drive wall mount - 2.2 kW, 500...690 V three phase; ATV630 variable speed drive wall mount - 3 kW, 500...690 V three phase; ATV630 variable speed drive wall mount - 4 kW, 500...690 V three phase; ATV630 variable speed drive wall mount - 5.5 kW, 500...690 V three phase; ATV630 variable speed drive wall mount - 7.5 kW, 500...690 V three phase; ATV930 variable speed drive wall mount - 2.2 kW, 500...690 V three phase; ATV930 variable speed drive wall mount - 3 kW, 500...690 V three phase; ATV930 variable speed drive wall mount - 4 kW, 500...690 V three phase; ATV930 variable speed drive wall mount - 5.5 kW, 500...690 V three phase; ATV930 variable speed drive wall mount - 7.5 kW, 500...690 V three phase; ATV630 variable speed drive wall mount, 3 hp, 600 V three phase; ATV630 variable speed drive wall mount, 5 hp, 600 V three phase; ATV630 variable speed drive wall mount, 7.5 hp, 600 V three phase; ATV630 variable speed drive wall mount, 10 hp, 600 V three phase; ATV930 variable speed drive wall mount, 3 hp, 600 V three phase; ATV930 variable speed drive wall mount, 5 hp, 600 V three phase; ATV930 variable speed drive wall mount, 7.5 hp, 600 V three phase; ATV930 variable speed drive wall mount, 10 hp, 600 V three phase

Switching frequency

2 kHz

Maximum output frequency

70 Hz

maximum permissible voltage

690 V AC

Electrical connection

Terminal

Max current

1.5 x nominal current (duration = 60 s)

Product weight

13.5 kg

IP degree of protection

IP00

Pollution degree

2 conforming to EN 50178

Vibration resistance

1 gn (f= 13…200 Hz) conforming to IEC 60068-2; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Relative humidity

0…95 %

Ambient air temperature for operation

-10…45 °C

Ambient air temperature for storage

-40…65 °C

Operating altitude

<= 1000 m without current derating; 1000...3000 m with current derating 1 % per 100 m

Standards

UL 508

Country of origin

CN

Warranty (in months)

18

Suitable as sinus filter

Yes

Suitable as du/dt-filter

No

Suitable as radio interference suppression filter

No

Suitable as audio frequency blockage

No

Number of poles, primary side

3

Rated clock frequency

2 kHz

Rated operating frequency

70 Hz

Max. rated operation voltage Ue

690 V

Rated current AC

13 A

Degree of protection (IP)

IP00

HS Code

8548.90

• EAN 3606480659805
• SAP 1200722456
• Code 83837187
