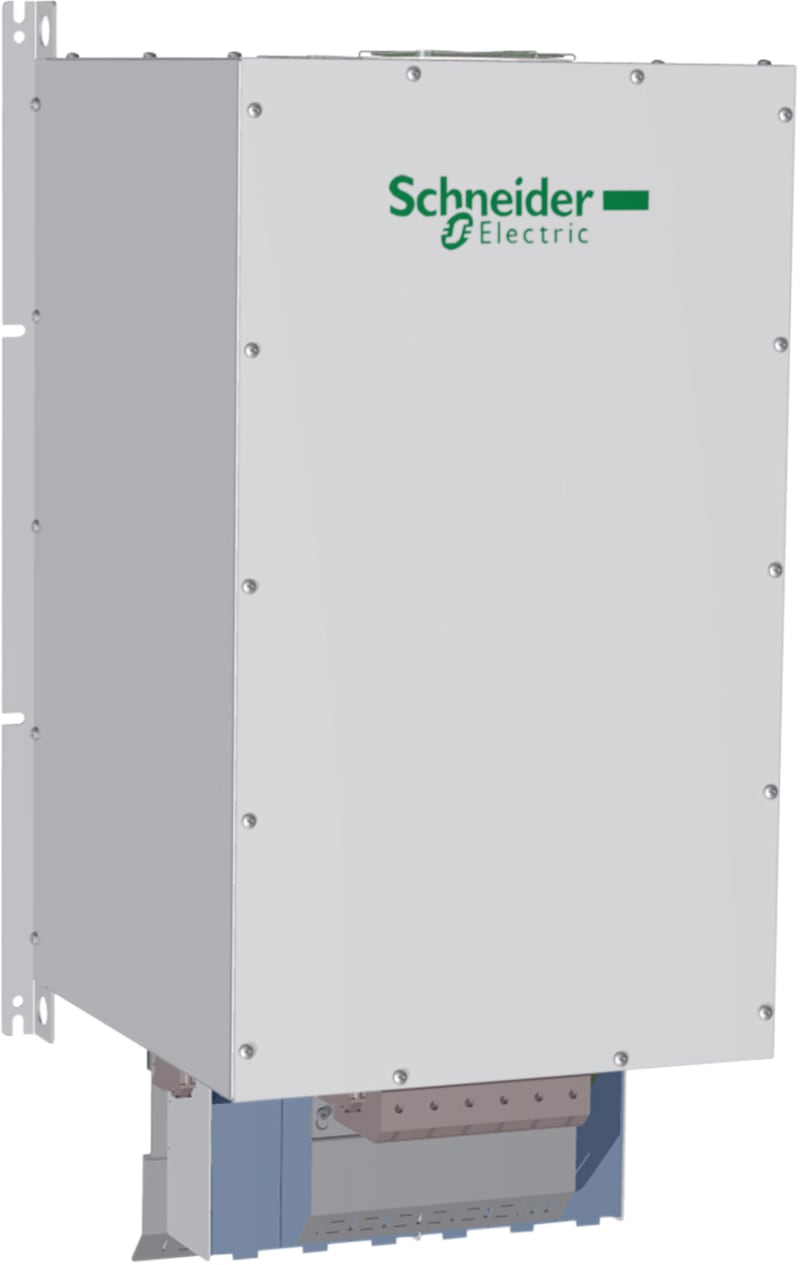

Passiva filter 262A 400V 50Hz

Schneider Electric VW3A46134 Passiva filter 262A 400V 50Hz 5%THDi.

Manufacturer part number (MPN)

VW3A46134

EAN / GTIN

3606480640254

Sales unit

pcs

Voltage

400 V

Frequency

50 Hz

Product or component type

Passive filter

Product specific application

Reduction of current harmonics

Range compatibility

Altivar 61; Altivar Process ATV600; Altivar 71; Altivar Process ATV900

[Us] rated supply voltage

400 V +/- 10 %

Supply frequency

50 Hz +/- 2 %

Quantity per drive

1 filter per drive for variable speed drive ATV630 wall mount, motor: 110 kW/150 hp; 1 filter per drive for variable speed drive ATV930 wall mount, motor: 110 kW/150 hp; 2 filters per drive for variable speed drive ATV61H motor: 280 kW/450 hp; 2 filters per drive for variable speed drive ATV71H motor: 280 kW/450 hp; 2 filters per drive for variable speed drive ATV61Q motor: 280 kW/450 hp

[In] rated current

252 A for input; 262 A for output

Network number of phases

3 phases

THDI

5 % for variable speed drive ATV61H motor: 280 kW/450 hp; 5 % for variable speed drive ATV71H motor: 280 kW/450 hp; 5 % for variable speed drive ATV61Q motor: 280 kW/450 hp; 5 % for variable speed drive ATV630 motor: 110 kW/150 hp; 5 % for variable speed drive ATV930 motor: 110 kW/150 hp

Max current

1.5 x nominal current (duration = 60 s)

Efficiency

98 %

Thermal losses

1288 W

Cos phi

1 (150 % of line current); 0.85 (75 % of line current); 0.99 (100 % of line current)

Electrical connection

A, B terminal, connection capacity: 2.5 mm²; X1-1...X2-3 terminal, connection capacity: 25...300 mm²

Electrical insulation class

Class F

Product weight

206 kg

IP degree of protection

IP20; IP55 (enclosure mounting)

Vibration resistance

2 mm peak to peak (f= 5…13.2 Hz) conforming to IEC 60068-2-6; 0.7 gn (f= 13.2…150 Hz) conforming to IEC 60068-2-6

Relative humidity

5…85 % without condensation

Ambient air temperature for operation

45…60 °C (with current derating 3 % per °C); 5…45 °C (without current derating)

Ambient air temperature for storage

-25…55 °C storage in original packaging; -25…65 °C during transport

Operating altitude

1000...4000 m with current derating 5 % per 1000 m

Standards

G5/4 engineering recommendation; IEC 61000-2-2; IEC 61000-3-4; IEC 61000-3-2; IEC 61000-2-4; IEC 61000-3-12

Country of origin

DE

Warranty (in months)

18

Suitable as sinus filter

No

Suitable as du/dt-filter

No

Suitable as radio interference suppression filter

No

Suitable as audio frequency blockage

No

Number of poles, primary side

3

Rated operating frequency

50–60 Hz

Max. rated operation voltage Ue

400 V

Rated current AC

252 A

Degree of protection (IP)

IP20

HS Code

8548.90

• EAN 3606480640254
• SAP 1200498398
• Code 82622439
