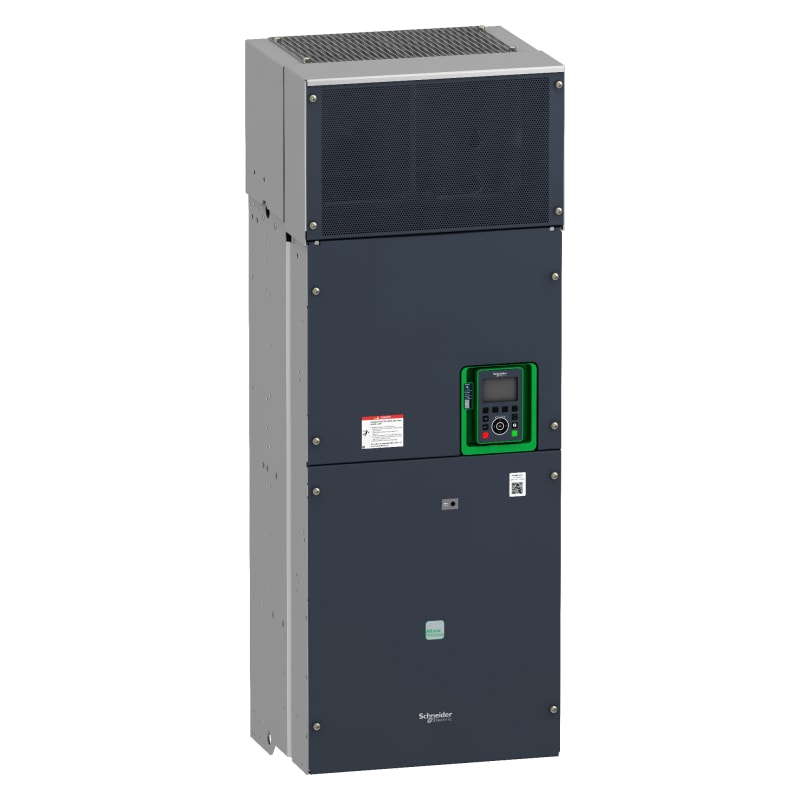

ATV630 IP00 220kW 400V DNV
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ATV630C22N4428 — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Variable-frequency drive for pump & ventilation IP00 220kW 400V marine sertificat.
Technical Specifications
- Manufacturer part number (MPN)
- ATV630C22N4428
- EAN / GTIN
- 3606481714817
- HS code
- 8504.40
- Sales unit
- pcs
- Voltage
- 400 V
- IP rating
- IP00
- Power
- 220 kW
- Width
- 440 mm
- Height
- 1190 mm
- Depth
- 377 mm
- Number of digital inputs
- 6
- Number of analogue inputs
- 3
- Number of analogue outputs
- 2
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-485
- 1
- Degree of protection (IP)
- IP00
- Mains frequency
- 50/60 Hz
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Max. output frequency
- 500 Hz
- Max. output at linear load at rated output voltage
- 220 kW
- Max. output at quadratic load at rated output voltage
- 220 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 5 %
- Max. output voltage
- 480 V
- Nominal output current I2N
- 427 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606481714817
- SAP 1200722450
- Code 83837207
Product Documentation
More from Schneider Electric
Schneider Electric
Bakelite Mounting Plate for PLA 1512 Enclosure
NSYPMB1512
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 160B, 25KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 80A, lugs/busbars C11B4TM080B
Schneider Electric
Schneider Electric variable speed drive ATV630 - 75KW/100HP - 380...480V - IP21/UL type 1 ATV630D75N4
Schneider Electric
Sign in grey plastic with text "O-In"
ZBYP2178C0
Schneider Electric
Schneider Electric Solid state modular relay, 12A, DC switching, input 4...32 V DC, output 1…100 V DC SSM1D312BD
Schneider Electric
Schneider Electric Trip unit MicroLogic 6.3E, ComPacT NSX400/630, 4 poles, basic and ground fault protections, energy meter, 400A rating C4046E400
Schneider Electric
Indicator lamp flush white (ZB4FV013)
Schneider Electric
Schneider Electric TeSys GV4 - magnetic circuit breaker - 25A 3P - with compression lug GV4L25N6
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ATV630C22N4428?
- ATV630C22N4428 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ATV630C22N4428.
- What is the HS code for ATV630C22N4428?
- The customs tariff (HS) code for ATV630C22N4428 is 8504.40.
- Who manufactures ATV630C22N4428?
- ATV630C22N4428 is a Schneider Electric product in the Drives & Controllers range.
- Is a datasheet available for ATV630C22N4428?
- Yes — the ATV630C22N4428 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ATV630C22N4428?
- The minimum order quantity is 1.
- Is ATV630C22N4428 available?
- Yes — ATV630C22N4428 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
