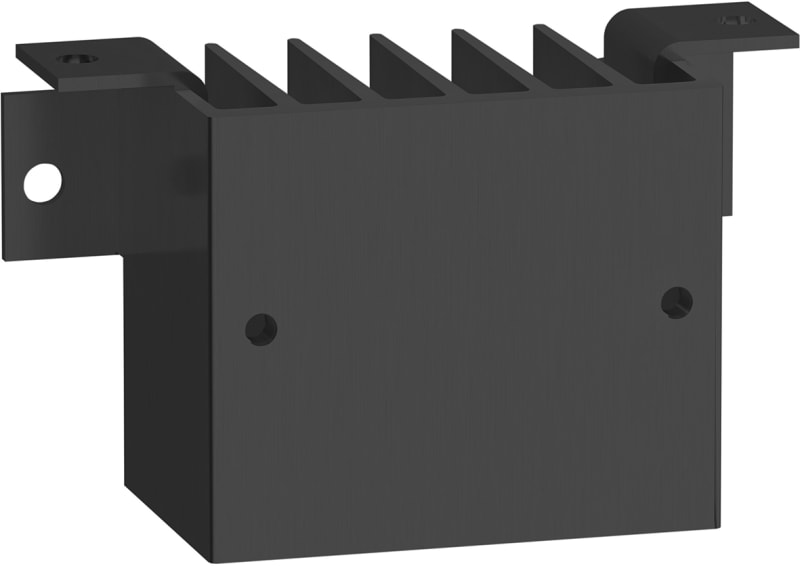

Schneider Electric SSRHP25 Heat Sink for Harmony Solid State Relay, 2.5 °C/W
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SSRHP25 is a panel-mount aluminium heat sink for a single Harmony solid state relay, providing 2.5 °C/W thermal resistance across 336 cm² of black-anodised surface. Overall 58.9 x 40.6 x 52.3 mm; fastens via two UNC 8-32 holes at 1.7 to 2.2 N·m. Supplied in packs of 24.
Technical Specifications
- Manufacturer part number (MPN)
- SSRHP25
- EAN / GTIN
- 3606480580208
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Range of product
- Harmony Solid State Relays
- Product or component type
- Heat sink
- Product compatibility
- 1 solid state relay SSR on panel
- Thermal resistance
- 2.5 °C/W
- Mounting support
- Panel
- Material
- Aluminium
- Surface finish
- Black anodized
- Surface and useful surface
- 336 cm²
- Number of mounting holes
- 2 with UNC 8-32 thread
- Tightening torque
- 1.7…2.2 N.m
- Sale per indivisible quantity
- 1
- Width
- 58.9 mm
- Height
- 40.6 mm
- Depth
- 52.3 mm
- Product weight
- 0.100 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 60
- Country of origin
- CN
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606480580208
- SAP 1000665068
- Code 8512636
Product Documentation
