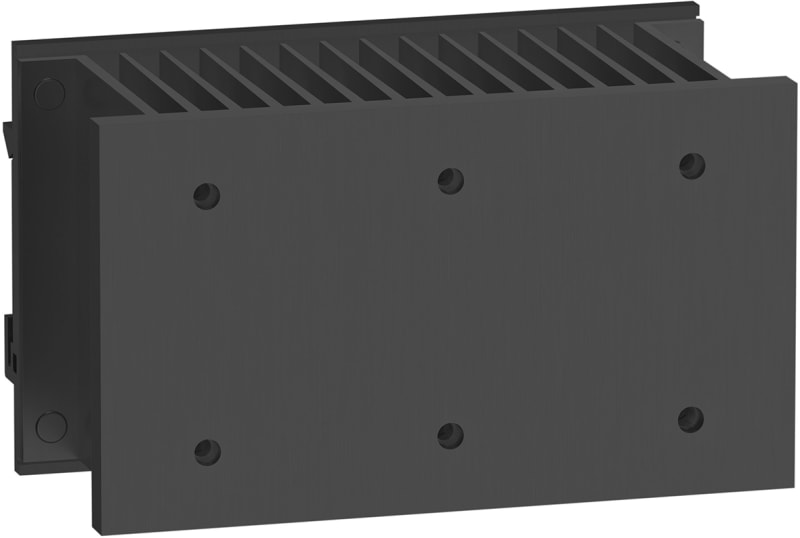

Schneider Electric SSRHD10 DIN-Rail Heat Sink for Harmony Solid State Relay
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SSRHD10 is a black anodised aluminium heat sink for one Harmony solid-state relay on DIN-rail mounting. Thermal resistance is 1 degree Celsius per watt across 1425 cm squared of surface. Overall dimensions are 76.2 by 132.1 by 60.2 mm at 0.630 kg. Six UNC 8-32 mounting holes with a recommended tightening torque of 1.7 to 2.2 Nm. Manufactured in China.
Technical Specifications
- Manufacturer part number (MPN)
- SSRHD10
- EAN / GTIN
- 3606480580246
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range of product
- Harmony Solid State Relays
- Product or component type
- Heat sink
- Product compatibility
- 1 solid state relay SSR on panel
- Thermal resistance
- 1 °C/W
- Mounting support
- DIN rail
- Material
- Aluminium
- Surface finish
- Black anodized
- Surface and useful surface
- 1425 cm²
- Number of mounting holes
- 6 with UNC 8-32 thread
- Tightening torque
- 1.7…2.2 N.m
- Sale per indivisible quantity
- 1
- Width
- 76.2 mm
- Height
- 132.1 mm
- Depth
- 60.2 mm
- Product weight
- 0.630 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 22
- Country of origin
- CN
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606480580246
- SAP 1000665069
- Code 8672808
