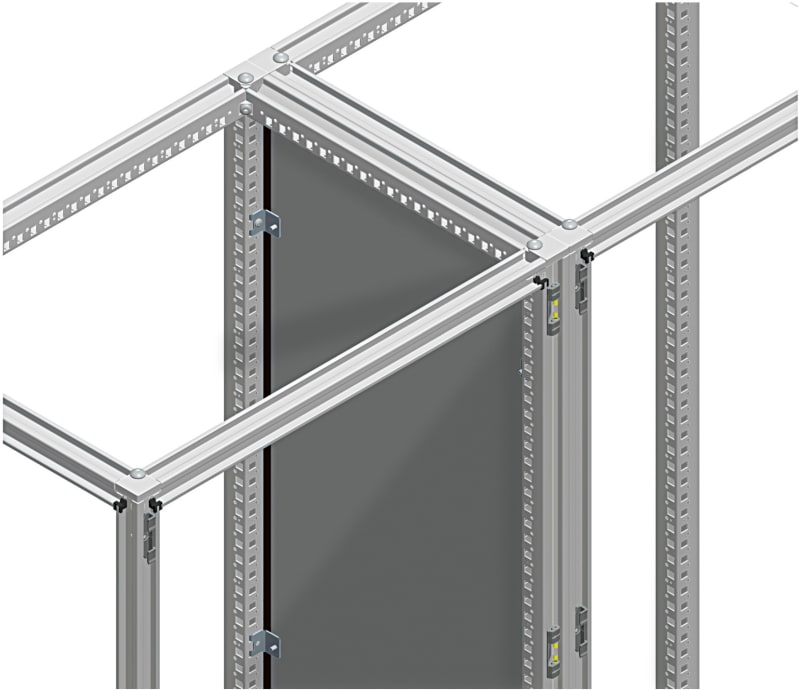

Schneider Electric PanelSet SF partition panel - galvanised steel - 1800X400 mm NSYPPS184
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPPS184 Spacial SF - Partition - Gulvksap - Galvanised steel - 1800x400 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPPS184
- EAN / GTIN
- 3606485127101
- Sales unit
- pcs
- Range
- PanelSeT
- Product or component type
- Partition
- Anwendung
- Multi-purpose
- Nennmaße des Gehäuses
- -
- Mounting support
- Structure of the enclosure
- Range compatibility
- PanelSeT PanelSeT SF
- Device composition
- fixing elements; 1 partition panel; 1 sealing gasket
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Height
- Nominal: 1800 mm
- Width
- Nominal: 400 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 31.000 cm
- Package 1 Length
- 172.000 cm
- Package 1 Weight
- 7.500 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 30
- Package 2 Height
- 52.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 252.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building depth
- 400 mm
- Surface finishing
- Galvanised
- With cable entry
- No
- With lock
- No
- Construction type
- Individual part
- For internal separation form 2a
- No
- For internal separation form 2b
- No
- For internal separation form 3a
- No
- For internal separation form 3b
- No
- For internal separation form 4a
- No
- For internal separation form 4b
- No
Standards & Compliance
- HS Code
- 7326.19
Cross References
- EAN 3606485127101
- SAP 1000089485
- Code 8581831
Product Documentation
